KUBOTA | Buy Direct | Order Online

Ref	Part #	Item	Price
010	3J036-52363	PLATE(SHUTTER)	$486.07
010	3J036-52363	PLATE(SHUTTER)	$486.07
020	01754-51230	BOLT, FLANGE	$4.01
020	01754-51225	BOLT, FLANGE	$3.83
030	01754-51025	BOLT, FLANGE ***	$3.20
040	3J036-52393	KLAMMER (KIT,PTO)	$78.53
040	3J036-52393	KLAMMER (KIT,PTO)	$78.53
050, 180	01754-50820	BOLT M8x1.25x20 mm ***	$3.11
060	01754-51020	BOLT M10x1.5x20 mm ***	$2.59
070	3J029-79214	COVER(FIRE WALL,RH)	$98.29
080, 096, 100	01754-50616	BOLT M6x1.0x16 mm ***	$1.55
090	3J029-79226	COVER(FIRE WALL,LH)	$25.95
095	3J080-35570	PIPE(DEF RELIEF)	$80.34
110	3J029-79374	PLATE	$45.73
110	3J029-79374	PLATE	$45.73
120, 140	01754-50816	BOLT M8x1.25x16 mm ***	$2.86
130	3J029-79383	PLATE	$90.23
130	3J029-79384	PLATE	$80.52
150	3J031-10270	PLATE, SHUTTER	$30.86
160	01754-50612	BOLT M6x1.0x12 mm ***	$1.17
170	3J029-79230	PIPE, COOLING SUPPORT	$172.71
190	3J027-83150	DAMPER BASE, COOLING	$21.09
200	3J099-02165	NUT EN 1664, M10, C8)	$0.99
210	3J099-34593	WASHER DIN 7093, M10	$0.99
220	01053-51040	BOLT M10x1.5x40 mm	$1.22

Ref: 010 Part #: 3J036-52363 Price: $486.07

Item: PLATE(SHUTTER)

QTY:

Ref: 010 Part #: 3J036-52363 Price: $486.07

Item: PLATE(SHUTTER)

QTY:

Ref: 020 Part #: 01754-51230 Price: $4.01

Item: BOLT, FLANGE

QTY:

Ref: 020 Part #: 01754-51225 Price: $3.83

Item: BOLT, FLANGE

QTY:

Ref: 030 Part #: 01754-51025 Price: $3.20

Item: BOLT, FLANGE ***

QTY:

Ref: 040 Part #: 3J036-52393 Price: $78.53

Item: KLAMMER (KIT,PTO)

QTY:

Ref: 040 Part #: 3J036-52393 Price: $78.53

Item: KLAMMER (KIT,PTO)

QTY:

Ref: 050180 Part #: 01754-50820 Price: $3.11

Item: BOLT M8x1.25x20 mm ***

QTY:

Ref: 060 Part #: 01754-51020 Price: $2.59

Item: BOLT M10x1.5x20 mm ***

QTY:

Ref: 070 Part #: 3J029-79214 Price: $98.29

Item: COVER(FIRE WALL,RH)

QTY:

Ref: 080096100 Part #: 01754-50616 Price: $1.55

Item: BOLT M6x1.0x16 mm ***

QTY:

Ref: 090 Part #: 3J029-79226 Price: $25.95

Item: COVER(FIRE WALL,LH)

QTY:

Ref: 095 Part #: 3J080-35570 Price: $80.34

Item: PIPE(DEF RELIEF)

QTY:

Ref: 110 Part #: 3J029-79374 Price: $45.73

Item: PLATE

QTY:

Ref: 110 Part #: 3J029-79374 Price: $45.73

Item: PLATE

QTY:

Ref: 120140 Part #: 01754-50816 Price: $2.86

Item: BOLT M8x1.25x16 mm ***

QTY:

Ref: 130 Part #: 3J029-79383 Price: $90.23

Item: PLATE

QTY:

Ref: 130 Part #: 3J029-79384 Price: $80.52

Item: PLATE

QTY:

Ref: 150 Part #: 3J031-10270 Price: $30.86

Item: PLATE, SHUTTER

QTY:

Ref: 160 Part #: 01754-50612 Price: $1.17

Item: BOLT M6x1.0x12 mm ***

QTY:

Ref: 170 Part #: 3J029-79230 Price: $172.71

Item: PIPE, COOLING SUPPORT

QTY:

Ref: 190 Part #: 3J027-83150 Price: $21.09

Item: DAMPER BASE, COOLING

QTY:

Ref: 200 Part #: 3J099-02165 Price: $0.99

Item: NUT EN 1664, M10, C8)

QTY:

Ref: 210 Part #: 3J099-34593 Price: $0.99

Item: WASHER DIN 7093, M10

QTY:

Ref: 220 Part #: 01053-51040 Price: $1.22

Item: BOLT M10x1.5x40 mm

QTY:

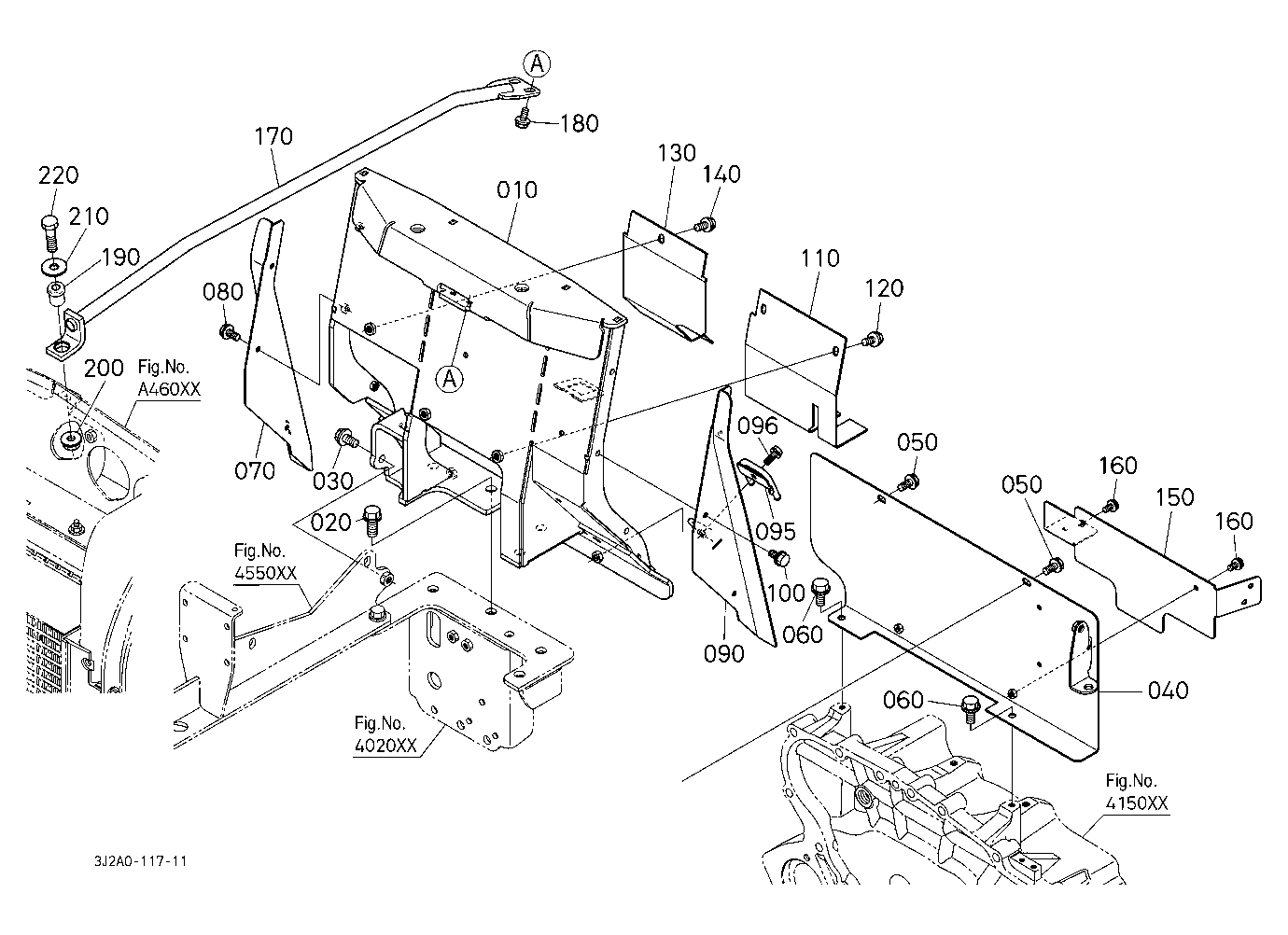

KUBOTA M7 152P KVT PARTS HOOD BONNET M17000 SHUTTER PLATE
