KUBOTA | Buy Direct | Order Online

Ref	Part #	Item	Price
010	3J031-14513	TANK,ASSY(FUEL) ***	$1,515.26
020	3J027-90970	O-RING FILLER, FUEL	$89.18
030	3J027-91240	NUT, INSERT	$20.46
040	3J027-92620	CAP, TANK FUEL	$62.09
050	3J027-92630	O-RING DRAIN, FUEL	$5.64
060	3J027-92640	SCREW, DRAIN	$19.17
070	3J031-33710	PLUG, TANK FUEL	$10.84
080	3J031-25470	COLLAR TANK, FUEL	$18.89
090	3J027-91463	WASHER(TANK,FUEL)	$19.80
100	3J099-27617	BOLT EN 1665, M8-60,C	$8.09
110	3J036-96070	COVER(FUEL,UREA,1)	Call for price
120	3J031-25322	COVER	$100.39
130, 150	01754-50816	BOLT M8x1.25x16 mm ***	$2.86
135	01125-50820	BOLT M8x1.25x20 mm ***	$0.99
140	3J036-91142	COVER(FUEL,UREA,2)	$70.50
160	3J032-89803	MAT(UREA TANK)	$80.33
170	3J070-13192	PLATE(LABEL,FUEL)	$44.00
180	3J080-39910	PLATE, DIESEL, US ***	$12.35
190	3J036-91030	PLATE(TANK,OUTER)	$1,728.83
200	3J036-91040	PLATE(TANK,INNER)	$1,728.83
210	3J036-91050	PACKING(OUTER)	$950.64
220	3J036-91060	PACKING(INNER)	$950.64
230	01754-50880	BOLT M8x1.25x80 mm ***	$4.78
240	04013-50080	WASHER, M8 PLAIN ***	$0.99

Ref: 010 Part #: 3J031-14513 Price: $1,515.26

Item: TANK,ASSY(FUEL) ***

QTY:

Ref: 020 Part #: 3J027-90970 Price: $89.18

Item: O-RING FILLER, FUEL

QTY:

Ref: 030 Part #: 3J027-91240 Price: $20.46

Item: NUT, INSERT

QTY:

Ref: 040 Part #: 3J027-92620 Price: $62.09

Item: CAP, TANK FUEL

QTY:

Ref: 050 Part #: 3J027-92630 Price: $5.64

Item: O-RING DRAIN, FUEL

QTY:

Ref: 060 Part #: 3J027-92640 Price: $19.17

Item: SCREW, DRAIN

QTY:

Ref: 070 Part #: 3J031-33710 Price: $10.84

Item: PLUG, TANK FUEL

QTY:

Ref: 080 Part #: 3J031-25470 Price: $18.89

Item: COLLAR TANK, FUEL

QTY:

Ref: 090 Part #: 3J027-91463 Price: $19.80

Item: WASHER(TANK,FUEL)

QTY:

Ref: 100 Part #: 3J099-27617 Price: $8.09

Item: BOLT EN 1665, M8-60,C

QTY:

Ref: 110 Part #: 3J036-96070 Price: Call for price

Item: COVER(FUEL,UREA,1)

QTY:

Ref: 120 Part #: 3J031-25322 Price: $100.39

Item: COVER

QTY:

Ref: 130150 Part #: 01754-50816 Price: $2.86

Item: BOLT M8x1.25x16 mm ***

QTY:

Ref: 135 Part #: 01125-50820 Price: $0.99

Item: BOLT M8x1.25x20 mm ***

QTY:

Ref: 140 Part #: 3J036-91142 Price: $70.50

Item: COVER(FUEL,UREA,2)

QTY:

Ref: 160 Part #: 3J032-89803 Price: $80.33

Item: MAT(UREA TANK)

QTY:

Ref: 170 Part #: 3J070-13192 Price: $44.00

Item: PLATE(LABEL,FUEL)

QTY:

Ref: 180 Part #: 3J080-39910 Price: $12.35

Item: PLATE, DIESEL, US ***

QTY:

Ref: 190 Part #: 3J036-91030 Price: $1,728.83

Item: PLATE(TANK,OUTER)

QTY:

Ref: 200 Part #: 3J036-91040 Price: $1,728.83

Item: PLATE(TANK,INNER)

QTY:

Ref: 210 Part #: 3J036-91050 Price: $950.64

Item: PACKING(OUTER)

QTY:

Ref: 220 Part #: 3J036-91060 Price: $950.64

Item: PACKING(INNER)

QTY:

Ref: 230 Part #: 01754-50880 Price: $4.78

Item: BOLT M8x1.25x80 mm ***

QTY:

Ref: 240 Part #: 04013-50080 Price: $0.99

Item: WASHER, M8 PLAIN ***

QTY:

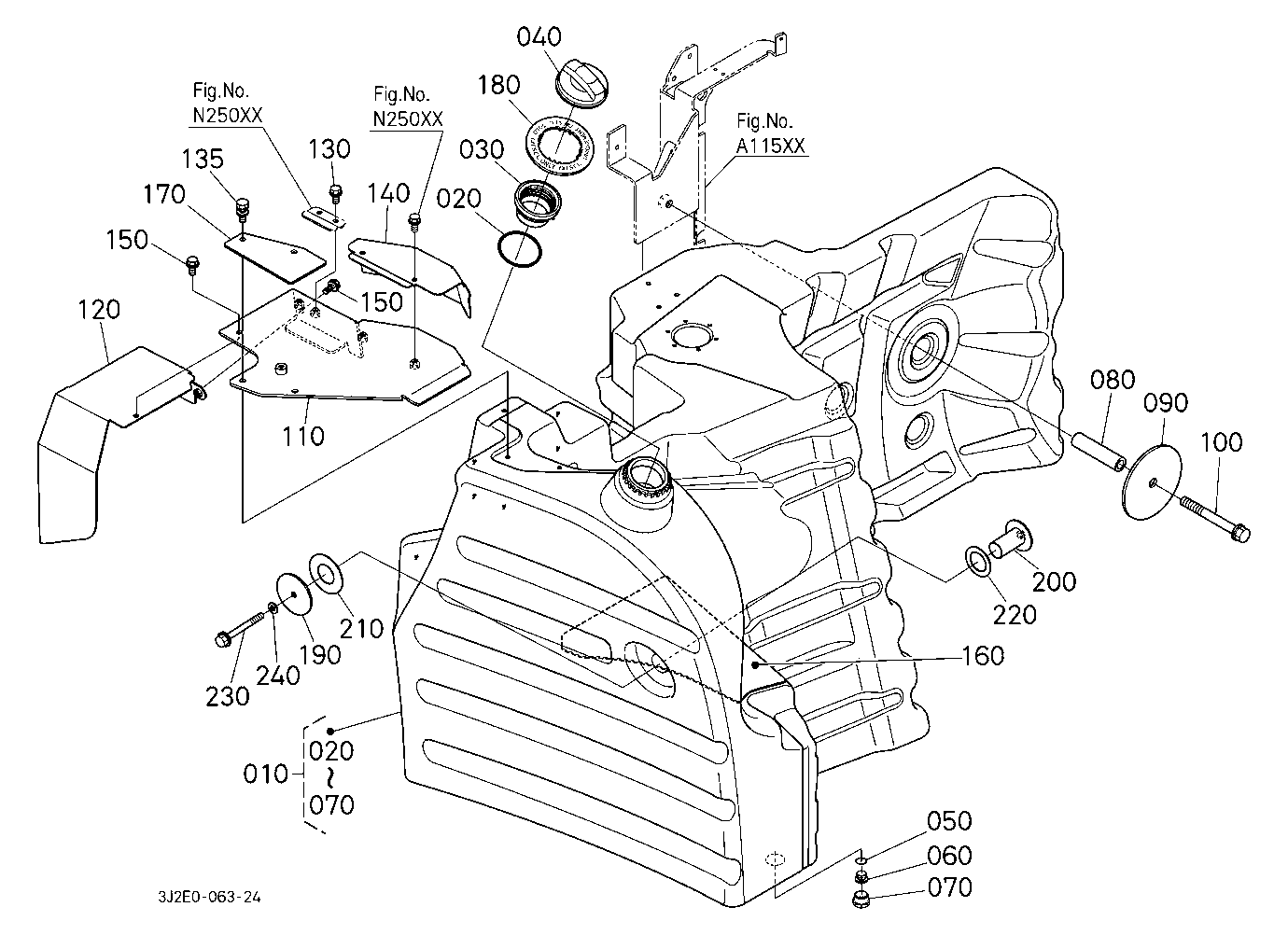

KUBOTA M7 152P PARTS FUEL SYSTEM A11001 FUEL TANK [NEW] SN FROM 10892
