KUBOTA | Buy Direct | Order Online

Ref	Part #	Item	Price
010	36530-91233	ROD, ASSY RH LIFT ***	$861.08
010	36919-91230	ASSY ROD, LIFT RH	$1,058.91
020	36330-91240	CASE, RH LIFT ROD	$232.78
030	36530-91280	SHAFT, COMP LIFT ROD	$243.85
040	08401-51106	BEARING THRUST BALL32/47	$24.10
050	36530-91200	PINION,ASSY LIFT ROD	$137.40
050	36919-91200	ASSY PINION, LFT ROD	$157.01
060	36330-91330	PINION, RH LIFT ROD	$98.79
070	36919-91390	SHAFT, HANDLE	$103.75
070	36530-91390	SHAFT, RH LIFT ROD ***	$20.24
080	05411-00520	PIN, SPRING	$0.99
090	04816-00180	O-RING	$1.32
100	33740-91300	SLEEVE, LT. ROD COMP *****	$115.50
110	01133-51030	BOLT M10x1.25x30 mm *	$1.68
120	06613-20010	NIPPLE, GREASE	$1.72
130	36530-91260	ROD, LIFT	$225.37
140	36330-91360	PLUG	$3.34
150	06613-10010	NIPPLE, GREASE	$2.34
160	36330-91510	JOINT, CROSS	$132.52
170	36330-91530	PIN, LIFT ROD	$27.81
180	05511-50535	PIN, SPLIT ***	$0.99
190	36530-91370	SUPPORT, HANDLE ***	$43.17
200	08511-01815	BUSHING (CREEP SPEED KIT)	$4.65
210	04811-10180	O-RING	$1.22
220	36330-91323	HANDLE, RH LIFT ROD	$31.27
230	05411-00525	PIN, SPRING *	$0.99
240	36330-91270	SPRING, HANDLE	$9.89
250	35595-91520	PIN, LIFT ROD	$42.26
260, 280	33251-91860	PIN, LOCK	$7.92
270	36530-91543	PIN, LIFT ROD LOWER *	$34.02
290	36919-92410	COLLAR, LIFT ROD	$10.85
300	36919-92402	SHAFT, LIFT HANDLE	$65.97
310	32530-16510	U-JOINT 16 ***	$128.81
320	05411-00625	PIN, SPRING	$0.99

Ref: 010 Part #: 36530-91233 Price: $861.08

Item: ROD, ASSY RH LIFT ***

QTY:

Ref: 010 Part #: 36919-91230 Price: $1,058.91

Item: ASSY ROD, LIFT RH

QTY:

Ref: 020 Part #: 36330-91240 Price: $232.78

Item: CASE, RH LIFT ROD

QTY:

Ref: 030 Part #: 36530-91280 Price: $243.85

Item: SHAFT, COMP LIFT ROD

QTY:

Ref: 040 Part #: 08401-51106 Price: $24.10

Item: BEARING THRUST BALL32/47

QTY:

Ref: 050 Part #: 36530-91200 Price: $137.40

Item: PINION,ASSY LIFT ROD

QTY:

Ref: 050 Part #: 36919-91200 Price: $157.01

Item: ASSY PINION, LFT ROD

QTY:

Ref: 060 Part #: 36330-91330 Price: $98.79

Item: PINION, RH LIFT ROD

QTY:

Ref: 070 Part #: 36919-91390 Price: $103.75

Item: SHAFT, HANDLE

QTY:

Ref: 070 Part #: 36530-91390 Price: $20.24

Item: SHAFT, RH LIFT ROD ***

QTY:

Ref: 080 Part #: 05411-00520 Price: $0.99

Item: PIN, SPRING

QTY:

Ref: 090 Part #: 04816-00180 Price: $1.32

Item: O-RING

QTY:

Ref: 100 Part #: 33740-91300 Price: $115.50

Item: SLEEVE, LT. ROD COMP *****

QTY:

Ref: 110 Part #: 01133-51030 Price: $1.68

Item: BOLT M10x1.25x30 mm *

QTY:

Ref: 120 Part #: 06613-20010 Price: $1.72

Item: NIPPLE, GREASE

QTY:

Ref: 130 Part #: 36530-91260 Price: $225.37

Item: ROD, LIFT

QTY:

Ref: 140 Part #: 36330-91360 Price: $3.34

Item: PLUG

QTY:

Ref: 150 Part #: 06613-10010 Price: $2.34

Item: NIPPLE, GREASE

QTY:

Ref: 160 Part #: 36330-91510 Price: $132.52

Item: JOINT, CROSS

QTY:

Ref: 170 Part #: 36330-91530 Price: $27.81

Item: PIN, LIFT ROD

QTY:

Ref: 180 Part #: 05511-50535 Price: $0.99

Item: PIN, SPLIT ***

QTY:

Ref: 190 Part #: 36530-91370 Price: $43.17

Item: SUPPORT, HANDLE ***

QTY:

Ref: 200 Part #: 08511-01815 Price: $4.65

Item: BUSHING (CREEP SPEED KIT)

QTY:

Ref: 210 Part #: 04811-10180 Price: $1.22

Item: O-RING

QTY:

Ref: 220 Part #: 36330-91323 Price: $31.27

Item: HANDLE, RH LIFT ROD

QTY:

Ref: 230 Part #: 05411-00525 Price: $0.99

Item: PIN, SPRING *

QTY:

Ref: 240 Part #: 36330-91270 Price: $9.89

Item: SPRING, HANDLE

QTY:

Ref: 250 Part #: 35595-91520 Price: $42.26

Item: PIN, LIFT ROD

QTY:

Ref: 260280 Part #: 33251-91860 Price: $7.92

Item: PIN, LOCK

QTY:

Ref: 270 Part #: 36530-91543 Price: $34.02

Item: PIN, LIFT ROD LOWER *

QTY:

Ref: 290 Part #: 36919-92410 Price: $10.85

Item: COLLAR, LIFT ROD

QTY:

Ref: 300 Part #: 36919-92402 Price: $65.97

Item: SHAFT, LIFT HANDLE

QTY:

Ref: 310 Part #: 32530-16510 Price: $128.81

Item: U-JOINT 16 ***

QTY:

Ref: 320 Part #: 05411-00625 Price: $0.99

Item: PIN, SPRING

QTY:

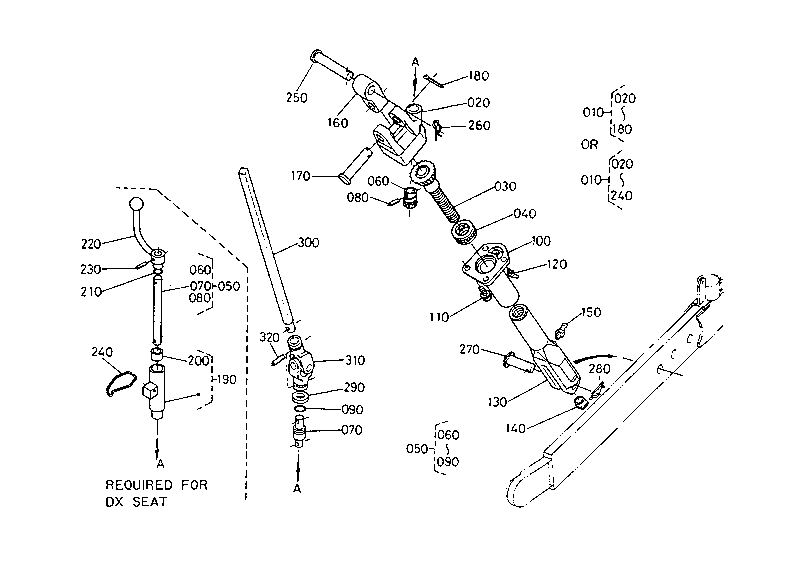

KUBOTA M7950 CAB PARTS HYDRAULIC SYSTEM T14500 LIFT ROD RH
