Ref	Part #	Item	Price
010	36530-28103	ASSY SHAFT,FIRST ***	$703.47
020	33251-28640	BUSHING	$56.33
030	36730-24330	SEAL, 1ST SHAFT	$25.90
040	36530-28516	BEARING, COMP. CASE	$233.15
050	01513-50828	STUD	$0.99
060	04512-50080	WASHER, SPRING ***	$0.99
070	02114-50080	NUT, HEX M8-1.25 4T ***	$0.99
080	36730-24650	SEAL, OIL	$12.76
090	04811-50900	O RING	$3.94
100	36730-28050	CIR-CLIP, EXTERNAL	$11.63
110	08101-06209	BEARING,BALL RADIAL 45/85	$24.91
120	35880-28240	GEAR 30	$280.43
130	35880-28430	COLLAR	$69.35
140	35860-28230	GEAR 25	$366.45
150	36530-28250	GEAR 16, BACK DRIVE	$155.21
160	35820-28450	COLLAR	$57.45
170	35822-28220	GEAR,SPUR 22 ***	$95.42
180	35820-28440	COLLAR	$18.67
190	36330-28180	COLLAR	$11.83
200	35880-28322	BRGBALL RADIAL40/100	$92.72
210	36330-28410	SHIM, 0.3MM	$4.36
210	36330-28420	SHIM, 0.2MM	$2.17
220	36730-28043	CIR-CLIP (CREEP KIT COMPONENT)**	$9.14
230	36602-23430	BEARING, BALL RADIAL 40/80	$47.04

Ref: 010 Part #: 36530-28103 Price: $703.47

Item: ASSY SHAFT,FIRST ***

QTY:

Ref: 020 Part #: 33251-28640 Price: $56.33

Item: BUSHING

QTY:

Ref: 030 Part #: 36730-24330 Price: $25.90

Item: SEAL, 1ST SHAFT

QTY:

Ref: 040 Part #: 36530-28516 Price: $233.15

Item: BEARING, COMP. CASE

QTY:

Ref: 050 Part #: 01513-50828 Price: $0.99

Item: STUD

QTY:

Ref: 060 Part #: 04512-50080 Price: $0.99

Item: WASHER, SPRING ***

QTY:

Ref: 070 Part #: 02114-50080 Price: $0.99

Item: NUT, HEX M8-1.25 4T ***

QTY:

Ref: 080 Part #: 36730-24650 Price: $12.76

Item: SEAL, OIL

QTY:

Ref: 090 Part #: 04811-50900 Price: $3.94

Item: O RING

QTY:

Ref: 100 Part #: 36730-28050 Price: $11.63

Item: CIR-CLIP, EXTERNAL

QTY:

Ref: 110 Part #: 08101-06209 Price: $24.91

Item: BEARING,BALL RADIAL 45/85

QTY:

Ref: 120 Part #: 35880-28240 Price: $280.43

Item: GEAR 30

QTY:

Ref: 130 Part #: 35880-28430 Price: $69.35

Item: COLLAR

QTY:

Ref: 140 Part #: 35860-28230 Price: $366.45

Item: GEAR 25

QTY:

Ref: 150 Part #: 36530-28250 Price: $155.21

Item: GEAR 16, BACK DRIVE

QTY:

Ref: 160 Part #: 35820-28450 Price: $57.45

Item: COLLAR

QTY:

Ref: 170 Part #: 35822-28220 Price: $95.42

Item: GEAR,SPUR 22 ***

QTY:

Ref: 180 Part #: 35820-28440 Price: $18.67

Item: COLLAR

QTY:

Ref: 190 Part #: 36330-28180 Price: $11.83

Item: COLLAR

QTY:

Ref: 200 Part #: 35880-28322 Price: $92.72

Item: BRGBALL RADIAL40/100

QTY:

Ref: 210 Part #: 36330-28410 Price: $4.36

Item: SHIM, 0.3MM

QTY:

Ref: 210 Part #: 36330-28420 Price: $2.17

Item: SHIM, 0.2MM

QTY:

Ref: 220 Part #: 36730-28043 Price: $9.14

Item: CIR-CLIP (CREEP KIT COMPONENT)**

QTY:

Ref: 230 Part #: 36602-23430 Price: $47.04

Item: BEARING, BALL RADIAL 40/80

QTY:

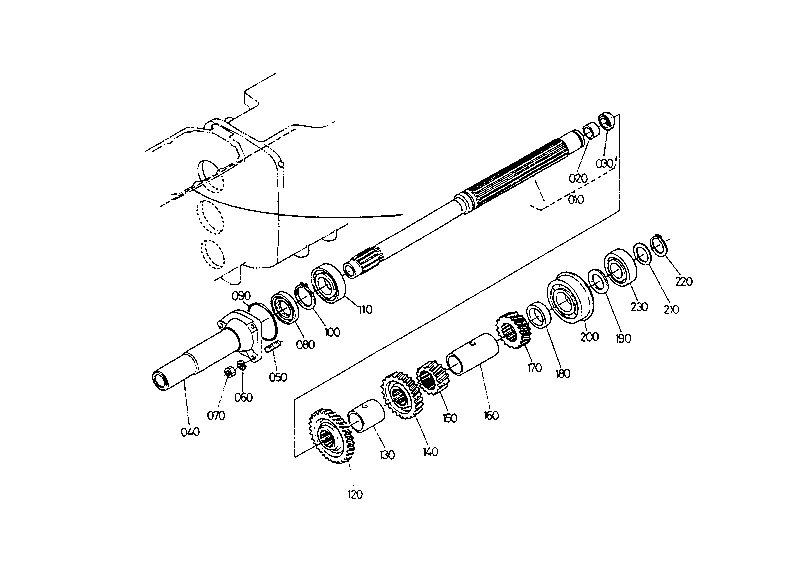

KUBOTA M7950 CAB PARTS TRANSMISSION T02300 FIRST SHAFT
