Ref	Part #	Item	Price
010	36910-27412	ASSY VALVE,CLUTCH ***	$1,334.22
020	04811-00070	O-RING***	$0.99
030, 220	06312-10010	PLUG ***	$2.72
040	36910-27422	GASKET	$6.03
050	01123-50840	BOLT M8x1.25x40 mm ***	$1.17
060	01123-50860	BOLT M8x1.25x60 mm ***	$1.44
070	01153-50865	BOLT M8x1.25x65 mm ***	$2.07
080	01153-50870	BOLT M8x1.25x70 mm ***	$2.21
090	04013-50080	WASHER, M8 PLAIN ***	$0.99
100, 150	04512-50080	WASHER, SPRING ***	$0.99
110	36730-27510	PUMP, OIL ASSY	$874.22
120	04811-10380	O-RING	$2.00
130	36530-27523	JOINT	$14.45
140	36530-27570	BOLT ***	$6.29
160	35861-27560	JOINT	$153.31
170	04817-00140	O-RING ***	$1.65
180	04724-00170	GASKET	$1.49
190	36910-27610	PRESSURE PIPE	$37.41
200	36530-27662	NIPPLE	$17.64
210	36910-27620	PIPE, PRESSURE ***	$48.67
230	36530-27632	UNION	$28.35
240	36730-27660	ELBOW ***	$31.00
250	36910-75130	MONITOR COMP SWITCH ***	$21.02
260	04724-00140	GASKET, PACKING	$1.32

Ref: 010 Part #: 36910-27412 Price: $1,334.22

Item: ASSY VALVE,CLUTCH ***

QTY:

Ref: 020 Part #: 04811-00070 Price: $0.99

Item: O-RING***

QTY:

Ref: 030220 Part #: 06312-10010 Price: $2.72

Item: PLUG ***

QTY:

Ref: 040 Part #: 36910-27422 Price: $6.03

Item: GASKET

QTY:

Ref: 050 Part #: 01123-50840 Price: $1.17

Item: BOLT M8x1.25x40 mm ***

QTY:

Ref: 060 Part #: 01123-50860 Price: $1.44

Item: BOLT M8x1.25x60 mm ***

QTY:

Ref: 070 Part #: 01153-50865 Price: $2.07

Item: BOLT M8x1.25x65 mm ***

QTY:

Ref: 080 Part #: 01153-50870 Price: $2.21

Item: BOLT M8x1.25x70 mm ***

QTY:

Ref: 090 Part #: 04013-50080 Price: $0.99

Item: WASHER, M8 PLAIN ***

QTY:

Ref: 100150 Part #: 04512-50080 Price: $0.99

Item: WASHER, SPRING ***

QTY:

Ref: 110 Part #: 36730-27510 Price: $874.22

Item: PUMP, OIL ASSY

QTY:

Ref: 120 Part #: 04811-10380 Price: $2.00

Item: O-RING

QTY:

Ref: 130 Part #: 36530-27523 Price: $14.45

Item: JOINT

QTY:

Ref: 140 Part #: 36530-27570 Price: $6.29

Item: BOLT ***

QTY:

Ref: 160 Part #: 35861-27560 Price: $153.31

Item: JOINT

QTY:

Ref: 170 Part #: 04817-00140 Price: $1.65

Item: O-RING ***

QTY:

Ref: 180 Part #: 04724-00170 Price: $1.49

Item: GASKET

QTY:

Ref: 190 Part #: 36910-27610 Price: $37.41

Item: PRESSURE PIPE

QTY:

Ref: 200 Part #: 36530-27662 Price: $17.64

Item: NIPPLE

QTY:

Ref: 210 Part #: 36910-27620 Price: $48.67

Item: PIPE, PRESSURE ***

QTY:

Ref: 230 Part #: 36530-27632 Price: $28.35

Item: UNION

QTY:

Ref: 240 Part #: 36730-27660 Price: $31.00

Item: ELBOW ***

QTY:

Ref: 250 Part #: 36910-75130 Price: $21.02

Item: MONITOR COMP SWITCH ***

QTY:

Ref: 260 Part #: 04724-00140 Price: $1.32

Item: GASKET, PACKING

QTY:

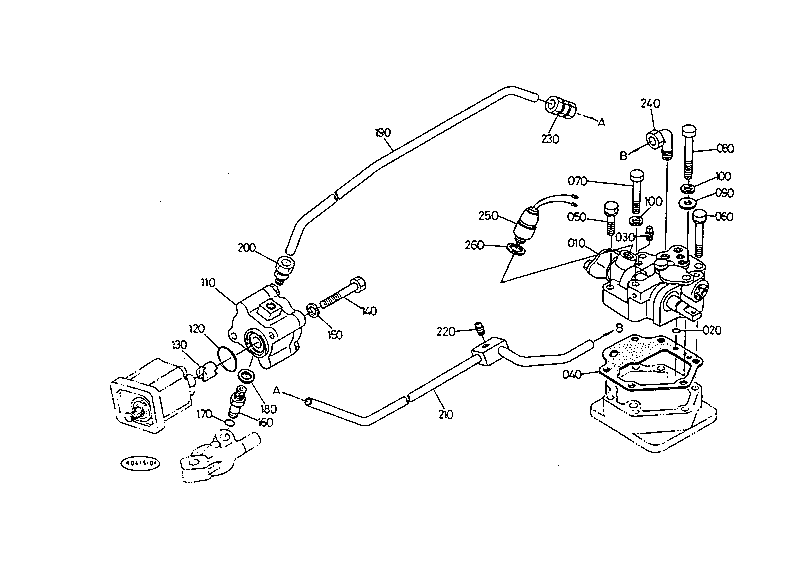

KUBOTA M7950 W PARTS TRANSMISSION T01301 PTO CLUTCH VALVE [CREEP]
