KUBOTA | Buy Direct | Order Online

Ref	Part #	Item	Price
010	3A151-48210	SHAFT,REAR AXLE	$2,215.48
020	3A151-48250	SEAL, OIL	$104.40
030	08101-06215	BEARING,BALL RADIAL 75/130 ***	$80.99
040	3A151-48270	CIR CLIP	$24.97
050	3A151-48440	BEARING BALL	$80.01
060	3A155-48340	SUPPORT, PLANE.GEAR *	$314.30
070	3A155-48320	GEAR,PLANETARY 26T *	$226.90
080	3F240-48360	SHAFT,PLANETARY *	$102.45
090	35593-48350	BEARING,NEEDLE ROLL	$32.85
100	36330-48370	COLLAR,THRUST 1.6mm	$10.64
105	05411-00825	PIN, SPRING	$1.00
105	05411-00828	PIN,SPRING *	$1.32
110	36500-48280	RETAINER,SUPPORT	$63.41
120	3A155-48310	GEAR 66T	$542.29
130	01779-01225	BOLT M12x1.25x25 mm	$5.17
140	3A151-65122	PLATE, BRAKE STOPPER	$181.16
150	3A151-48410	PIN	$11.02
160, 190	04816-08480	O RING	$4.42
160, 190	04816-08480	O RING	$4.42
170	3A151-48460	GEAR SHAFT,BRAKE RH	$471.50
180, 210	04612-00550	CIR-CLIP, EXTERNAL	$2.23
200	3A151-48470	GEAR SHAFT,BRAKE LH	$454.90

Ref: 010 Part #: 3A151-48210 Price: $2,215.48

Item: SHAFT,REAR AXLE

QTY:

Ref: 020 Part #: 3A151-48250 Price: $104.40

Item: SEAL, OIL

QTY:

Ref: 030 Part #: 08101-06215 Price: $80.99

Item: BEARING,BALL RADIAL 75/130 ***

QTY:

Ref: 040 Part #: 3A151-48270 Price: $24.97

Item: CIR CLIP

QTY:

Ref: 050 Part #: 3A151-48440 Price: $80.01

Item: BEARING BALL

QTY:

Ref: 060 Part #: 3A155-48340 Price: $314.30

Item: SUPPORT, PLANE.GEAR *

QTY:

Ref: 070 Part #: 3A155-48320 Price: $226.90

Item: GEAR,PLANETARY 26T *

QTY:

Ref: 080 Part #: 3F240-48360 Price: $102.45

Item: SHAFT,PLANETARY *

QTY:

Ref: 090 Part #: 35593-48350 Price: $32.85

Item: BEARING,NEEDLE ROLL

QTY:

Ref: 100 Part #: 36330-48370 Price: $10.64

Item: COLLAR,THRUST 1.6mm

QTY:

Ref: 105 Part #: 05411-00825 Price: $1.00

Item: PIN, SPRING

QTY:

Ref: 105 Part #: 05411-00828 Price: $1.32

Item: PIN,SPRING *

QTY:

Ref: 110 Part #: 36500-48280 Price: $63.41

Item: RETAINER,SUPPORT

QTY:

Ref: 120 Part #: 3A155-48310 Price: $542.29

Item: GEAR 66T

QTY:

Ref: 130 Part #: 01779-01225 Price: $5.17

Item: BOLT M12x1.25x25 mm

QTY:

Ref: 140 Part #: 3A151-65122 Price: $181.16

Item: PLATE, BRAKE STOPPER

QTY:

Ref: 150 Part #: 3A151-48410 Price: $11.02

Item: PIN

QTY:

Ref: 160190 Part #: 04816-08480 Price: $4.42

Item: O RING

QTY:

Ref: 160190 Part #: 04816-08480 Price: $4.42

Item: O RING

QTY:

Ref: 170 Part #: 3A151-48460 Price: $471.50

Item: GEAR SHAFT,BRAKE RH

QTY:

Ref: 180210 Part #: 04612-00550 Price: $2.23

Item: CIR-CLIP, EXTERNAL

QTY:

Ref: 200 Part #: 3A151-48470 Price: $454.90

Item: GEAR SHAFT,BRAKE LH

QTY:

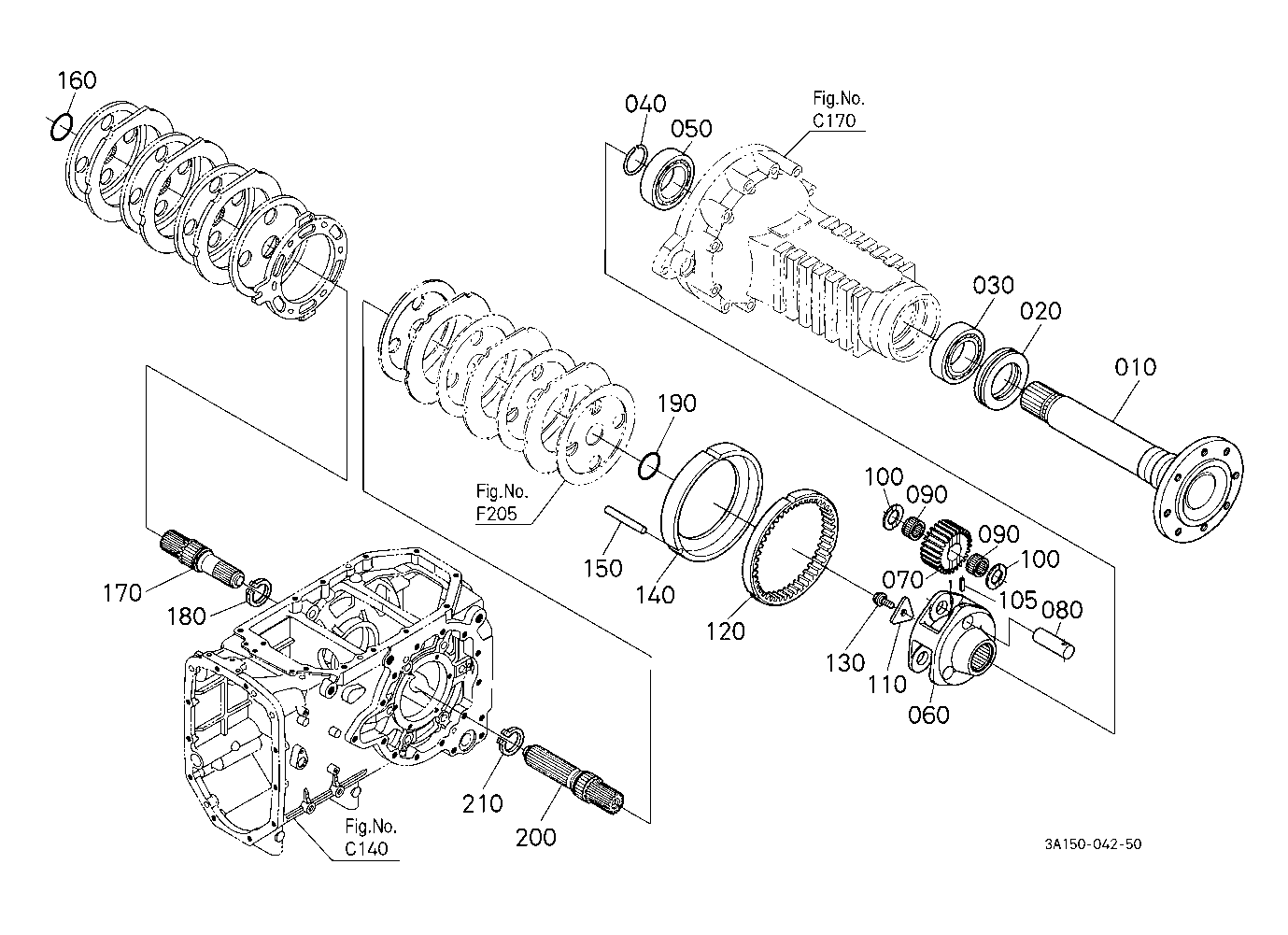

KUBOTA M8200HDC PARTS REAR AXLE BRAKE F20000 REAR AXLE
