Ref	Part #	Item	Price
010	33740-23502	SHAFT ASSY 1	$484.57
020	33251-28640	BUSHING	$56.33
030, 190	36730-28043	CIR-CLIP (CREEP KIT COMPONENT)**	$9.14
030, 190	36730-28043	CIR-CLIP (CREEP KIT COMPONENT)**	$9.14
040	32530-21770	HUB, CLUTCH	$152.21
050	38360-21750	CLUTCH	$202.97
055	32530-21700	ASSY SHIFTERS ***	$338.93
060	32430-67630	SYNCHRONIZER	$47.14
070	38360-21760	KEY, SYNCHRONIZER	$24.75
080	38360-21780	SPRING, KEY *	$3.19
090	33740-30280	GEAR	$511.76
090	33740-30282	GEAR 29	$1,399.09
100	33740-31840	RING, INNER	$56.13
110	36330-28663	COLLAR, THRUST	$25.18
120	33740-28010	COLLAR, FIRST SHAFT	$25.62
130	33740-28240	GEAR	$240.87
140	33740-28230	GEAR ***	$258.92
150	35880-28010	COLLAR	$67.32
160	33740-28210	GEAR	$148.21
170	33740-38490	COLLAR,FIRST SHAFT ***	$61.43
180	36710-28340	BEARING, BALL RADIAL 45/100	$78.30
200	36330-28410	SHIM, 0.3MM	$4.36
200	36330-28420	SHIM, 0.2MM	$2.17
200	33740-28440	SHIM	$3.23

Ref: 010 Part #: 33740-23502 Price: $484.57

Item: SHAFT ASSY 1

QTY:

Ref: 020 Part #: 33251-28640 Price: $56.33

Item: BUSHING

QTY:

Ref: 030190 Part #: 36730-28043 Price: $9.14

Item: CIR-CLIP (CREEP KIT COMPONENT)**

QTY:

Ref: 030190 Part #: 36730-28043 Price: $9.14

Item: CIR-CLIP (CREEP KIT COMPONENT)**

QTY:

Ref: 040 Part #: 32530-21770 Price: $152.21

Item: HUB, CLUTCH

QTY:

Ref: 050 Part #: 38360-21750 Price: $202.97

Item: CLUTCH

QTY:

Ref: 055 Part #: 32530-21700 Price: $338.93

Item: ASSY SHIFTERS ***

QTY:

Ref: 060 Part #: 32430-67630 Price: $47.14

Item: SYNCHRONIZER

QTY:

Ref: 070 Part #: 38360-21760 Price: $24.75

Item: KEY, SYNCHRONIZER

QTY:

Ref: 080 Part #: 38360-21780 Price: $3.19

Item: SPRING, KEY *

QTY:

Ref: 090 Part #: 33740-30280 Price: $511.76

Item: GEAR

QTY:

Ref: 090 Part #: 33740-30282 Price: $1,399.09

Item: GEAR 29

QTY:

Ref: 100 Part #: 33740-31840 Price: $56.13

Item: RING, INNER

QTY:

Ref: 110 Part #: 36330-28663 Price: $25.18

Item: COLLAR, THRUST

QTY:

Ref: 120 Part #: 33740-28010 Price: $25.62

Item: COLLAR, FIRST SHAFT

QTY:

Ref: 130 Part #: 33740-28240 Price: $240.87

Item: GEAR

QTY:

Ref: 140 Part #: 33740-28230 Price: $258.92

Item: GEAR ***

QTY:

Ref: 150 Part #: 35880-28010 Price: $67.32

Item: COLLAR

QTY:

Ref: 160 Part #: 33740-28210 Price: $148.21

Item: GEAR

QTY:

Ref: 170 Part #: 33740-38490 Price: $61.43

Item: COLLAR,FIRST SHAFT ***

QTY:

Ref: 180 Part #: 36710-28340 Price: $78.30

Item: BEARING, BALL RADIAL 45/100

QTY:

Ref: 200 Part #: 36330-28410 Price: $4.36

Item: SHIM, 0.3MM

QTY:

Ref: 200 Part #: 36330-28420 Price: $2.17

Item: SHIM, 0.2MM

QTY:

Ref: 200 Part #: 33740-28440 Price: $3.23

Item: SHIM

QTY:

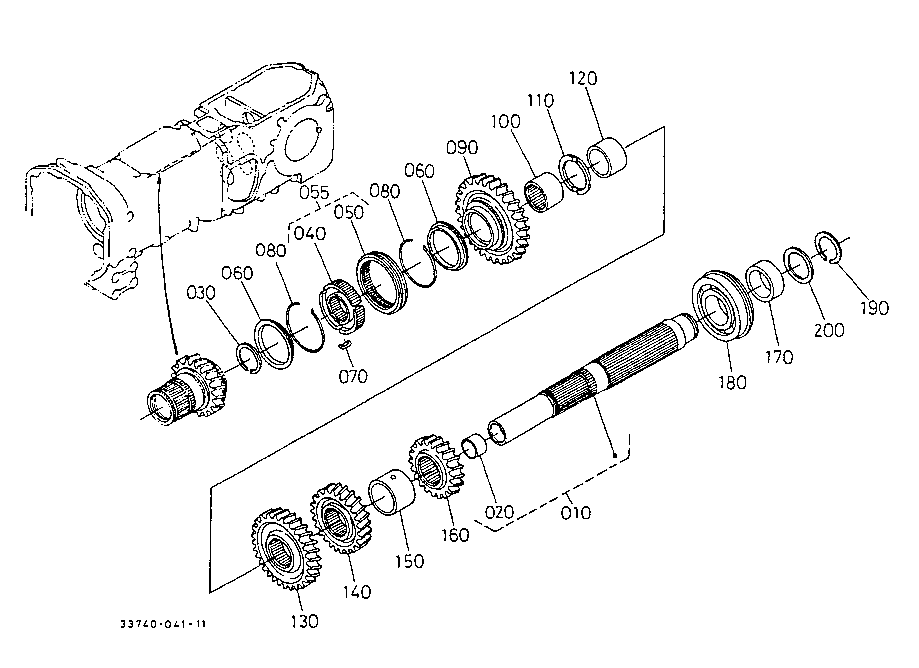

KUBOTA M8580DT C PARTS TRANSMISSION T07902 FIRST SHAFT (IC SHUTTLE)
