Ref	Part #	Item	Price
001	H1570-13110	VALVE(INLET)	$548.25
002	15441-13122	VALVE, EXHAUST	$43.81
003	15451-13240	SPRING, VALVE	$15.46
004	15451-13330	RETAINER, VALVE SPRG **	$14.47
005	15451-13410	WASHER,INLET VALVE	$58.86
006	15451-13420	WASHER, EXH.VALVE ***	$5.80
007	15451-13980	ASSY COLLET, VALVE SPRING (SET)	$7.51
008	15451-13280	CAP, VALVE	$35.05
009	15451-14052	SHAFT, ROCKER ARM ASSY.	$155.62
011	15451-96300	CAP, SEALING	$4.12
012	15451-14350	BRACKET, ROCKER ARM	$49.36
013	01053-50865	BOLT M8x1.25x65 mm	$1.17
014, 018	04012-50080	WASHER, PLAIN ***	$0.99
015, 019	04512-50080	WASHER, SPRING ***	$0.99
016	15451-91510	STUD (VALVE & ROCKER ARM)	$7.80
017	02056-50080	NUT, HEX M8-1.25, 6T ***	$1.54
020	15451-14420	SCREW, SET RCKR ARM	$7.29
021	15451-14430	WASHER, RCKR ARM SHF	$35.49
022	15451-14310	SPRING, RCKR ARM	$3.03
023	04612-00180	CIR-CLIP,EXTERNAL	$0.99
024	15451-14033	ASSY, ROCKER ARM	$87.66
026	15451-14980	BUSH, ROCKER ARM	$53.74
027	15451-14230	SCREW, VLV ADJ	$6.65
028	15451-92010	NUT	$3.74

Ref: 001 Part #: H1570-13110 Price: $548.25

Item: VALVE(INLET)

QTY:

Ref: 002 Part #: 15441-13122 Price: $43.81

Item: VALVE, EXHAUST

QTY:

Ref: 003 Part #: 15451-13240 Price: $15.46

Item: SPRING, VALVE

QTY:

Ref: 004 Part #: 15451-13330 Price: $14.47

Item: RETAINER, VALVE SPRG **

QTY:

Ref: 005 Part #: 15451-13410 Price: $58.86

Item: WASHER,INLET VALVE

QTY:

Ref: 006 Part #: 15451-13420 Price: $5.80

Item: WASHER, EXH.VALVE ***

QTY:

Ref: 007 Part #: 15451-13980 Price: $7.51

Item: ASSY COLLET, VALVE SPRING (SET)

QTY:

Ref: 008 Part #: 15451-13280 Price: $35.05

Item: CAP, VALVE

QTY:

Ref: 009 Part #: 15451-14052 Price: $155.62

Item: SHAFT, ROCKER ARM ASSY.

QTY:

Ref: 011 Part #: 15451-96300 Price: $4.12

Item: CAP, SEALING

QTY:

Ref: 012 Part #: 15451-14350 Price: $49.36

Item: BRACKET, ROCKER ARM

QTY:

Ref: 013 Part #: 01053-50865 Price: $1.17

Item: BOLT M8x1.25x65 mm

QTY:

Ref: 014018 Part #: 04012-50080 Price: $0.99

Item: WASHER, PLAIN ***

QTY:

Ref: 015019 Part #: 04512-50080 Price: $0.99

Item: WASHER, SPRING ***

QTY:

Ref: 016 Part #: 15451-91510 Price: $7.80

Item: STUD (VALVE & ROCKER ARM)

QTY:

Ref: 017 Part #: 02056-50080 Price: $1.54

Item: NUT, HEX M8-1.25, 6T ***

QTY:

Ref: 020 Part #: 15451-14420 Price: $7.29

Item: SCREW, SET RCKR ARM

QTY:

Ref: 021 Part #: 15451-14430 Price: $35.49

Item: WASHER, RCKR ARM SHF

QTY:

Ref: 022 Part #: 15451-14310 Price: $3.03

Item: SPRING, RCKR ARM

QTY:

Ref: 023 Part #: 04612-00180 Price: $0.99

Item: CIR-CLIP,EXTERNAL

QTY:

Ref: 024 Part #: 15451-14033 Price: $87.66

Item: ASSY, ROCKER ARM

QTY:

Ref: 026 Part #: 15451-14980 Price: $53.74

Item: BUSH, ROCKER ARM

QTY:

Ref: 027 Part #: 15451-14230 Price: $6.65

Item: SCREW, VLV ADJ

QTY:

Ref: 028 Part #: 15451-92010 Price: $3.74

Item: NUT

QTY:

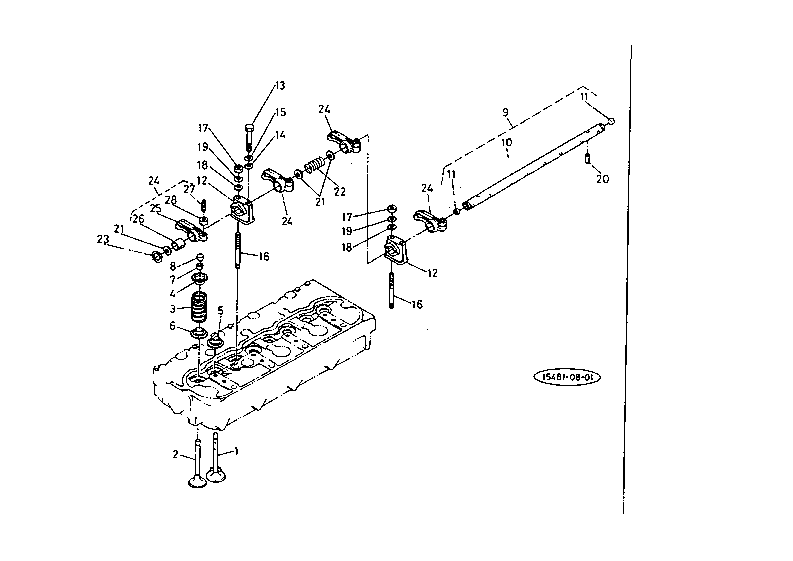

KUBOTA M8950 PARTS ENGINE T00900 VALVE AND ROCKER ARM
