Ref	Part #	Item	Price
001	15451-26200	COMP CASE	$577.37
003, 024	15451-96020	PLUG ***	$2.53
004, 011, 043	16541-24280	BUSHING	$51.24
005	15451-26400	ASSY SHAFT	$41.00
007	03410-50810	PLUG	$0.99
008	15451-24220	GEAR, IDLER	$875.17
009	16541-24070	COMP FLANGE, BALANCER (old type)	$89.25
012	01053-50825	BOLT M8x1.25x25 mm ***	$0.99
013, 039	04512-50080	WASHER, SPRING ***	$0.99
014	15451-24380	COLLAR 3 ***	$13.37
015, 044	15451-24360	COLLAR 1	$13.28
016	15451-24370	COLLAR 2	$19.91
017, 046	15451-95390	CIR-CLIP, EXTERNAL	$3.81
018	15451-26010	COMP BALANCER	$373.19
021	15451-26970	METAL	$22.20
022	15451-26300	ASSY SHAFT	$74.88
025	05411-00863	PIN, SPRING	$1.94
026	15451-26020	COMP GEAR	$91.42
028	15451-26980	METAL ***	$15.52
029	15451-26570	COLLAR 4 ***	$6.64
030, 036	15451-26580	COLLAR 5 ***	$8.83
031, 037	15451-95380	CIR-CLIP	$3.81
032	15451-26460	GEAR, BALANCER 3 ** *	$235.23
033	15451-26030	COMP SUPPORT	$50.57
035	15451-26990	METAL	$15.52
038	01053-50820	BOLT M8x1.25x20 mm ***	$0.99
040	15451-26470	GEAR, BALANCER ***	$147.20
041	15451-26040	COMP SUPPORT	$37.97
045	15451-26590	COLLAR 6 ***	$13.37
047	01073-51235	BOLT M12x1.25x35 mm * *	$1.55
048	04512-50120	WASHER, SPRING LOCK ***	$1.70
049	15451-26550	RING	$88.46
050	15451-33040	ASSY PIPE ***	$10.72
053	15451-03450	BOLT, CYL HEAD	$43.29
054	15451-03540	WASHER	$6.35
055	15451-26050	COMP GEAR	$179.18

Ref: 001 Part #: 15451-26200 Price: $577.37

Item: COMP CASE

QTY:

Ref: 003024 Part #: 15451-96020 Price: $2.53

Item: PLUG ***

QTY:

Ref: 004011043 Part #: 16541-24280 Price: $51.24

Item: BUSHING

QTY:

Ref: 005 Part #: 15451-26400 Price: $41.00

Item: ASSY SHAFT

QTY:

Ref: 007 Part #: 03410-50810 Price: $0.99

Item: PLUG

QTY:

Ref: 008 Part #: 15451-24220 Price: $875.17

Item: GEAR, IDLER

QTY:

Ref: 009 Part #: 16541-24070 Price: $89.25

Item: COMP FLANGE, BALANCER (old type)

QTY:

Ref: 012 Part #: 01053-50825 Price: $0.99

Item: BOLT M8x1.25x25 mm ***

QTY:

Ref: 013039 Part #: 04512-50080 Price: $0.99

Item: WASHER, SPRING ***

QTY:

Ref: 014 Part #: 15451-24380 Price: $13.37

Item: COLLAR 3 ***

QTY:

Ref: 015044 Part #: 15451-24360 Price: $13.28

Item: COLLAR 1

QTY:

Ref: 016 Part #: 15451-24370 Price: $19.91

Item: COLLAR 2

QTY:

Ref: 017046 Part #: 15451-95390 Price: $3.81

Item: CIR-CLIP, EXTERNAL

QTY:

Ref: 018 Part #: 15451-26010 Price: $373.19

Item: COMP BALANCER

QTY:

Ref: 021 Part #: 15451-26970 Price: $22.20

Item: METAL

QTY:

Ref: 022 Part #: 15451-26300 Price: $74.88

Item: ASSY SHAFT

QTY:

Ref: 025 Part #: 05411-00863 Price: $1.94

Item: PIN, SPRING

QTY:

Ref: 026 Part #: 15451-26020 Price: $91.42

Item: COMP GEAR

QTY:

Ref: 028 Part #: 15451-26980 Price: $15.52

Item: METAL ***

QTY:

Ref: 029 Part #: 15451-26570 Price: $6.64

Item: COLLAR 4 ***

QTY:

Ref: 030036 Part #: 15451-26580 Price: $8.83

Item: COLLAR 5 ***

QTY:

Ref: 031037 Part #: 15451-95380 Price: $3.81

Item: CIR-CLIP

QTY:

Ref: 032 Part #: 15451-26460 Price: $235.23

Item: GEAR, BALANCER 3 ** *

QTY:

Ref: 033 Part #: 15451-26030 Price: $50.57

Item: COMP SUPPORT

QTY:

Ref: 035 Part #: 15451-26990 Price: $15.52

Item: METAL

QTY:

Ref: 038 Part #: 01053-50820 Price: $0.99

Item: BOLT M8x1.25x20 mm ***

QTY:

Ref: 040 Part #: 15451-26470 Price: $147.20

Item: GEAR, BALANCER ***

QTY:

Ref: 041 Part #: 15451-26040 Price: $37.97

Item: COMP SUPPORT

QTY:

Ref: 045 Part #: 15451-26590 Price: $13.37

Item: COLLAR 6 ***

QTY:

Ref: 047 Part #: 01073-51235 Price: $1.55

Item: BOLT M12x1.25x35 mm *** ***

QTY:

Ref: 048 Part #: 04512-50120 Price: $1.70

Item: WASHER, SPRING LOCK ***

QTY:

Ref: 049 Part #: 15451-26550 Price: $88.46

Item: RING

QTY:

Ref: 050 Part #: 15451-33040 Price: $10.72

Item: ASSY PIPE ***

QTY:

Ref: 053 Part #: 15451-03450 Price: $43.29

Item: BOLT, CYL HEAD

QTY:

Ref: 054 Part #: 15451-03540 Price: $6.35

Item: WASHER

QTY:

Ref: 055 Part #: 15451-26050 Price: $179.18

Item: COMP GEAR

QTY:

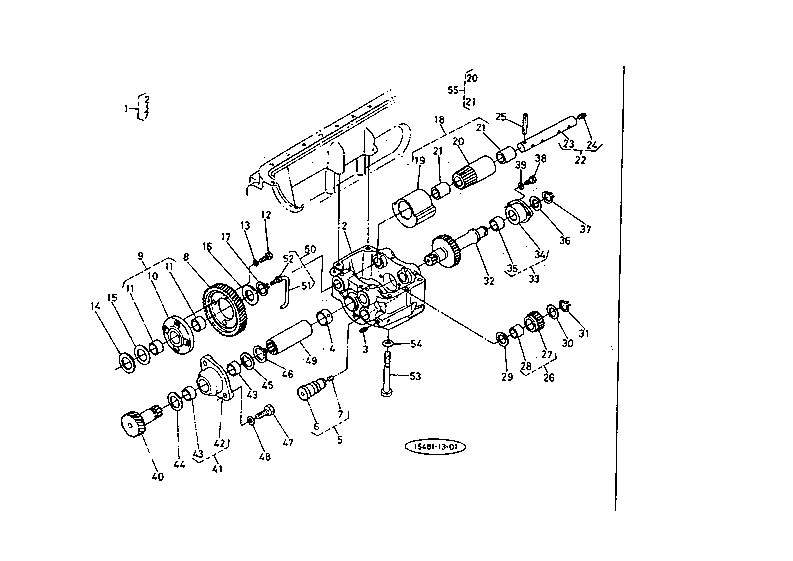

KUBOTA M8950 PARTS ENGINE T01400 BALANCER CASE
