Ref	Part #	Item	Price
010	36730-21900	MID CASE ASSY.***	$1,179.77
020	07715-00803	BALL	$0.99
030	05012-01325	PIN, STRAIGHT	$1.49
040	05012-01020	PIN, STRAIGHT	$1.00
050	36710-21322	GASKET	$29.07
055	06312-10010	PLUG ***	$2.72
060	35880-21590	STUD 2 ***	$11.36
070	01574-51240	STUD ***	$1.94
080	04512-50120	WASHER, SPRING LOCK ***	$1.70
090	02176-50120	NUT, HEX M12x1.25 ***	$0.99
100	01574-51275	BOLT	$4.80
110	01176-51245	BOLT M12x1.25x45 mm	$1.95
120	01176-51250	BOLT	$2.83
130	H3580-21510	OIL GAUGE	$134.17
140	35820-21520	PLUG	$3.34
150	35880-21553	GUIDE, OIL GAUGE	$96.70
160	76611-36230	JOINT ***	$39.75
170	04717-02150	WASHER, SEAL w/RUBBER	$2.37
180	36330-21450	COVER	$104.85
190	36330-21462	GASKET, SIDE COVER	$5.72
200	01133-51030	BOLT M10x1.25x30 mm *	$1.68
210	31321-38720	PLUG	$2.17

Ref: 010 Part #: 36730-21900 Price: $1,179.77

Item: MID CASE ASSY.***

QTY:

Ref: 020 Part #: 07715-00803 Price: $0.99

Item: BALL

QTY:

Ref: 030 Part #: 05012-01325 Price: $1.49

Item: PIN, STRAIGHT

QTY:

Ref: 040 Part #: 05012-01020 Price: $1.00

Item: PIN, STRAIGHT

QTY:

Ref: 050 Part #: 36710-21322 Price: $29.07

Item: GASKET

QTY:

Ref: 055 Part #: 06312-10010 Price: $2.72

Item: PLUG ***

QTY:

Ref: 060 Part #: 35880-21590 Price: $11.36

Item: STUD 2 ***

QTY:

Ref: 070 Part #: 01574-51240 Price: $1.94

Item: STUD ***

QTY:

Ref: 080 Part #: 04512-50120 Price: $1.70

Item: WASHER, SPRING LOCK ***

QTY:

Ref: 090 Part #: 02176-50120 Price: $0.99

Item: NUT, HEX M12x1.25 ***

QTY:

Ref: 100 Part #: 01574-51275 Price: $4.80

Item: BOLT

QTY:

Ref: 110 Part #: 01176-51245 Price: $1.95

Item: BOLT M12x1.25x45 mm

QTY:

Ref: 120 Part #: 01176-51250 Price: $2.83

Item: BOLT

QTY:

Ref: 130 Part #: H3580-21510 Price: $134.17

Item: OIL GAUGE

QTY:

Ref: 140 Part #: 35820-21520 Price: $3.34

Item: PLUG

QTY:

Ref: 150 Part #: 35880-21553 Price: $96.70

Item: GUIDE, OIL GAUGE

QTY:

Ref: 160 Part #: 76611-36230 Price: $39.75

Item: JOINT ***

QTY:

Ref: 170 Part #: 04717-02150 Price: $2.37

Item: WASHER, SEAL w/RUBBER

QTY:

Ref: 180 Part #: 36330-21450 Price: $104.85

Item: COVER

QTY:

Ref: 190 Part #: 36330-21462 Price: $5.72

Item: GASKET, SIDE COVER

QTY:

Ref: 200 Part #: 01133-51030 Price: $1.68

Item: BOLT M10x1.25x30 mm *

QTY:

Ref: 210 Part #: 31321-38720 Price: $2.17

Item: PLUG

QTY:

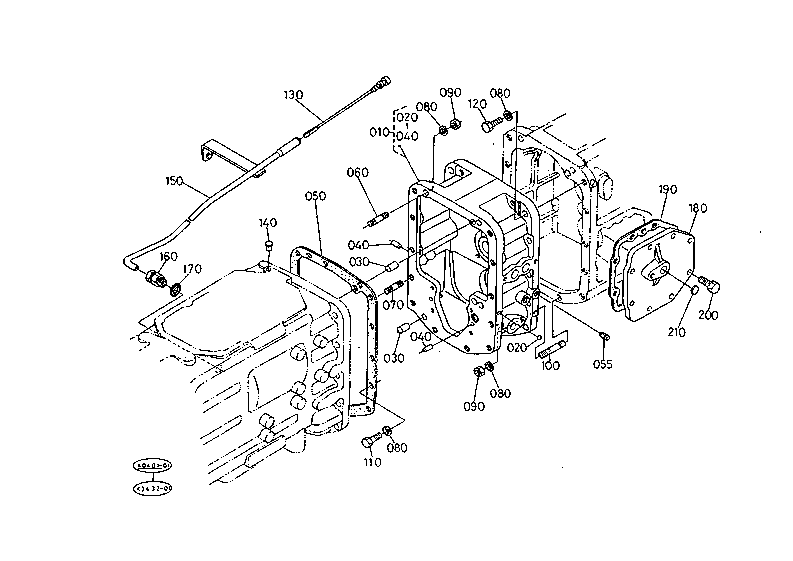

KUBOTA M8950 S PARTS CLUTCH T07600 MID CASE
