Ref	Part #	Item	Price
010	35880-48210	AXLE, REAR	$1,251.98
020	36910-48250	SEAL, OIL	$70.22
020	36530-48250	SEAL	$90.23
030	08101-06215	BEARING,BALL RADIAL 75/130 ***	$80.99
040	36500-48274	NUT	$132.27
050	04612-00700	CIR-CLIP,EXTERNAL	$5.41
060	08101-06214	BEARING,BALL RADIAL	$66.32
070	35880-48300	GEAR, PLANETARY ASSY	$2,836.70
080	3S503-48310	GEAR,INTERNAL	$786.50
090	36730-48340	SUPPORT, PLANETARY G	$481.80
100	36730-48362	PIN, PLANETARY GEAR ***	$142.35
110	35880-48320	PLANETARY GEAR	$435.57
120	36730-48350	BRG NDL ROLLER30/42 ***	$25.82
130	36330-48370	COLLAR,THRUST 1.6mm	$10.64
140	05411-00825	PIN, SPRING	$1.00
150	36730-48392	COLLAR	$9.30
160	36730-48450	PIN, STRAIGHT	$7.22
170	36500-48280	RETAINER,SUPPORT	$63.41
180	01133-51225	BOLT M12x1.25x25 mm ***	$1.44
190	H3580-48410	SHAFT, BRAKE RH	$1,683.57
200	35880-48420	SHAFT, BRAKE LH	$302.18
210	04612-00550	CIR-CLIP, EXTERNAL	$2.23
220	35880-49150	STUD	$16.42
230	35880-49170	NUT, REAR WHEEL	$14.60

Ref: 010 Part #: 35880-48210 Price: $1,251.98

Item: AXLE, REAR

QTY:

Ref: 020 Part #: 36910-48250 Price: $70.22

Item: SEAL, OIL

QTY:

Ref: 020 Part #: 36530-48250 Price: $90.23

Item: SEAL

QTY:

Ref: 030 Part #: 08101-06215 Price: $80.99

Item: BEARING,BALL RADIAL 75/130 ***

QTY:

Ref: 040 Part #: 36500-48274 Price: $132.27

Item: NUT

QTY:

Ref: 050 Part #: 04612-00700 Price: $5.41

Item: CIR-CLIP,EXTERNAL

QTY:

Ref: 060 Part #: 08101-06214 Price: $66.32

Item: BEARING,BALL RADIAL

QTY:

Ref: 070 Part #: 35880-48300 Price: $2,836.70

Item: GEAR, PLANETARY ASSY

QTY:

Ref: 080 Part #: 3S503-48310 Price: $786.50

Item: GEAR,INTERNAL

QTY:

Ref: 090 Part #: 36730-48340 Price: $481.80

Item: SUPPORT, PLANETARY G

QTY:

Ref: 100 Part #: 36730-48362 Price: $142.35

Item: PIN, PLANETARY GEAR ***

QTY:

Ref: 110 Part #: 35880-48320 Price: $435.57

Item: PLANETARY GEAR

QTY:

Ref: 120 Part #: 36730-48350 Price: $25.82

Item: BRG NDL ROLLER30/42 ***

QTY:

Ref: 130 Part #: 36330-48370 Price: $10.64

Item: COLLAR,THRUST 1.6mm

QTY:

Ref: 140 Part #: 05411-00825 Price: $1.00

Item: PIN, SPRING

QTY:

Ref: 150 Part #: 36730-48392 Price: $9.30

Item: COLLAR

QTY:

Ref: 160 Part #: 36730-48450 Price: $7.22

Item: PIN, STRAIGHT

QTY:

Ref: 170 Part #: 36500-48280 Price: $63.41

Item: RETAINER,SUPPORT

QTY:

Ref: 180 Part #: 01133-51225 Price: $1.44

Item: BOLT M12x1.25x25 mm ***

QTY:

Ref: 190 Part #: H3580-48410 Price: $1,683.57

Item: SHAFT, BRAKE RH

QTY:

Ref: 200 Part #: 35880-48420 Price: $302.18

Item: SHAFT, BRAKE LH

QTY:

Ref: 210 Part #: 04612-00550 Price: $2.23

Item: CIR-CLIP, EXTERNAL

QTY:

Ref: 220 Part #: 35880-49150 Price: $16.42

Item: STUD

QTY:

Ref: 230 Part #: 35880-49170 Price: $14.60

Item: NUT, REAR WHEEL

QTY:

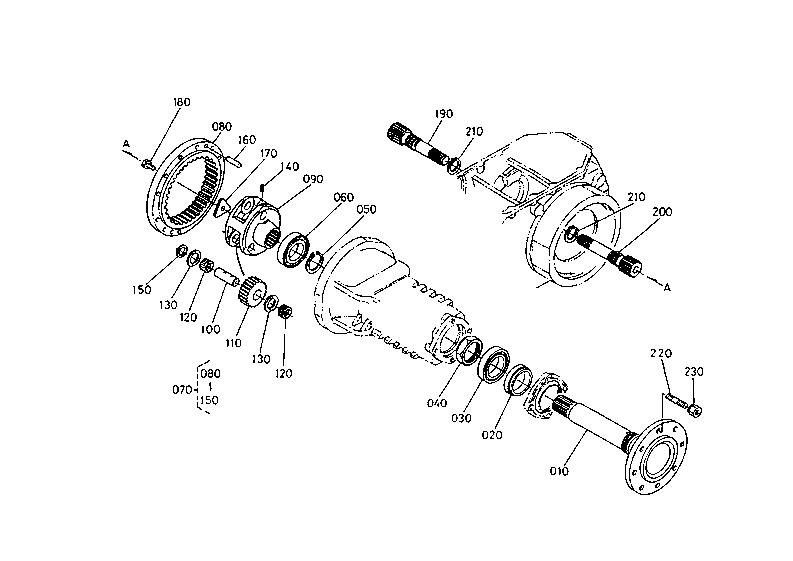

KUBOTA M8950DT CAB PARTS REAR AXLE T06400 REAR AXLE
