Ref	Part #	Item	Price
001	15441-51013	ASSY PUMP, INJECTION ***	$2,824.21
002	16541-52130	GASKET, INJ PUMP NA	$4.18
003	15451-51170	BASE, INJ. PUMP	$266.27
004	15451-51182	GASKET NA	$3.04
005	15451-91530	STUD ***	$1.21
006, 024, 039	02056-50080	NUT, HEX M8-1.25, 6T ***	$1.54
007, 025, 030, 040	04012-50080	WASHER, PLAIN ***	$0.99
008, 012, 026	04512-50080	WASHER, SPRING ***	$0.99
009	H1540-51100	KIT, GEAR PUMP	$854.05
010	15451-94070	WASHER, SPRING	$38.78
011	15451-92320	NUT, CAP ***	$14.43
013	15451-51650	COVER, INJ. PUMP ***	$149.59
014	16541-51660	GASKET, PUMP COVER	$14.09
015	01123-50818	BOLT M8x1.25x18 mm ***	$0.99
016	01123-50850	BOLT M8x1.25x50 mm ***	$1.31
017	15451-51480	COLLAR	$21.55
018	01073-51020	BOLT M10x1.25x20 mm ***	$1.31
019	04013-50100	WASHER, M10 PLAIN ***	$0.99
020	15451-52033	PUMP, FUEL ASSY	$255.42
021	16541-52140	GASKET, FUEL PUMP NA	$2.60
022	15481-52150	BASE, FUEL PUMP	$152.12
023	01513-50822	STUD ***	$0.99
027	15451-52410	GEAR, FUEL PUMP	$774.96
028	15451-52420	SHAFT,FUEL PUMP GEAR	$237.09
029	01053-50820	BOLT M8x1.25x20 mm ***	$0.99
031	16541-52400	COMP SUPPORT, BEARING	$57.34
033	16541-24280	BUSHING	$51.24
034	15451-24360	COLLAR 1	$13.28
035	15451-24370	COLLAR 2	$19.91
036	15451-95390	CIR-CLIP, EXTERNAL	$3.81
037	16541-52440	GASKET, NA	$5.38
038	15451-91520	STUD (PUMP)	$2.89

Ref: 001 Part #: 15441-51013 Price: $2,824.21

Item: ASSY PUMP, INJECTION ***

QTY:

Ref: 002 Part #: 16541-52130 Price: $4.18

Item: GASKET, INJ PUMP NA

QTY:

Ref: 003 Part #: 15451-51170 Price: $266.27

Item: BASE, INJ. PUMP

QTY:

Ref: 004 Part #: 15451-51182 Price: $3.04

Item: GASKET NA

QTY:

Ref: 005 Part #: 15451-91530 Price: $1.21

Item: STUD ***

QTY:

Ref: 006024039 Part #: 02056-50080 Price: $1.54

Item: NUT, HEX M8-1.25, 6T ***

QTY:

Ref: 007025030040 Part #: 04012-50080 Price: $0.99

Item: WASHER, PLAIN ***

QTY:

Ref: 008012026 Part #: 04512-50080 Price: $0.99

Item: WASHER, SPRING ***

QTY:

Ref: 009 Part #: H1540-51100 Price: $854.05

Item: KIT, GEAR PUMP

QTY:

Ref: 010 Part #: 15451-94070 Price: $38.78

Item: WASHER, SPRING

QTY:

Ref: 011 Part #: 15451-92320 Price: $14.43

Item: NUT, CAP ***

QTY:

Ref: 013 Part #: 15451-51650 Price: $149.59

Item: COVER, INJ. PUMP ***

QTY:

Ref: 014 Part #: 16541-51660 Price: $14.09

Item: GASKET, PUMP COVER

QTY:

Ref: 015 Part #: 01123-50818 Price: $0.99

Item: BOLT M8x1.25x18 mm ***

QTY:

Ref: 016 Part #: 01123-50850 Price: $1.31

Item: BOLT M8x1.25x50 mm ***

QTY:

Ref: 017 Part #: 15451-51480 Price: $21.55

Item: COLLAR

QTY:

Ref: 018 Part #: 01073-51020 Price: $1.31

Item: BOLT M10x1.25x20 mm ***

QTY:

Ref: 019 Part #: 04013-50100 Price: $0.99

Item: WASHER, M10 PLAIN ***

QTY:

Ref: 020 Part #: 15451-52033 Price: $255.42

Item: PUMP, FUEL ASSY

QTY:

Ref: 021 Part #: 16541-52140 Price: $2.60

Item: GASKET, FUEL PUMP NA

QTY:

Ref: 022 Part #: 15481-52150 Price: $152.12

Item: BASE, FUEL PUMP

QTY:

Ref: 023 Part #: 01513-50822 Price: $0.99

Item: STUD ***

QTY:

Ref: 027 Part #: 15451-52410 Price: $774.96

Item: GEAR, FUEL PUMP

QTY:

Ref: 028 Part #: 15451-52420 Price: $237.09

Item: SHAFT,FUEL PUMP GEAR

QTY:

Ref: 029 Part #: 01053-50820 Price: $0.99

Item: BOLT M8x1.25x20 mm ***

QTY:

Ref: 031 Part #: 16541-52400 Price: $57.34

Item: COMP SUPPORT, BEARING

QTY:

Ref: 033 Part #: 16541-24280 Price: $51.24

Item: BUSHING

QTY:

Ref: 034 Part #: 15451-24360 Price: $13.28

Item: COLLAR 1

QTY:

Ref: 035 Part #: 15451-24370 Price: $19.91

Item: COLLAR 2

QTY:

Ref: 036 Part #: 15451-95390 Price: $3.81

Item: CIR-CLIP, EXTERNAL

QTY:

Ref: 037 Part #: 16541-52440 Price: $5.38

Item: GASKET, NA

QTY:

Ref: 038 Part #: 15451-91520 Price: $2.89

Item: STUD (PUMP)

QTY:

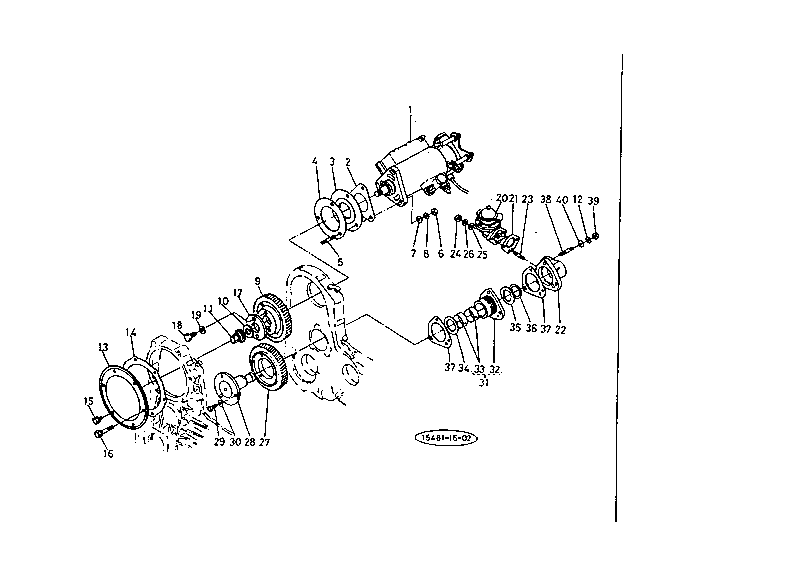

KUBOTA M8950DT PARTS ENGINE T01800 INJECTION PUMP
