KUBOTA | Buy Direct | Order Online

Ref	Part #	Item	Price
001	07933-00130	KIT (15451-73030) ASSY PUMP, WATER	$350.95
003	H1540-73480	SHAFT	$100.86
004	15451-73510	IMPELLER	$53.56
005	15451-73050	SEAL	$69.23
006	15451-73620	SLINGER, WATER PUMP	$20.70
007	08143-06204	BEARING, BALL RADIAL 20/47 ***	$10.85
008	15451-73490	COLLAR, WATER PUMP SHAFT ***	$79.62
009	08143-06304	BEARING, RADIAL BALL	$12.11
010	04611-00520	CIR-CLIP, INTERNAL	$2.23
011	15451-73770	COVER, WATER PUMP ***	$294.82
012	15451-73432	GASKET	$6.85
013	01053-50820	BOLT M8x1.25x20 mm ***	$0.99
014, 030	04512-50080	WASHER, SPRING ***	$0.99
015	15451-73520	FLANGE	$412.08
016	15451-96040	PLUG	$6.98
017	15482-73753	SUPPORT, WATER PUMP ***	$148.69
018	16541-73760	GASKET, NA	$7.59
019	01517-51040	STUD ***	$1.32
020	02076-50100	NUT,M10 6T ***	$0.99
021	01073-51042	BOLT	$1.28
022, 025, 035, 048, 055	04512-50100	WASHER,M10 SPRING LOCK ***	$0.99
023	01073-51035	BOLT ***	$1.32
024, 047	01073-51055	BOLT	$3.20
026	15451-73260	COVER, THERMOSTAT*	$43.75
027	16541-73270	GASKET NA	$1.54
028	01053-50825	BOLT M8x1.25x25 mm ***	$0.99
029, 040	04012-50080	WASHER, PLAIN ***	$0.99
032	16541-73280	GASKET NA	$2.82
033	01073-51028	BOLT	$0.99
034	01073-51045	BOLT	$3.83
036	15451-73010	THERMOSTAT ASSY.	$49.07
037	15484-74110	FAN	$181.09
038	15451-74250	PULLEY, FAN	$90.00
039	15451-96680	GASKET	$2.37
041	01123-50840	BOLT M8x1.25x40 mm ***	$1.17
042	15453-74280	PULLEY, FAN DRIVE	$255.83
043	15451-74293	FLANGE, PULLEY	$213.40
044	05712-01030	KEY, FEATHER	$2.23
045	15451-23362	NUT, CRANKSHAFT	$79.55
046	15451-23382	CRANKSHAFT WASHER	$16.43
049	15451-97010	BELT, FAN FM46 ***	$9.89
050	15571-73060	SUPPORT ASSY.	$256.46
051	06312-10030	PLUG ***	$4.02
052	06312-10100	PLUG	$12.15
053	15484-74150	COLLAR, FAN	$277.06
054	01153-51045	BOLT	$1.32
056	04012-50100	WASHER, PLAIN ***	$2.23

Ref: 001 Part #: 07933-00130 Price: $350.95

Item: KIT (15451-73030) ASSY PUMP, WATER

QTY:

Ref: 003 Part #: H1540-73480 Price: $100.86

Item: SHAFT

QTY:

Ref: 004 Part #: 15451-73510 Price: $53.56

Item: IMPELLER

QTY:

Ref: 005 Part #: 15451-73050 Price: $69.23

Item: SEAL

QTY:

Ref: 006 Part #: 15451-73620 Price: $20.70

Item: SLINGER, WATER PUMP

QTY:

Ref: 007 Part #: 08143-06204 Price: $10.85

Item: BEARING, BALL RADIAL 20/47 ***

QTY:

Ref: 008 Part #: 15451-73490 Price: $79.62

Item: COLLAR, WATER PUMP SHAFT ***

QTY:

Ref: 009 Part #: 08143-06304 Price: $12.11

Item: BEARING, RADIAL BALL

QTY:

Ref: 010 Part #: 04611-00520 Price: $2.23

Item: CIR-CLIP, INTERNAL

QTY:

Ref: 011 Part #: 15451-73770 Price: $294.82

Item: COVER, WATER PUMP ***

QTY:

Ref: 012 Part #: 15451-73432 Price: $6.85

Item: GASKET

QTY:

Ref: 013 Part #: 01053-50820 Price: $0.99

Item: BOLT M8x1.25x20 mm ***

QTY:

Ref: 014030 Part #: 04512-50080 Price: $0.99

Item: WASHER, SPRING ***

QTY:

Ref: 015 Part #: 15451-73520 Price: $412.08

Item: FLANGE

QTY:

Ref: 016 Part #: 15451-96040 Price: $6.98

Item: PLUG

QTY:

Ref: 017 Part #: 15482-73753 Price: $148.69

Item: SUPPORT, WATER PUMP ***

QTY:

Ref: 018 Part #: 16541-73760 Price: $7.59

Item: GASKET, NA

QTY:

Ref: 019 Part #: 01517-51040 Price: $1.32

Item: STUD ***

QTY:

Ref: 020 Part #: 02076-50100 Price: $0.99

Item: NUT,M10 6T ***

QTY:

Ref: 021 Part #: 01073-51042 Price: $1.28

Item: BOLT

QTY:

Ref: 022025035048055 Part #: 04512-50100 Price: $0.99

Item: WASHER,M10 SPRING LOCK ***

QTY:

Ref: 023 Part #: 01073-51035 Price: $1.32

Item: BOLT ***

QTY:

Ref: 024047 Part #: 01073-51055 Price: $3.20

Item: BOLT

QTY:

Ref: 026 Part #: 15451-73260 Price: $43.75

Item: COVER, THERMOSTAT*

QTY:

Ref: 027 Part #: 16541-73270 Price: $1.54

Item: GASKET NA

QTY:

Ref: 028 Part #: 01053-50825 Price: $0.99

Item: BOLT M8x1.25x25 mm ***

QTY:

Ref: 029040 Part #: 04012-50080 Price: $0.99

Item: WASHER, PLAIN ***

QTY:

Ref: 032 Part #: 16541-73280 Price: $2.82

Item: GASKET NA

QTY:

Ref: 033 Part #: 01073-51028 Price: $0.99

Item: BOLT

QTY:

Ref: 034 Part #: 01073-51045 Price: $3.83

Item: BOLT

QTY:

Ref: 036 Part #: 15451-73010 Price: $49.07

Item: THERMOSTAT ASSY.

QTY:

Ref: 037 Part #: 15484-74110 Price: $181.09

Item: FAN

QTY:

Ref: 038 Part #: 15451-74250 Price: $90.00

Item: PULLEY, FAN

QTY:

Ref: 039 Part #: 15451-96680 Price: $2.37

Item: GASKET

QTY:

Ref: 041 Part #: 01123-50840 Price: $1.17

Item: BOLT M8x1.25x40 mm ***

QTY:

Ref: 042 Part #: 15453-74280 Price: $255.83

Item: PULLEY, FAN DRIVE

QTY:

Ref: 043 Part #: 15451-74293 Price: $213.40

Item: FLANGE, PULLEY

QTY:

Ref: 044 Part #: 05712-01030 Price: $2.23

Item: KEY, FEATHER

QTY:

Ref: 045 Part #: 15451-23362 Price: $79.55

Item: NUT, CRANKSHAFT

QTY:

Ref: 046 Part #: 15451-23382 Price: $16.43

Item: CRANKSHAFT WASHER

QTY:

Ref: 049 Part #: 15451-97010 Price: $9.89

Item: BELT, FAN FM46 ***

QTY:

Ref: 050 Part #: 15571-73060 Price: $256.46

Item: SUPPORT ASSY.

QTY:

Ref: 051 Part #: 06312-10030 Price: $4.02

Item: PLUG ***

QTY:

Ref: 052 Part #: 06312-10100 Price: $12.15

Item: PLUG

QTY:

Ref: 053 Part #: 15484-74150 Price: $277.06

Item: COLLAR, FAN

QTY:

Ref: 054 Part #: 01153-51045 Price: $1.32

Item: BOLT

QTY:

Ref: 056 Part #: 04012-50100 Price: $2.23

Item: WASHER, PLAIN ***

QTY:

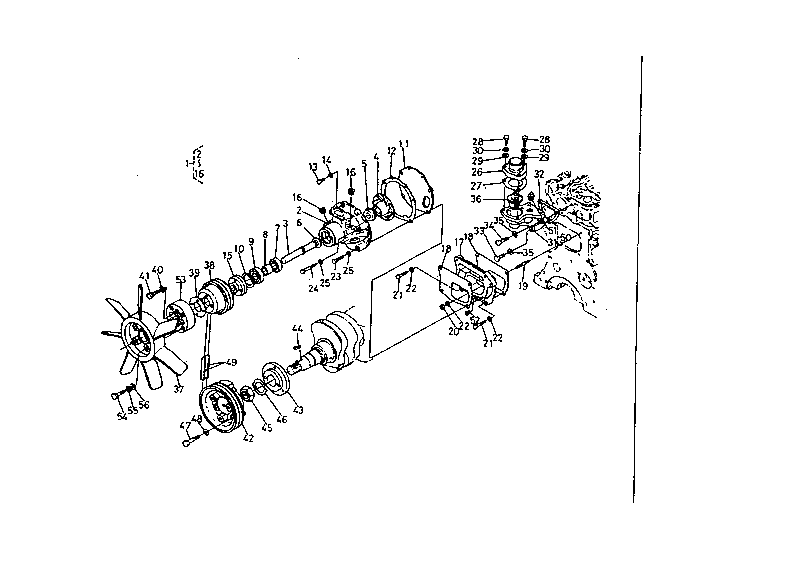

KUBOTA M8950DT PARTS ENGINE T02100 WATER PUMP
