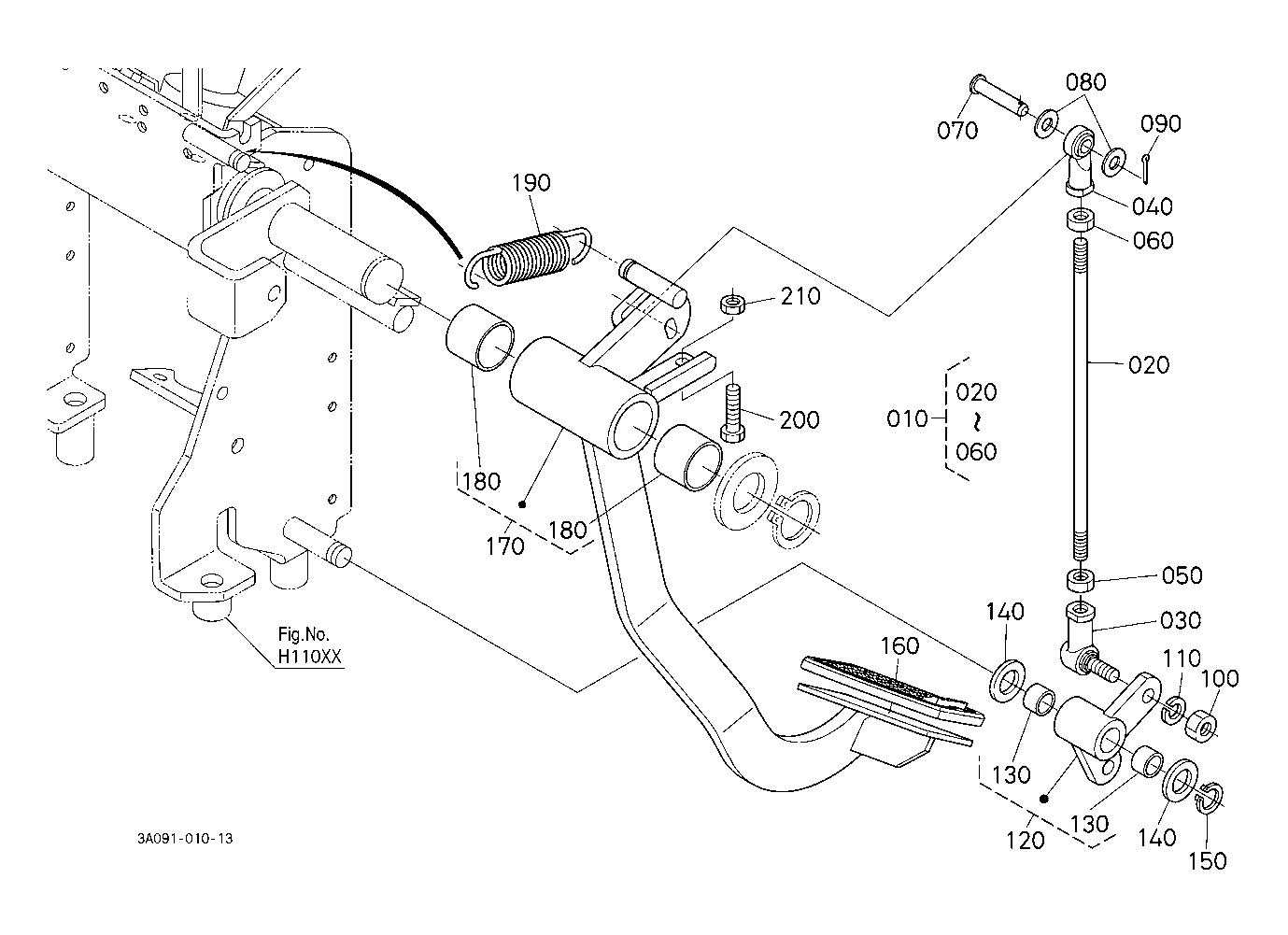

KUBOTA M9000HD PARTS CLUTCH TRANSMISSION C24000 CLUTCH PEDAL

    KUBOTA >kubota-m9000hd-parts-clutch-transmission-c24000-clutch-pedal
    Ref: 010  Part #: 3A091-26250  Price: $64.02

    Item: ASSY ROD, CLUTCH

    QTY:
    Ref: 020  Part #: 3A151-34420  Price: $13.70

    Item: ROD

    QTY:
    Ref: 030  Part #: 45404-95770  Price: $22.22

    Item: END, ROD (CREEP SPD KIT)

    QTY:
    Ref: 040  Part #: 31351-24210  Price: $44.33

    Item: SCREW

    QTY:
    Ref: 050  Part #: 02112-50080  Price: $0.99

    Item: NUT ***

    QTY:
    Ref: 060  Part #: 31351-24260  Price: $1.00

    Item: SCREW, LH NUT-CRP SPD KIT COMP

    QTY:
    Ref: 070  Part #: 3A051-26280  Price: $18.58

    Item: PIN, JOINT

    QTY:
    Ref: 080  Part #: 04013-70080  Price: $0.99

    Item: WASHER, PLAIN *

    QTY:
    Ref: 090  Part #: 05511-50215  Price: $0.99

    Item: PIN, SPLIT ***

    QTY:
    Ref: 100  Part #: 02156-50080  Price: $0.99

    Item: NUT, HEX M8 -1.25 ***

    QTY:
    Ref: 110  Part #: 04512-70080  Price: $0.99

    Item: WASHER,SPRING

    QTY:
    Ref: 120  Part #: 3A091-26330  Price: $68.27

    Item: LEVER, CLUTCH ASSY

    QTY:
    Ref: 130  Part #: 08511-01412  Price: $3.34

    Item: BUSHING (CREEP SPEED KIT COMPONENT)

    QTY:
    Ref: 140  Part #: 04011-50140  Price: $0.99

    Item: WASHER, PLAIN-CREEP SPD KIT ***

    QTY:
    Ref: 150  Part #: 04612-00140  Price: $0.99

    Item: CIR-CLIP, EXTERNAL

    QTY:
    Ref: 160  Part #: T2050-44120  Price: $7.59

    Item: COVER (PEDAL)

    QTY:
    Ref: 160  Part #: T2050-44120  Price: $7.59

    Item: COVER (PEDAL)

    QTY:
    Ref: 170  Part #: 3A051-26100  Price: $167.28

    Item: ASSY PEDAL, CLUTCH ***

    QTY:
    Ref: 180  Part #: 08511-02825  Price: $9.26

    Item: BUSHING

    QTY:
    Ref: 190  Part #: 33980-26160  Price: $20.34

    Item: SPRING

    QTY:
    Ref: 200  Part #: 01153-50825  Price: $1.17

    Item: BOLT M8x1.25x25 mm ***

    QTY:
    Ref: 210  Part #: 02116-50080  Price: $0.99

    Item: NUT ***
