KUBOTA | Buy Direct | Order Online

Ref	Part #	Item	Price
010	3A151-97452	KIT, HYDRAULIC CYLINDER	$1,852.70
010	3A151-97452	KIT, HYDRAULIC CYLINDER	$1,852.70
010	3A151-97452	KIT, HYDRAULIC CYLINDER	$1,852.70
020	3A151-82130	BUSHING	$59.32
030	36840-43350	BUSHING	$79.93
040	36741-94022	PLUG, TAPER	$8.94
050	36330-82170	BOLT	$8.83
060, 110	04512-70120	WASHER,SPRING	$0.99
070	36330-82160	BOLT	$8.22
080	01133-51245	BOLT M12x1.25x45 mm	$1.74
085	01133-51250	BOLT M12x1.25x50 mm ***	$1.82
090, 095	01574-51240	STUD ***	$1.94
100	02176-50120	NUT, HEX M12x1.25 ***	$0.99
120	38240-21410	CAP, TRANSMISSION OIL FILL *	$4.36
130	04816-50300	O-RING *	$2.08
130	04816-50300	O-RING *	$2.08
140	3A751-21632	PIPE, BREATHER	$11.27
140	3A751-21632	PIPE, BREATHER	$11.27
150	3A011-21622	BREATHER 2	$20.34
160	3A151-81670	PLUG	$10.79
170	YR517-11100	ASSY VALVE, RELIEF	$435.46
180	04811-00220	O-RING***	$1.04
180	04817-00220	O-RING	$2.08
190	04816-05150	O RING	$1.00
190	04817-05150	O-RING *	$1.00
200	67810-38370	RING,BACK UP	$3.34
210	01135-71020	BOLT M10x1.25x20 mm	$1.31
220	37150-34460	CLAMP, CORD	$5.22
230	09980-10075	CAP	$1.07

Ref: 010 Part #: 3A151-97452 Price: $1,852.70

Item: KIT, HYDRAULIC CYLINDER

QTY:

Ref: 010 Part #: 3A151-97452 Price: $1,852.70

Item: KIT, HYDRAULIC CYLINDER

QTY:

Ref: 010 Part #: 3A151-97452 Price: $1,852.70

Item: KIT, HYDRAULIC CYLINDER

QTY:

Ref: 020 Part #: 3A151-82130 Price: $59.32

Item: BUSHING

QTY:

Ref: 030 Part #: 36840-43350 Price: $79.93

Item: BUSHING

QTY:

Ref: 040 Part #: 36741-94022 Price: $8.94

Item: PLUG, TAPER

QTY:

Ref: 050 Part #: 36330-82170 Price: $8.83

Item: BOLT

QTY:

Ref: 060110 Part #: 04512-70120 Price: $0.99

Item: WASHER,SPRING

QTY:

Ref: 070 Part #: 36330-82160 Price: $8.22

Item: BOLT

QTY:

Ref: 080 Part #: 01133-51245 Price: $1.74

Item: BOLT M12x1.25x45 mm

QTY:

Ref: 085 Part #: 01133-51250 Price: $1.82

Item: BOLT M12x1.25x50 mm ***

QTY:

Ref: 090095 Part #: 01574-51240 Price: $1.94

Item: STUD ***

QTY:

Ref: 100 Part #: 02176-50120 Price: $0.99

Item: NUT, HEX M12x1.25 ***

QTY:

Ref: 120 Part #: 38240-21410 Price: $4.36

Item: CAP, TRANSMISSION OIL FILL *

QTY:

Ref: 130 Part #: 04816-50300 Price: $2.08

Item: O-RING *

QTY:

Ref: 130 Part #: 04816-50300 Price: $2.08

Item: O-RING *

QTY:

Ref: 140 Part #: 3A751-21632 Price: $11.27

Item: PIPE, BREATHER

QTY:

Ref: 140 Part #: 3A751-21632 Price: $11.27

Item: PIPE, BREATHER

QTY:

Ref: 150 Part #: 3A011-21622 Price: $20.34

Item: BREATHER 2

QTY:

Ref: 160 Part #: 3A151-81670 Price: $10.79

Item: PLUG

QTY:

Ref: 170 Part #: YR517-11100 Price: $435.46

Item: ASSY VALVE, RELIEF

QTY:

Ref: 180 Part #: 04811-00220 Price: $1.04

Item: O-RING***

QTY:

Ref: 180 Part #: 04817-00220 Price: $2.08

Item: O-RING

QTY:

Ref: 190 Part #: 04816-05150 Price: $1.00

Item: O RING

QTY:

Ref: 190 Part #: 04817-05150 Price: $1.00

Item: O-RING *

QTY:

Ref: 200 Part #: 67810-38370 Price: $3.34

Item: RING,BACK UP

QTY:

Ref: 210 Part #: 01135-71020 Price: $1.31

Item: BOLT M10x1.25x20 mm

QTY:

Ref: 220 Part #: 37150-34460 Price: $5.22

Item: CLAMP, CORD

QTY:

Ref: 230 Part #: 09980-10075 Price: $1.07

Item: CAP

QTY:

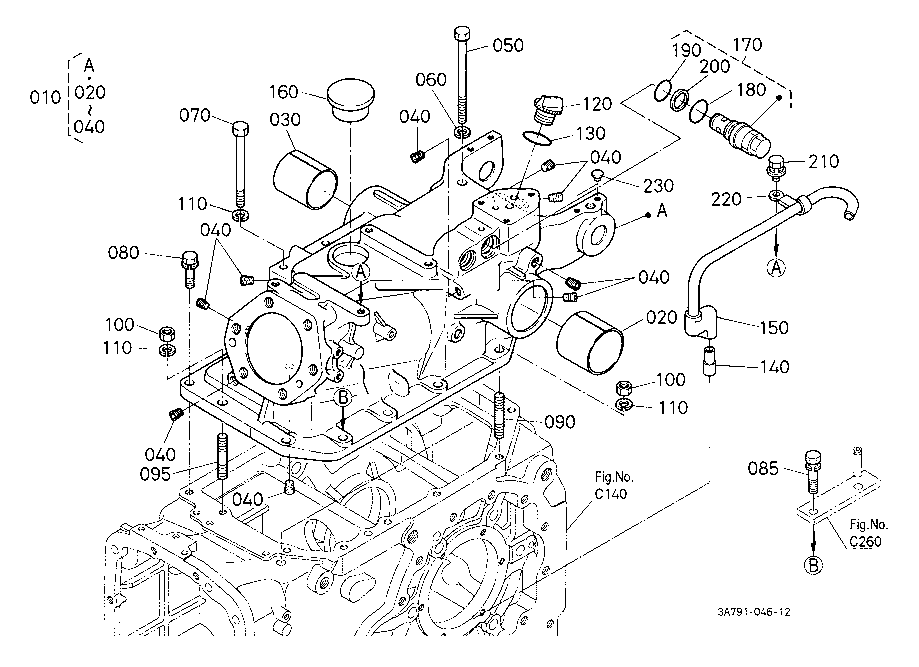

KUBOTA M9000HDC PARTS HYDRAULIC SYSTEM J31000 HYDRAULIC CYLINDER
