KUBOTA | Buy Direct | Order Online

Ref	Part #	Item	Price
010	3C381-04140	TANK, FUEL	$1,733.30
020	01774-51616	BOLT M16x1.5x16 mm ***	$2.59
030	04717-01600	WASHER, SEAL W/RUBBER	$1.94
030	04717-01610	WASHER, SEAL ***	$1.94
040	3C381-04360	BAND, FUEL TANK	$60.62
050	3C381-04370	BAND, FUEL TANK	$76.46
060, 110	3C381-04660	CUSHION, TANK	$44.70
070	3C381-04180	STAY, FUEL TANK	$151.54
080	01133-51440	BOLT M14x1.5x40 mm ***	$2.33
090	02574-50100	NUT, M18 SELF-LOCKING	$3.20
100	04013-50100	WASHER, M10 PLAIN ***	$0.99

Ref: 010 Part #: 3C381-04140 Price: $1,733.30

Item: TANK, FUEL

QTY:

Ref: 020 Part #: 01774-51616 Price: $2.59

Item: BOLT M16x1.5x16 mm ***

QTY:

Ref: 030 Part #: 04717-01600 Price: $1.94

Item: WASHER, SEAL W/RUBBER

QTY:

Ref: 030 Part #: 04717-01610 Price: $1.94

Item: WASHER, SEAL ***

QTY:

Ref: 040 Part #: 3C381-04360 Price: $60.62

Item: BAND, FUEL TANK

QTY:

Ref: 050 Part #: 3C381-04370 Price: $76.46

Item: BAND, FUEL TANK

QTY:

Ref: 060110 Part #: 3C381-04660 Price: $44.70

Item: CUSHION, TANK

QTY:

Ref: 070 Part #: 3C381-04180 Price: $151.54

Item: STAY, FUEL TANK

QTY:

Ref: 080 Part #: 01133-51440 Price: $2.33

Item: BOLT M14x1.5x40 mm ***

QTY:

Ref: 090 Part #: 02574-50100 Price: $3.20

Item: NUT, M18 SELF-LOCKING

QTY:

Ref: 100 Part #: 04013-50100 Price: $0.99

Item: WASHER, M10 PLAIN ***

QTY:

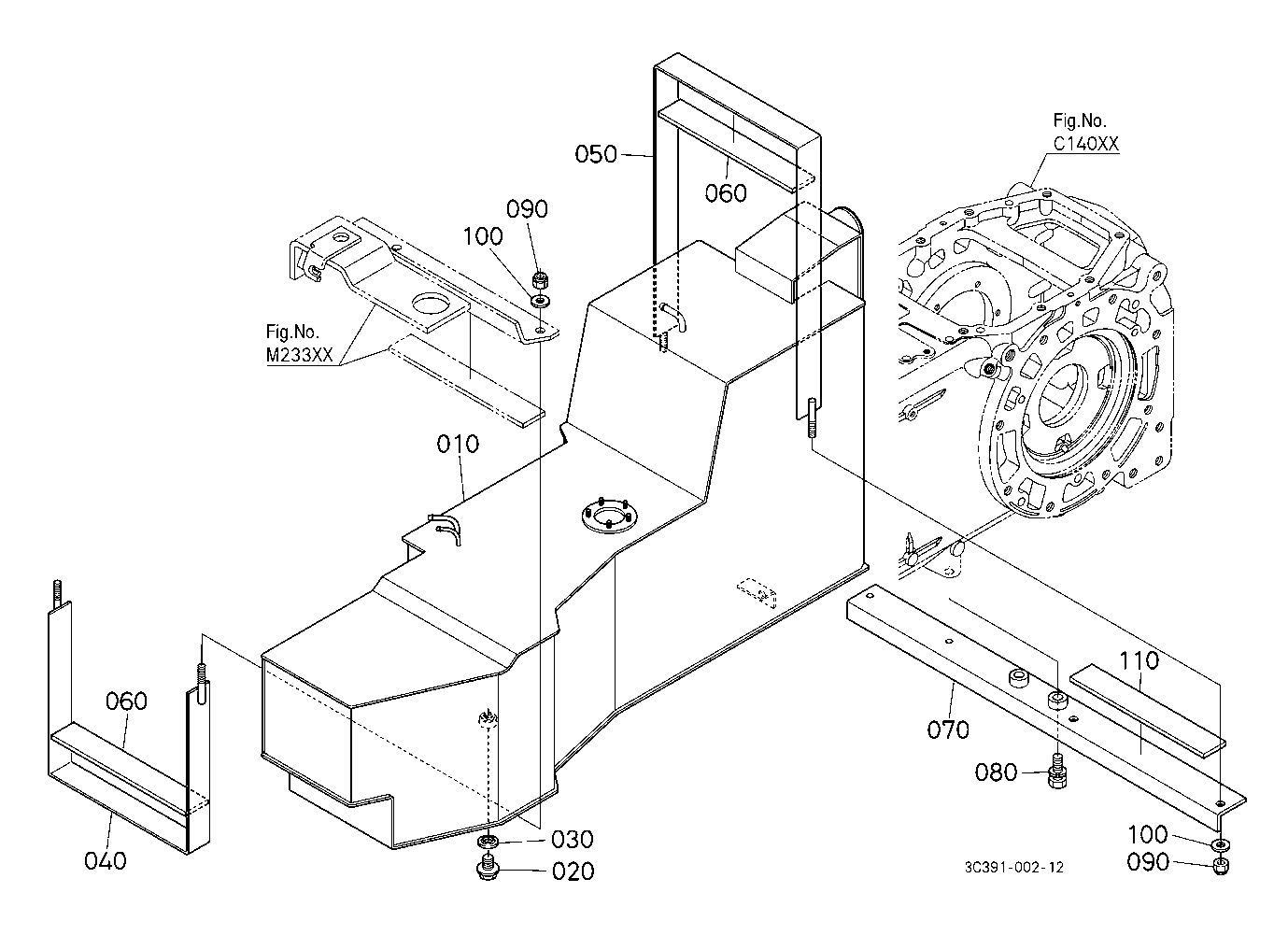

KUBOTA M9540HFL 1 HFL 1S PARTS FUEL SYSTEM A11000 FUEL TANK
