KUBOTA | Buy Direct | Order Online

Ref	Part #	Item	Price
010	3A151-58502	COMP SHAFT,KNUCLE R	$563.15
020, 040	33251-58260	PIN, KNOCK	$4.80
030	3A151-58602	COMP SHAFT,KNUCKLE L	$563.15
050	3A011-58710	COLLAR, THRUST	$32.74
060	3A011-58720	COLLAR, THRUST	$17.32
070	08711-30208	BEARING TAPER ROLL40/80	$33.28
080	08711-30206	BEARING TAPER ROLL30/62	$20.62
090	36530-58770	COVER,KNUCKLE (DUST)	$89.99
100	33251-58760	SEAL, OIL	$26.64
110	35700-58550	WASHER	$7.61
120	02375-50220	NUT	$2.92
130	05511-50540	PIN, SPLIT ***	$0.99
140	35523-62730	ARM, KNUCKLE	$304.39
150	36830-58430	BOLT	$7.22
160	04512-50140	WASHER, SPRING ***	$0.99
170	02174-50140	NUT, HEX M14-1.5 ***	$1.00
180	3A151-58810	HUB, FRONT AXLE	$280.47
190	36510-49010	COVER,HUB	$63.88
200	01123-50814	BOLT M8x1.25x14 mm ***	$0.99

Ref: 010 Part #: 3A151-58502 Price: $563.15

Item: COMP SHAFT,KNUCLE R

QTY:

Ref: 020040 Part #: 33251-58260 Price: $4.80

Item: PIN, KNOCK

QTY:

Ref: 030 Part #: 3A151-58602 Price: $563.15

Item: COMP SHAFT,KNUCKLE L

QTY:

Ref: 050 Part #: 3A011-58710 Price: $32.74

Item: COLLAR, THRUST

QTY:

Ref: 060 Part #: 3A011-58720 Price: $17.32

Item: COLLAR, THRUST

QTY:

Ref: 070 Part #: 08711-30208 Price: $33.28

Item: BEARING TAPER ROLL40/80

QTY:

Ref: 080 Part #: 08711-30206 Price: $20.62

Item: BEARING TAPER ROLL30/62

QTY:

Ref: 090 Part #: 36530-58770 Price: $89.99

Item: COVER,KNUCKLE (DUST)

QTY:

Ref: 100 Part #: 33251-58760 Price: $26.64

Item: SEAL, OIL

QTY:

Ref: 110 Part #: 35700-58550 Price: $7.61

Item: WASHER

QTY:

Ref: 120 Part #: 02375-50220 Price: $2.92

Item: NUT

QTY:

Ref: 130 Part #: 05511-50540 Price: $0.99

Item: PIN, SPLIT ***

QTY:

Ref: 140 Part #: 35523-62730 Price: $304.39

Item: ARM, KNUCKLE

QTY:

Ref: 150 Part #: 36830-58430 Price: $7.22

Item: BOLT

QTY:

Ref: 160 Part #: 04512-50140 Price: $0.99

Item: WASHER, SPRING ***

QTY:

Ref: 170 Part #: 02174-50140 Price: $1.00

Item: NUT, HEX M14-1.5 ***

QTY:

Ref: 180 Part #: 3A151-58810 Price: $280.47

Item: HUB, FRONT AXLE

QTY:

Ref: 190 Part #: 36510-49010 Price: $63.88

Item: COVER,HUB

QTY:

Ref: 200 Part #: 01123-50814 Price: $0.99

Item: BOLT M8x1.25x14 mm ***

QTY:

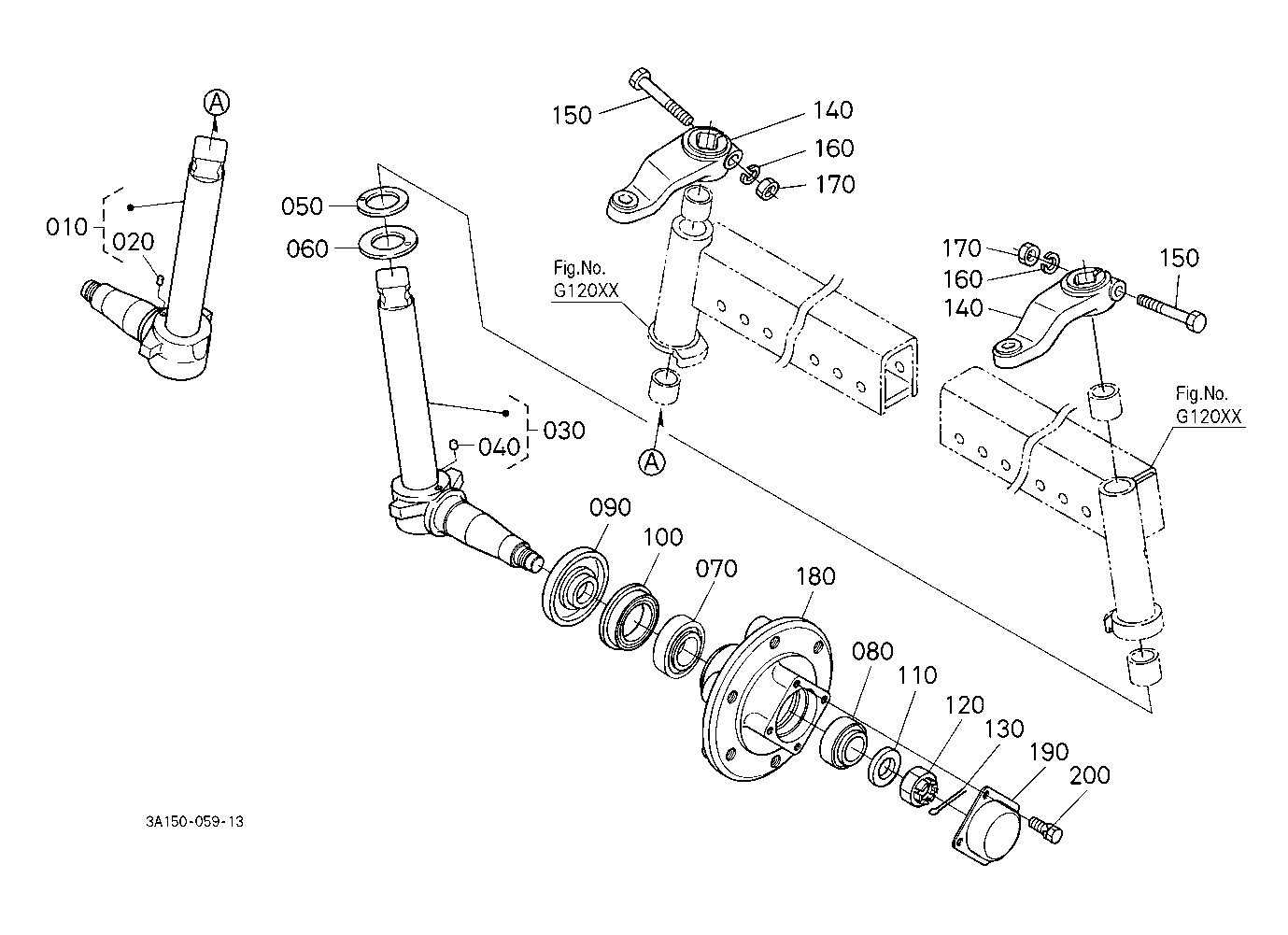

KUBOTA M9540HFL PARTS FRONT AXLE CHASSIS G13000 FRONT WHEEL HUB
