KUBOTA | Buy Direct | Order Online

Ref	Part #	Item	Price
010	3C091-82810	HOLDER,GEAR PUMP	$154.26
020	01133-51030	BOLT M10x1.25x30 mm *	$1.68
030	04811-50950	O RING	$4.20
040	3C081-82280	GEAR, BEVEL ***	$563.45
040	3C294-82280	GEAR, BEVEL	$704.58
050	33740-27292	CIR-CLIP,EXTERNAL	$26.46
060	08101-06306	BEARING, BALL (RADIAL)	$15.18
070	08141-06207	BEARING, BALL (RADIAL35/72) ***	$15.11
080	04611-00720	CIR-CLIP, INTERNAL	$6.61
090	35533-42370	SHIM, .4MM	$3.34
090	35533-42360	SHIM, .2MM	$3.34
090	35533-42350	SHIM (0.1mm)	$3.34
100	3C081-82204	HYDRAULIC PUMP	$1,767.26
100	3C081-82204	HYDRAULIC PUMP	$1,767.26
110	3A272-82290	O RING	$4.42
120	3A272-82230	BOLT,HYD. PUMP	$8.22
130	3A272-82250	WASHER	$11.63
140	HH330-82630	CARTRIDGE, OIL FILTER *	$41.09
140	HHTA0-37710	CARTRIDGE, OIL FILTER (HYD) *	$53.49
145	T0070-37720	MAGNET, FILTER OIL	$14.59
150	32590-38330	SCREW, JOINT	$18.44
160	33960-82640	MAGNET, FILTER	$52.28
170	3C081-82710	COMP PIPE, SUCTION	$75.54
180	04816-50350	O-RING	$2.23
190	04816-00260	O-RING	$1.65
200	01023-50625	BOLT M6x1.0x25 mm ***	$0.99
200	01023-50620	BOLT M6x1.0x20 mm ***	$0.99

Ref: 010 Part #: 3C091-82810 Price: $154.26

Item: HOLDER,GEAR PUMP

QTY:

Ref: 020 Part #: 01133-51030 Price: $1.68

Item: BOLT M10x1.25x30 mm *

QTY:

Ref: 030 Part #: 04811-50950 Price: $4.20

Item: O RING

QTY:

Ref: 040 Part #: 3C081-82280 Price: $563.45

Item: GEAR, BEVEL ***

QTY:

Ref: 040 Part #: 3C294-82280 Price: $704.58

Item: GEAR, BEVEL

QTY:

Ref: 050 Part #: 33740-27292 Price: $26.46

Item: CIR-CLIP,EXTERNAL

QTY:

Ref: 060 Part #: 08101-06306 Price: $15.18

Item: BEARING, BALL (RADIAL)

QTY:

Ref: 070 Part #: 08141-06207 Price: $15.11

Item: BEARING, BALL (RADIAL35/72) ***

QTY:

Ref: 080 Part #: 04611-00720 Price: $6.61

Item: CIR-CLIP, INTERNAL

QTY:

Ref: 090 Part #: 35533-42370 Price: $3.34

Item: SHIM, .4MM

QTY:

Ref: 090 Part #: 35533-42360 Price: $3.34

Item: SHIM, .2MM

QTY:

Ref: 090 Part #: 35533-42350 Price: $3.34

Item: SHIM (0.1mm)

QTY:

Ref: 100 Part #: 3C081-82204 Price: $1,767.26

Item: HYDRAULIC PUMP

QTY:

Ref: 100 Part #: 3C081-82204 Price: $1,767.26

Item: HYDRAULIC PUMP

QTY:

Ref: 110 Part #: 3A272-82290 Price: $4.42

Item: O RING

QTY:

Ref: 120 Part #: 3A272-82230 Price: $8.22

Item: BOLT,HYD. PUMP

QTY:

Ref: 130 Part #: 3A272-82250 Price: $11.63

Item: WASHER

QTY:

Ref: 140 Part #: HH330-82630 Price: $41.09

Item: CARTRIDGE, OIL FILTER *

QTY:

Ref: 140 Part #: HHTA0-37710 Price: $53.49

Item: CARTRIDGE, OIL FILTER (HYD) *

QTY:

Ref: 145 Part #: T0070-37720 Price: $14.59

Item: MAGNET, FILTER OIL

QTY:

Ref: 150 Part #: 32590-38330 Price: $18.44

Item: SCREW, JOINT

QTY:

Ref: 160 Part #: 33960-82640 Price: $52.28

Item: MAGNET, FILTER

QTY:

Ref: 170 Part #: 3C081-82710 Price: $75.54

Item: COMP PIPE, SUCTION

QTY:

Ref: 180 Part #: 04816-50350 Price: $2.23

Item: O-RING

QTY:

Ref: 190 Part #: 04816-00260 Price: $1.65

Item: O-RING

QTY:

Ref: 200 Part #: 01023-50625 Price: $0.99

Item: BOLT M6x1.0x25 mm ***

QTY:

Ref: 200 Part #: 01023-50620 Price: $0.99

Item: BOLT M6x1.0x20 mm ***

QTY:

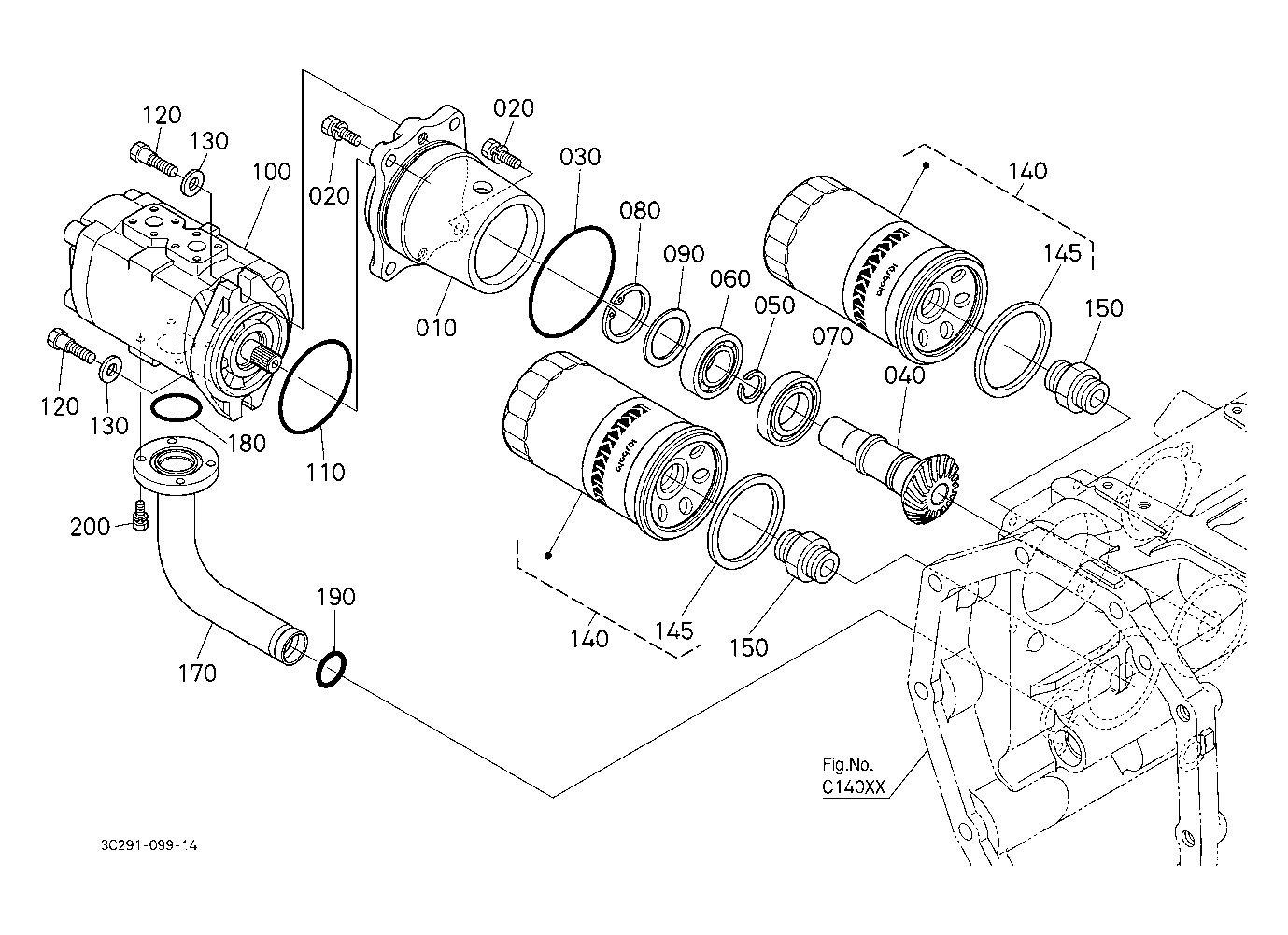

KUBOTA M9540HFL PARTS HYDRAULIC SYSTEM J13000 HYDRAULIC PUMP
