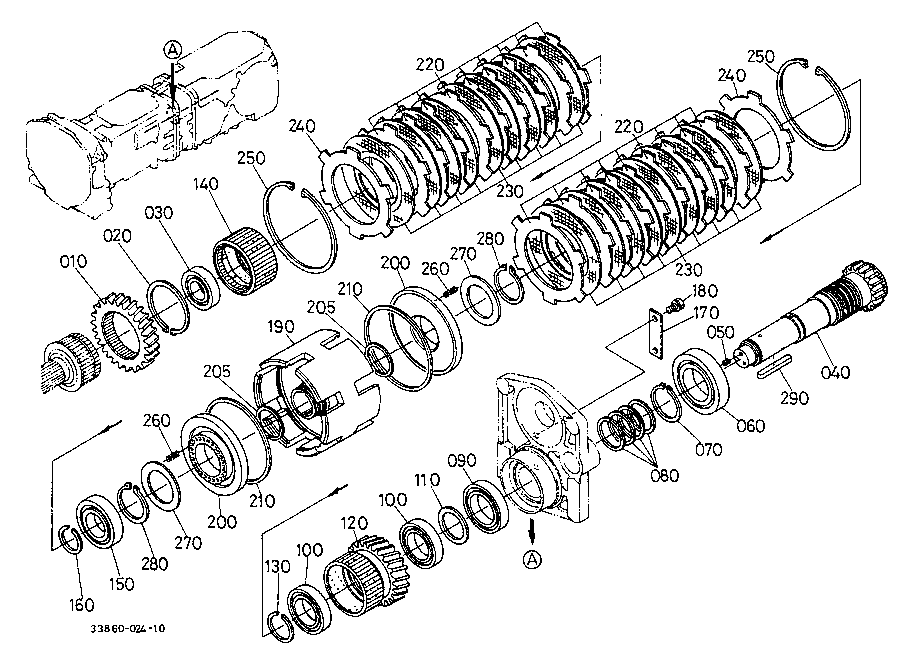

KUBOTA M9580DT PARTS TRANSMISSION T08502 HYDRAULIC CLUTCH (IC SHUTTLE)

    KUBOTA >kubota-m9580dt-parts-transmission-t08502-hydraulic-clutch-(ic-shuttle)
    Ref: 010  Part #: 33740-34110  Price: $680.54

    Item: GEAR

    QTY:
    Ref: 020  Part #: 04612-00800  Price: $8.22

    Item: CIR-CLIP, EXTERNAL

    QTY:
    Ref: 030  Part #: 33960-34242  Price: $25.90

    Item: BEARING BALL

    QTY:
    Ref: 030  Part #: 33960-34242  Price: $25.90

    Item: BEARING BALL

    QTY:
    Ref: 040  Part #: 33860-28870  Price: $1,622.56

    Item: SHAFT,GEAR ***

    QTY:
    Ref: 050  Part #: 03650-50606  Price: $0.99

    Item: SCREW ***

    QTY:
    Ref: 060  Part #: 08101-06211  Price: $35.81

    Item: BEARING BALL RADIAL55/100

    QTY:
    Ref: 070280  Part #: 04612-00550  Price: $2.23

    Item: CIR-CLIP, EXTERNAL

    QTY:
    Ref: 080  Part #: 36530-27260  Price: $26.16

    Item: RING, SEAL

    QTY:
    Ref: 090  Part #: 36780-43330  Price: $38.48

    Item: BEARING, BALL RADIAL

    QTY:
    Ref: 100  Part #: 32440-43920  Price: $41.30

    Item: BRG BALL RADIAL45/75

    QTY:
    Ref: 110  Part #: 44512-23270  Price: $12.52

    Item: COLLAR

    QTY:
    Ref: 120  Part #: 33860-34190  Price: $1,077.96

    Item: GEAR

    QTY:
    Ref: 130  Part #: 36730-28050  Price: $11.63

    Item: CIR-CLIP, EXTERNAL

    QTY:
    Ref: 140  Part #: 33860-34470  Price: $666.98

    Item: HUB,SPLINE

    QTY:
    Ref: 150  Part #: 33860-23640  Price: $42.13

    Item: BRG BALL RADIAL40/80 ***

    QTY:
    Ref: 160  Part #: 36730-28043  Price: $9.14

    Item: CIR-CLIP (CREEP KIT COMPONENT)**

    QTY:
    Ref: 160  Part #: 36730-28043  Price: $9.14

    Item: CIR-CLIP (CREEP KIT COMPONENT)**

    QTY:
    Ref: 170  Part #: 38430-25530  Price: $9.42

    Item: BEARING RETAINER

    QTY:
    Ref: 180  Part #: 01123-50818  Price: $0.99

    Item: BOLT M8x1.25x18 mm ***

    QTY:
    Ref: 180  Part #: 01123-50820  Price: $0.99

    Item: BOLT M8x1.25x20 mm ***

    QTY:
    Ref: 190  Part #: 33860-23652  Price: $1,590.30

    Item: BODY CLUTCH ***

    QTY:
    Ref: 190  Part #: 33860-23654  Price: $1,559.12

    Item: BODY, CLUTCH ***

    QTY:
    Ref: 190  Part #: 33860-23654  Price: $1,559.12

    Item: BODY, CLUTCH ***

    QTY:
    Ref: 200  Part #: 33860-23732  Price: $329.39

    Item: PISTON

    QTY:
    Ref: 200  Part #: 33860-23734  Price: $550.68

    Item: PISTON

    QTY:
    Ref: 200  Part #: 33860-23734  Price: $550.68

    Item: PISTON

    QTY:
    Ref: 205  Part #: 33860-23750  Price: $18.53

    Item: O-RING ***

    QTY:
    Ref: 205  Part #: 33860-23752  Price: $27.49

    Item: RING

    QTY:
    Ref: 210  Part #: 33550-23742  Price: $18.57

    Item: RING,OUTER

    QTY:
    Ref: 220  Part #: 33550-23700  Price: $94.39

    Item: PLATE,DRIVE 1.4MM

    QTY:
    Ref: 220  Part #: 33550-23670  Price: $133.85

    Item: PLATE,DRIVER 1.2MM

    QTY:
    Ref: 230  Part #: 33550-23662  Price: $66.45

    Item: DISK,CLUTCH *

    QTY:
    Ref: 240  Part #: H3350-23680  Price: $201.17

    Item: PLATE, PRESSURE

    QTY:
    Ref: 250  Part #: 33550-23690  Price: $114.13

    Item: CIR-CLIP,INTERNAL ***

    QTY:
    Ref: 260  Part #: 62231-18530  Price: $3.87

    Item: SPRING, STOPPER

    QTY:
    Ref: 270  Part #: 33550-23340  Price: $179.76

    Item: COLLAR, THRUST ***

    QTY:
    Ref: 270  Part #: 33860-23340  Price: $248.20

    Item: COLLAR, THRUST ***

    QTY:
    Ref: 280  Part #: 04612-00580  Price: $4.80

    Item: CIR CLIP

    QTY:
    Ref: 290  Part #: 33860-23630  Price: $239.05

    Item: KEY ***

    QTY:
