KUBOTA | Buy Direct | Order Online

Ref	Part #	Item	Price
010	3N300-17100	ASSY RADIATOR	$1,255.44
020	17580-16060	CAP,RADIATOR	$46.69
030	34070-16070	PLUG, DRAIN	$13.44
040	34070-16090	O RING	$7.53
050	3P999-00072	KIT SHROUD	$356.64
060	TA040-49570	LABEL, FAN WARNING	$3.34
080, 120, 270	01754-50612	BOLT M6x1.0x12 mm ***	$1.17
090	3P100-17160	PLATE, SHUTTER	$58.69
100	3P200-17170	PLATE, SHUTTER	$61.70
110	3P200-17180	PLATE	$64.54
115	3P200-17190	PLATE	$78.30
130, 250	01754-50620	BOLT M6x1.0x20 mm ***	$1.95
140	3N300-17412	NET, RADIATOR ***	$84.39
140	3P200-17410	NET, RADIATOR	$97.34
150	3N300-17280	TRIM	$3.21
160	3N300-17290	TRIM	$4.22
170	3T405-17260	TRIM,SHUTTER	$55.16
180	33760-50220	CLAMP, HOSE	$13.98
190	01754-50812	BOLT M8x1.25x12 mm ***	$2.59
200	34070-16030	RUBBER, RADIATOR	$3.04
220	3P300-83632	SPRING	$12.16
230	52514-57230	ROLLER, SLIDE	$2.90
240	17607-03520	COLLAR	$2.01
260	02552-50060	NUT 4,M6 SELF-LOCKING ***	$1.00

Ref: 010 Part #: 3N300-17100 Price: $1,255.44

Item: ASSY RADIATOR

QTY:

Ref: 020 Part #: 17580-16060 Price: $46.69

Item: CAP,RADIATOR

QTY:

Ref: 030 Part #: 34070-16070 Price: $13.44

Item: PLUG, DRAIN

QTY:

Ref: 040 Part #: 34070-16090 Price: $7.53

Item: O RING

QTY:

Ref: 050 Part #: 3P999-00072 Price: $356.64

Item: KIT SHROUD

QTY:

Ref: 060 Part #: TA040-49570 Price: $3.34

Item: LABEL, FAN WARNING

QTY:

Ref: 080120270 Part #: 01754-50612 Price: $1.17

Item: BOLT M6x1.0x12 mm ***

QTY:

Ref: 090 Part #: 3P100-17160 Price: $58.69

Item: PLATE, SHUTTER

QTY:

Ref: 100 Part #: 3P200-17170 Price: $61.70

Item: PLATE, SHUTTER

QTY:

Ref: 110 Part #: 3P200-17180 Price: $64.54

Item: PLATE

QTY:

Ref: 115 Part #: 3P200-17190 Price: $78.30

Item: PLATE

QTY:

Ref: 130250 Part #: 01754-50620 Price: $1.95

Item: BOLT M6x1.0x20 mm ***

QTY:

Ref: 140 Part #: 3N300-17412 Price: $84.39

Item: NET, RADIATOR ***

QTY:

Ref: 140 Part #: 3P200-17410 Price: $97.34

Item: NET, RADIATOR

QTY:

Ref: 150 Part #: 3N300-17280 Price: $3.21

Item: TRIM

QTY:

Ref: 160 Part #: 3N300-17290 Price: $4.22

Item: TRIM

QTY:

Ref: 170 Part #: 3T405-17260 Price: $55.16

Item: TRIM,SHUTTER

QTY:

Ref: 180 Part #: 33760-50220 Price: $13.98

Item: CLAMP, HOSE

QTY:

Ref: 190 Part #: 01754-50812 Price: $2.59

Item: BOLT M8x1.25x12 mm ***

QTY:

Ref: 200 Part #: 34070-16030 Price: $3.04

Item: RUBBER, RADIATOR

QTY:

Ref: 220 Part #: 3P300-83632 Price: $12.16

Item: SPRING

QTY:

Ref: 230 Part #: 52514-57230 Price: $2.90

Item: ROLLER, SLIDE

QTY:

Ref: 240 Part #: 17607-03520 Price: $2.01

Item: COLLAR

QTY:

Ref: 260 Part #: 02552-50060 Price: $1.00

Item: NUT 4,M6 SELF-LOCKING ***

QTY:

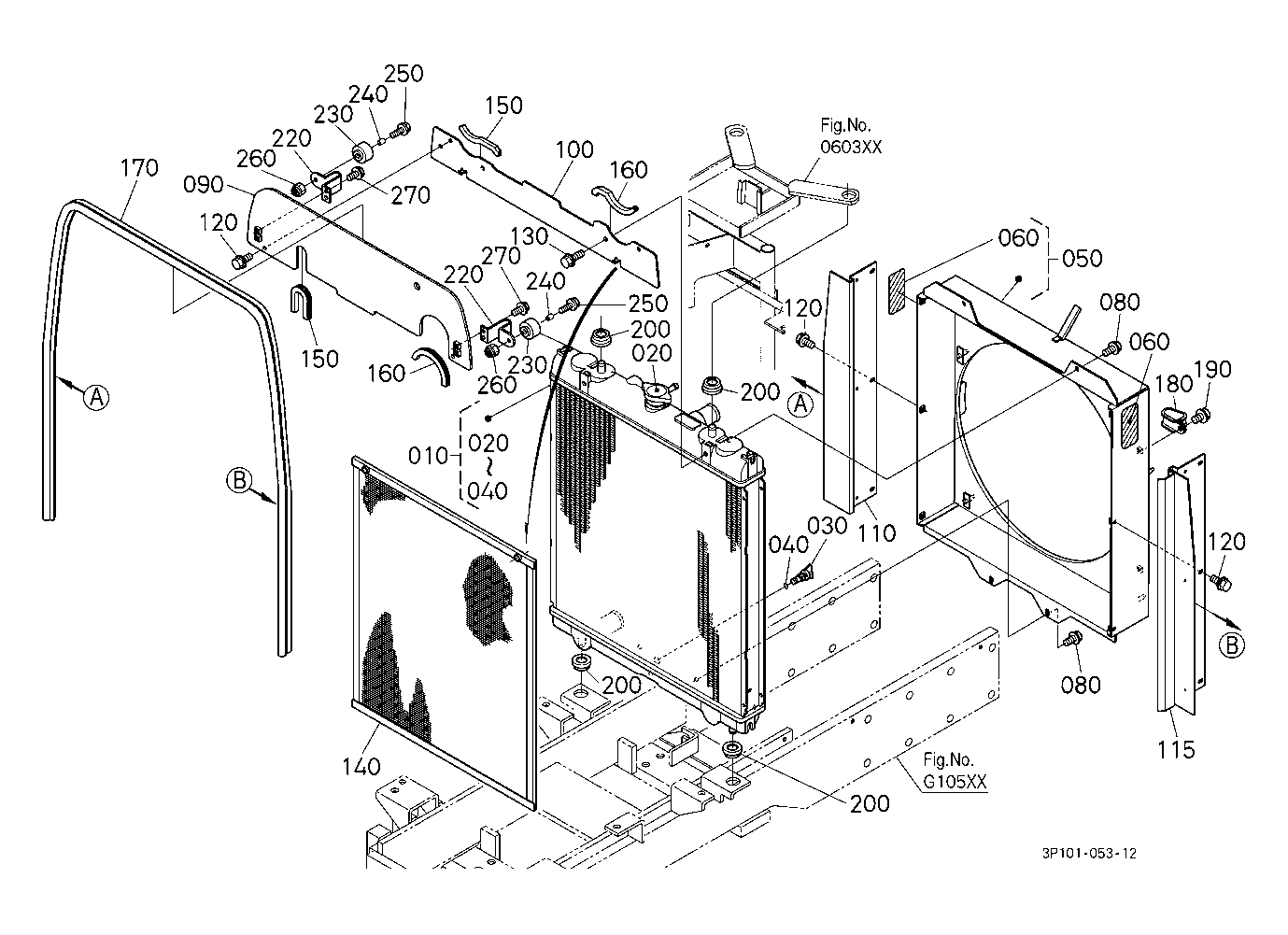

KUBOTA M95XDTC PARTS COOLING WATER SYSTEM A43000 RADIATOR
