Ref	Part #	Item	Price
010	T2050-44120	COVER (PEDAL)	$7.59
020	3N640-26100	PEDAL, CLUTCH	$168.72
020	3N630-26100	PEDAL, CLUTCH (Low Profile)	$163.39
020	3N630-26102	PEDAL,CLUTCH	$174.26
030	08511-02520	BUSHING	$5.98
040	34070-44140	SEAL, OIL	$6.39
045	3N630-44160	SPRING,TORS	$43.54
050	34070-44160	SPRING,CLUTCH	$19.76
060	33980-26160	SPRING	$20.34
070	3R600-26610	STOPPER	$26.72
080	01754-50616	BOLT M6x1.0x16 mm ***	$1.55
090	01173-51065	BOLT M10x1.25x65 mm ***	$2.21
100	02116-50100	NUT, HEX M10 ***	$0.99

Ref: 010 Part #: T2050-44120 Price: $7.59

Item: COVER (PEDAL)

QTY:

Ref: 020 Part #: 3N640-26100 Price: $168.72

Item: PEDAL, CLUTCH

QTY:

Ref: 020 Part #: 3N630-26100 Price: $163.39

Item: PEDAL, CLUTCH (Low Profile)

QTY:

Ref: 020 Part #: 3N630-26102 Price: $174.26

Item: PEDAL,CLUTCH

QTY:

Ref: 030 Part #: 08511-02520 Price: $5.98

Item: BUSHING

QTY:

Ref: 040 Part #: 34070-44140 Price: $6.39

Item: SEAL, OIL

QTY:

Ref: 045 Part #: 3N630-44160 Price: $43.54

Item: SPRING,TORS

QTY:

Ref: 050 Part #: 34070-44160 Price: $19.76

Item: SPRING,CLUTCH

QTY:

Ref: 060 Part #: 33980-26160 Price: $20.34

Item: SPRING

QTY:

Ref: 070 Part #: 3R600-26610 Price: $26.72

Item: STOPPER

QTY:

Ref: 080 Part #: 01754-50616 Price: $1.55

Item: BOLT M6x1.0x16 mm ***

QTY:

Ref: 090 Part #: 01173-51065 Price: $2.21

Item: BOLT M10x1.25x65 mm ***

QTY:

Ref: 100 Part #: 02116-50100 Price: $0.99

Item: NUT, HEX M10 ***

QTY:

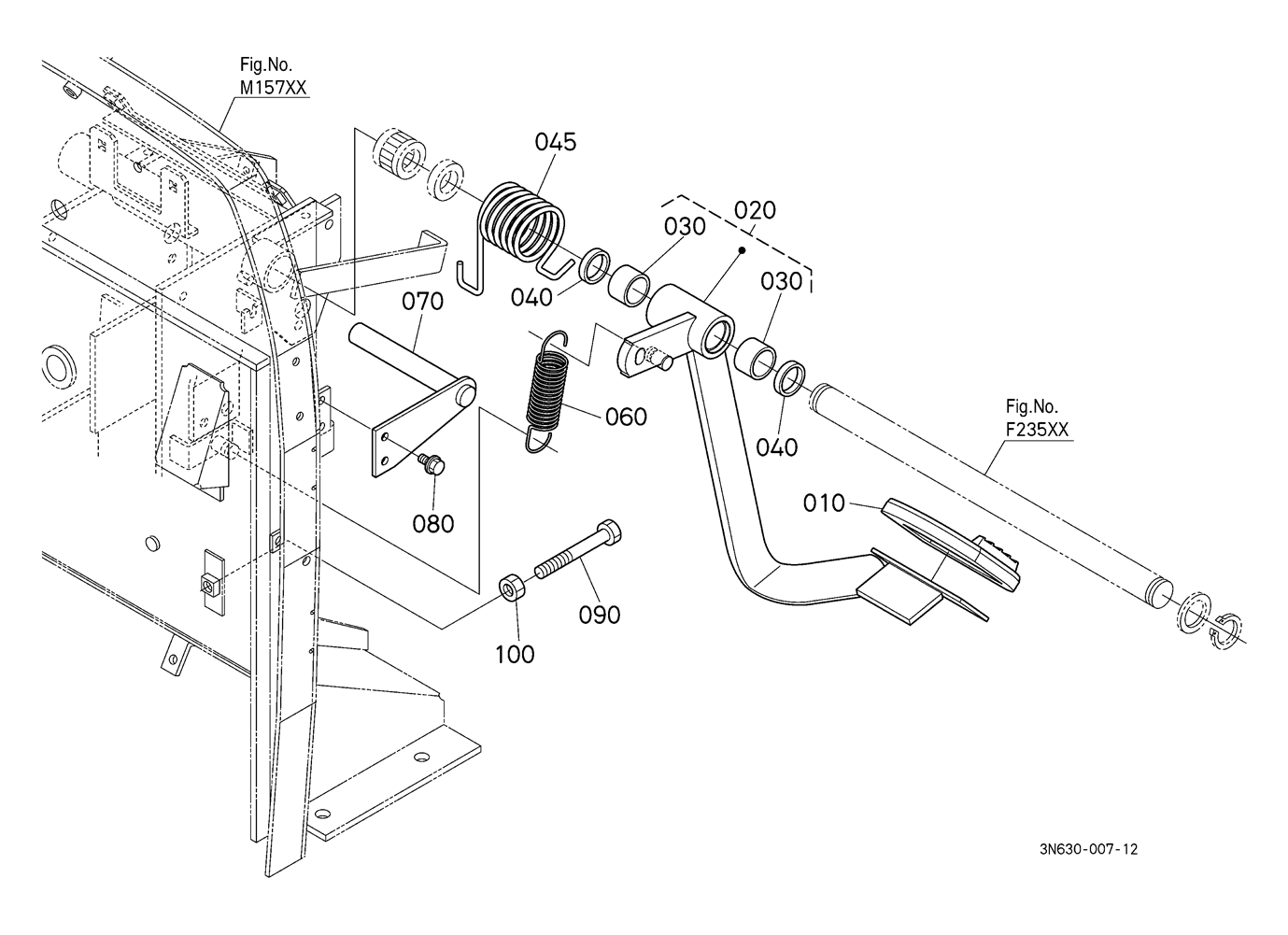

KUBOTA M96SDS PARTS CLUTCH TRANSMISSION C24001 CLUTCH PEDAL
