Ref	Part #	Item	Price
010	TC250-47492	STAY, STEP LH	$18.03
020	TC250-47482	STAY, STEP RH	$19.94
025, 030	01754-50816	BOLT M8x1.25x16 mm ***	$2.86
040	TC350-57472	COMP STEP, HST	$1,171.93
040	TC350-57472	COMP STEP, HST	$1,171.93
050	TD170-47470	STEP, AID LH	$84.62
060	01754-50812	BOLT M8x1.25x12 mm ***	$2.59
080	TC250-29142	BRACKET, STEP FRONT LH	$51.54
090, 110	01133-51230	BOLT M12x1.25x30 mm ***	$1.55
100	TC350-57420	BRACKET, STEP FRONT RH	$68.95
120	TC350-57412	BRACKET, STEP REAR RH	$38.16
120	TC350-57412	BRACKET, STEP REAR RH	$38.16
130, 150	01133-51025	BOLT M10x1.25x25 mm ***	$1.55
140	TC350-55640	ASSY BRACKET, STEP	$80.27
145	08511-01006	BUSHING	$3.34
160	T1060-47310	CUSHION	$22.22
170	T1060-47320	WASHER	$5.12
180	01173-51475	BOLT M14x1.5x75 mm	$3.34
190	04512-70140	WASHER,SPRING *	$0.99
200	02176-50140	NUT	$1.00
210	TC030-47350	CUSHION, RUBBER	$11.08
220	02751-50080	NUT,HEX M8X1.25 FLANGE 4T	$3.05

Ref: 010 Part #: TC250-47492 Price: $18.03

Item: STAY, STEP LH

QTY:

Ref: 020 Part #: TC250-47482 Price: $19.94

Item: STAY, STEP RH

QTY:

Ref: 025030 Part #: 01754-50816 Price: $2.86

Item: BOLT M8x1.25x16 mm ***

QTY:

Ref: 040 Part #: TC350-57472 Price: $1,171.93

Item: COMP STEP, HST

QTY:

Ref: 040 Part #: TC350-57472 Price: $1,171.93

Item: COMP STEP, HST

QTY:

Ref: 050 Part #: TD170-47470 Price: $84.62

Item: STEP, AID LH

QTY:

Ref: 060 Part #: 01754-50812 Price: $2.59

Item: BOLT M8x1.25x12 mm ***

QTY:

Ref: 080 Part #: TC250-29142 Price: $51.54

Item: BRACKET, STEP FRONT LH

QTY:

Ref: 090110 Part #: 01133-51230 Price: $1.55

Item: BOLT M12x1.25x30 mm ***

QTY:

Ref: 100 Part #: TC350-57420 Price: $68.95

Item: BRACKET, STEP FRONT RH

QTY:

Ref: 120 Part #: TC350-57412 Price: $38.16

Item: BRACKET, STEP REAR RH

QTY:

Ref: 120 Part #: TC350-57412 Price: $38.16

Item: BRACKET, STEP REAR RH

QTY:

Ref: 130150 Part #: 01133-51025 Price: $1.55

Item: BOLT M10x1.25x25 mm ***

QTY:

Ref: 140 Part #: TC350-55640 Price: $80.27

Item: ASSY BRACKET, STEP

QTY:

Ref: 145 Part #: 08511-01006 Price: $3.34

Item: BUSHING

QTY:

Ref: 160 Part #: T1060-47310 Price: $22.22

Item: CUSHION

QTY:

Ref: 170 Part #: T1060-47320 Price: $5.12

Item: WASHER

QTY:

Ref: 180 Part #: 01173-51475 Price: $3.34

Item: BOLT M14x1.5x75 mm

QTY:

Ref: 190 Part #: 04512-70140 Price: $0.99

Item: WASHER,SPRING *

QTY:

Ref: 200 Part #: 02176-50140 Price: $1.00

Item: NUT

QTY:

Ref: 210 Part #: TC030-47350 Price: $11.08

Item: CUSHION, RUBBER

QTY:

Ref: 220 Part #: 02751-50080 Price: $3.05

Item: NUT,HEX M8X1.25 FLANGE 4T

QTY:

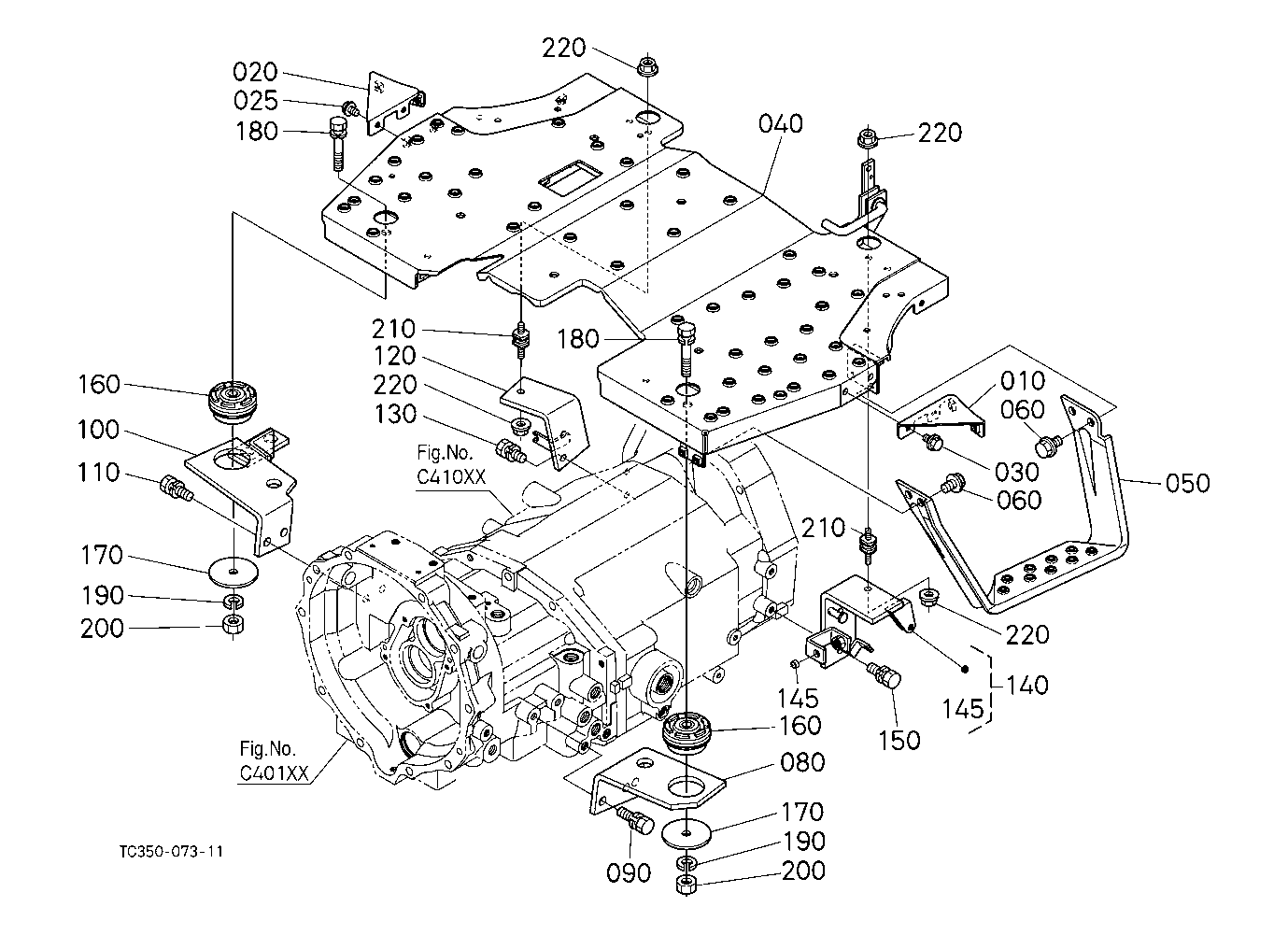

KUBOTA MX4700H PARTS HOOD BONNET L22500 STEP
