Ref	Part #	Item	Price
010	34070-34214	PISTON, HYD.	$91.51
020	04810-00800	O RING	$7.02
030	31391-37330	RING, BACK UP	$23.30
030	68241-62330	RING, BACK-UP	$15.23
040	31351-37320	ROD, HYD. PISTON 3PT	$42.55
050	04817-00240	O-RING	$1.65
060	05411-00656	PIN, SPRING	$1.49
070	TA150-37420	ASSY SHAFT	$227.91
080	TA040-34234	ARM, INTERNAL LIFT	$192.83
080	TC650-34230	ARM,HYDRAULIC	$192.49
090	34150-37490	COLLAR (LIFT ARM)	$7.59
100	34150-37480	COLLAR (LIFT ARM)	$8.30
110	04817-06400	O-RING	$6.34
110	04816-06400	O-RING	$4.42
120	04817-50450	O RING	$4.42
120	04816-50450	O-RING	$2.37
130	TC650-34610	ARM,LIFT	$193.09
140	04612-00400	CIR-CLIP, EXTERNAL 40mm	$1.49
150	TA150-37720	LINK 2, CONTROL	$12.21
160	01754-50812	BOLT M8x1.25x12 mm ***	$2.59
170	30442-37690	PIN, LIFT LEVER	$19.88
180	04011-50180	WASHER, FLAT 18MM (19MM IDX34MM OD) ***	$0.99
190	04512-70160	WASHER,SPRING	$0.99
200	02174-50160	NUT,HEX M16x2 4T JIS ***	$1.49
210	34150-37640	PIN, SET	$5.72

Ref: 010 Part #: 34070-34214 Price: $91.51

Item: PISTON, HYD.

QTY:

Ref: 020 Part #: 04810-00800 Price: $7.02

Item: O RING

QTY:

Ref: 030 Part #: 31391-37330 Price: $23.30

Item: RING, BACK UP

QTY:

Ref: 030 Part #: 68241-62330 Price: $15.23

Item: RING, BACK-UP

QTY:

Ref: 040 Part #: 31351-37320 Price: $42.55

Item: ROD, HYD. PISTON 3PT

QTY:

Ref: 050 Part #: 04817-00240 Price: $1.65

Item: O-RING

QTY:

Ref: 060 Part #: 05411-00656 Price: $1.49

Item: PIN, SPRING

QTY:

Ref: 070 Part #: TA150-37420 Price: $227.91

Item: ASSY SHAFT

QTY:

Ref: 080 Part #: TA040-34234 Price: $192.83

Item: ARM, INTERNAL LIFT

QTY:

Ref: 080 Part #: TC650-34230 Price: $192.49

Item: ARM,HYDRAULIC

QTY:

Ref: 090 Part #: 34150-37490 Price: $7.59

Item: COLLAR (LIFT ARM)

QTY:

Ref: 100 Part #: 34150-37480 Price: $8.30

Item: COLLAR (LIFT ARM)

QTY:

Ref: 110 Part #: 04817-06400 Price: $6.34

Item: O-RING

QTY:

Ref: 110 Part #: 04816-06400 Price: $4.42

Item: O-RING

QTY:

Ref: 120 Part #: 04817-50450 Price: $4.42

Item: O RING

QTY:

Ref: 120 Part #: 04816-50450 Price: $2.37

Item: O-RING

QTY:

Ref: 130 Part #: TC650-34610 Price: $193.09

Item: ARM,LIFT

QTY:

Ref: 140 Part #: 04612-00400 Price: $1.49

Item: CIR-CLIP, EXTERNAL 40mm

QTY:

Ref: 150 Part #: TA150-37720 Price: $12.21

Item: LINK 2, CONTROL

QTY:

Ref: 160 Part #: 01754-50812 Price: $2.59

Item: BOLT M8x1.25x12 mm ***

QTY:

Ref: 170 Part #: 30442-37690 Price: $19.88

Item: PIN, LIFT LEVER

QTY:

Ref: 180 Part #: 04011-50180 Price: $0.99

Item: WASHER, FLAT 18MM (19MM IDX34MM OD) ***

QTY:

Ref: 190 Part #: 04512-70160 Price: $0.99

Item: WASHER,SPRING

QTY:

Ref: 200 Part #: 02174-50160 Price: $1.49

Item: NUT,HEX M16x2 4T JIS ***

QTY:

Ref: 210 Part #: 34150-37640 Price: $5.72

Item: PIN, SET

QTY:

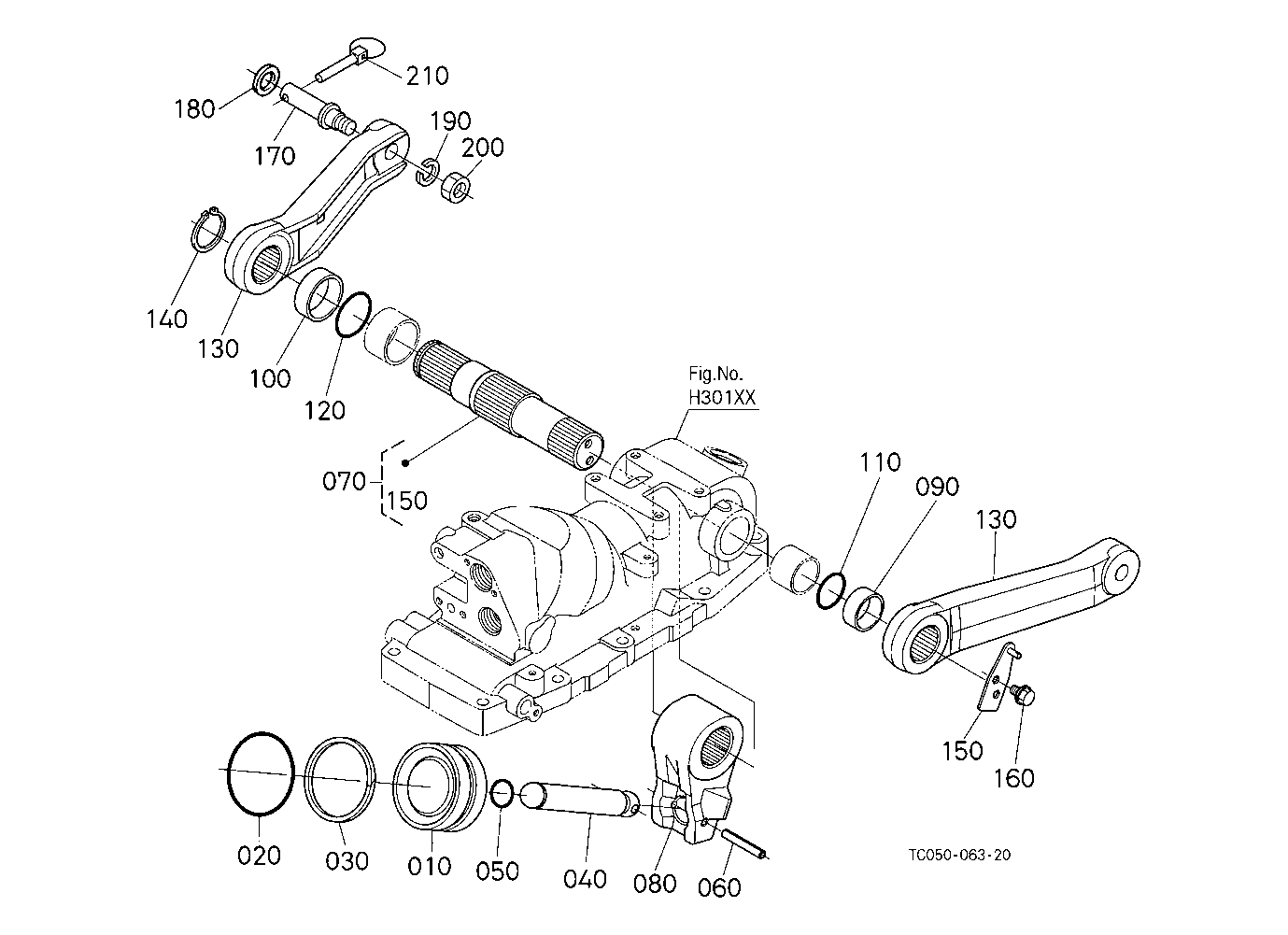

KUBOTA MX5100H PARTS HYDRAULIC SYSTEM H32000 LIFT ARM
