KUBOTA | Buy Direct | Order Online

Ref	Part #	Item	Price
010	TC050-26722	SHAFT, DIFF GEAR LH	$254.05
020	08101-06309	BEARING, BALL (RAD45/100	$32.66
030	04611-01000	CIR-CLIP, INTERNAL	$13.37
050	TC050-27110	AXLE, REAR	$1,419.41
060	TC050-27140	SPACER	$120.51
080	08101-06012	BEARING,BALL(RADIAL60/95) ***	$41.83
090	04611-00950	CIR-CLIP, INTERNAL	$11.63
100	TC250-48250	SEAL,OIL	$48.59
100	TC250-48250	SEAL,OIL	$48.59
110	T1150-27150	BEARING, BALL (RADIAL)	$45.76
120	70631-15730	NUT	$49.61
130	T1170-26830	GEAR, 67T	$651.33
140	TC250-27330	CASE, REAR AXLE LH	$1,325.79
150	35860-79150	BEARING, BALL (RADIAL) 35/80	$46.98
160	01133-51035	BOLT M10x1.25x35 mm ***	$1.82
170	T1170-27380	BOLT, M12 7T R AXLE CASE LH	$12.54
180	34070-20313	STUD	$3.20
190	37300-14190	NUT	$2.60
190	TC331-80970	NUT, M10,H,CR	$2.59
200	04512-50100	WASHER,M10 SPRING LOCK ***	$0.99
210	05012-01018	PIN, STRAIGHT	$1.00
220	31220-14290	PLUG	$1.07

Ref: 010 Part #: TC050-26722 Price: $254.05

Item: SHAFT, DIFF GEAR LH

QTY:

Ref: 020 Part #: 08101-06309 Price: $32.66

Item: BEARING, BALL (RAD45/100

QTY:

Ref: 030 Part #: 04611-01000 Price: $13.37

Item: CIR-CLIP, INTERNAL

QTY:

Ref: 050 Part #: TC050-27110 Price: $1,419.41

Item: AXLE, REAR

QTY:

Ref: 060 Part #: TC050-27140 Price: $120.51

Item: SPACER

QTY:

Ref: 080 Part #: 08101-06012 Price: $41.83

Item: BEARING,BALL(RADIAL60/95) ***

QTY:

Ref: 090 Part #: 04611-00950 Price: $11.63

Item: CIR-CLIP, INTERNAL

QTY:

Ref: 100 Part #: TC250-48250 Price: $48.59

Item: SEAL,OIL

QTY:

Ref: 100 Part #: TC250-48250 Price: $48.59

Item: SEAL,OIL

QTY:

Ref: 110 Part #: T1150-27150 Price: $45.76

Item: BEARING, BALL (RADIAL)

QTY:

Ref: 120 Part #: 70631-15730 Price: $49.61

Item: NUT

QTY:

Ref: 130 Part #: T1170-26830 Price: $651.33

Item: GEAR, 67T

QTY:

Ref: 140 Part #: TC250-27330 Price: $1,325.79

Item: CASE, REAR AXLE LH

QTY:

Ref: 150 Part #: 35860-79150 Price: $46.98

Item: BEARING, BALL (RADIAL) 35/80

QTY:

Ref: 160 Part #: 01133-51035 Price: $1.82

Item: BOLT M10x1.25x35 mm ***

QTY:

Ref: 170 Part #: T1170-27380 Price: $12.54

Item: BOLT, M12 7T R AXLE CASE LH

QTY:

Ref: 180 Part #: 34070-20313 Price: $3.20

Item: STUD

QTY:

Ref: 190 Part #: 37300-14190 Price: $2.60

Item: NUT

QTY:

Ref: 190 Part #: TC331-80970 Price: $2.59

Item: NUT, M10,H,CR

QTY:

Ref: 200 Part #: 04512-50100 Price: $0.99

Item: WASHER,M10 SPRING LOCK ***

QTY:

Ref: 210 Part #: 05012-01018 Price: $1.00

Item: PIN, STRAIGHT

QTY:

Ref: 220 Part #: 31220-14290 Price: $1.07

Item: PLUG

QTY:

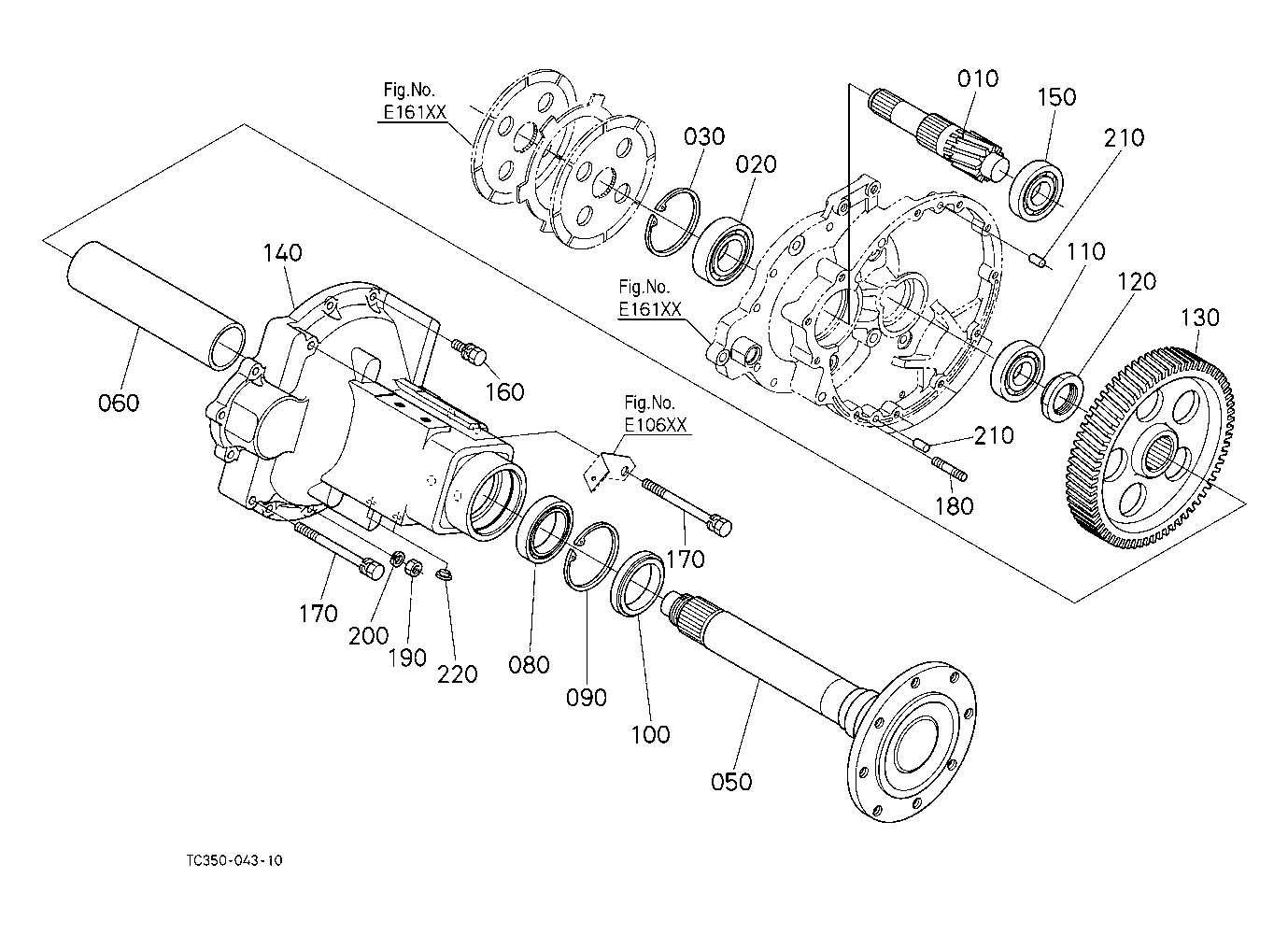

KUBOTA MX5100H PARTS REAR AXLE BRAKE E15100 REAR AXLE LH
