KUBOTA | Buy Direct | Order Online

Ref	Part #	Item	Price
005	68841-41040	ASSY SHAFT	$2,116.31
010	68841-41143	SHAFT	$2,280.13
010	68847-41143	SHAFT ***	$2,236.71
020	68841-41150	BUSHING	$187.88
030	68841-41160	COLLAR	$32.25
040	68841-41170	PIN, CENTER	$181.35
050	68861-41180	COVER,PIN CTR	$18.81
050	68867-41180	COVER	$21.99
060, 080	01133-51016	BOLT M10x1.25x16 mm ***	$1.31
070	68841-41183	SUPPORT, CABLE	$40.89
070	68841-41183	SUPPORT, CABLE	$40.89
070	68847-41180	SUPPORT, CABLE	$45.20
090	68841-41190	COLLAR,THRUST	$49.67
100	68841-41210	SEAL, DUST	$50.59
110	06613-30010	NIPPLE, GREASE	$1.72
120	68841-41240	COLLAR,THRUST	$80.38
130	68841-41250	COLLAR,THRUST	$108.56
140	68841-41260	SEAL, DUST	$50.59
150	68841-41270	PLATE,END	$80.38
150	68847-41270	PLATE, END	$90.05
160	04811-51000	O RING	$4.45
170	01176-71435	BOLT	$1.59
180	35358-27370	WASHER	$14.27

Ref: 005 Part #: 68841-41040 Price: $2,116.31

Item: ASSY SHAFT

QTY:

Ref: 010 Part #: 68841-41143 Price: $2,280.13

Item: SHAFT

QTY:

Ref: 010 Part #: 68847-41143 Price: $2,236.71

Item: SHAFT ***

QTY:

Ref: 020 Part #: 68841-41150 Price: $187.88

Item: BUSHING

QTY:

Ref: 030 Part #: 68841-41160 Price: $32.25

Item: COLLAR

QTY:

Ref: 040 Part #: 68841-41170 Price: $181.35

Item: PIN, CENTER

QTY:

Ref: 050 Part #: 68861-41180 Price: $18.81

Item: COVER,PIN CTR

QTY:

Ref: 050 Part #: 68867-41180 Price: $21.99

Item: COVER

QTY:

Ref: 060080 Part #: 01133-51016 Price: $1.31

Item: BOLT M10x1.25x16 mm ***

QTY:

Ref: 070 Part #: 68841-41183 Price: $40.89

Item: SUPPORT, CABLE

QTY:

Ref: 070 Part #: 68841-41183 Price: $40.89

Item: SUPPORT, CABLE

QTY:

Ref: 070 Part #: 68847-41180 Price: $45.20

Item: SUPPORT, CABLE

QTY:

Ref: 090 Part #: 68841-41190 Price: $49.67

Item: COLLAR,THRUST

QTY:

Ref: 100 Part #: 68841-41210 Price: $50.59

Item: SEAL, DUST

QTY:

Ref: 110 Part #: 06613-30010 Price: $1.72

Item: NIPPLE, GREASE

QTY:

Ref: 120 Part #: 68841-41240 Price: $80.38

Item: COLLAR,THRUST

QTY:

Ref: 130 Part #: 68841-41250 Price: $108.56

Item: COLLAR,THRUST

QTY:

Ref: 140 Part #: 68841-41260 Price: $50.59

Item: SEAL, DUST

QTY:

Ref: 150 Part #: 68841-41270 Price: $80.38

Item: PLATE,END

QTY:

Ref: 150 Part #: 68847-41270 Price: $90.05

Item: PLATE, END

QTY:

Ref: 160 Part #: 04811-51000 Price: $4.45

Item: O RING

QTY:

Ref: 170 Part #: 01176-71435 Price: $1.59

Item: BOLT

QTY:

Ref: 180 Part #: 35358-27370 Price: $14.27

Item: WASHER

QTY:

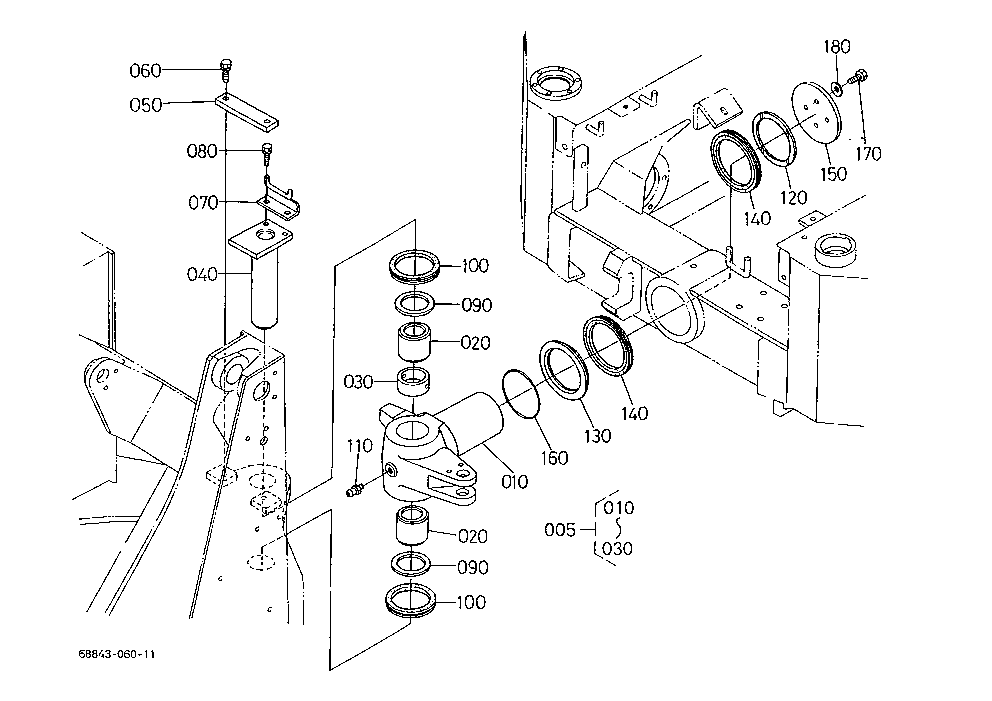

KUBOTA R310(OLD TYPE) PARTS FRAME AND BONNET S07700 CENTER PIN
