Ref	Part #	Item	Price
010	68841-34500	CONTROL,STEERING	$3,081.64
010	68841-34503	CONTROLLER STEERING ***	$3,081.64
020	68817-94510	SCREW	$8.57
030	35999-22250	CAP, END	$379.67
040	68841-93510	GEROTOR	$1,428.94
045	R1401-94540	ASSY SCREW	$46.61
050	68841-93520	SPACER	$45.00
060	35999-22230	PLATE, SPACER	$94.45
070	35999-22220	DRIVE	$322.93
080	68841-93010	PARTS, CONTROL ASSY	$3,141.51
080	68841-93760	ASSY VALVE CONTROL	$1,174.16
090	35999-22200	SPRING, CENTER RING	$7.59
100	35999-22190	SPRING, FLAT	$10.64
110	35999-22180	PIN	$12.85
120	35999-22170	SCREW, SET	$25.74
125	R1401-94660	SCREW	$26.58
130	35999-22160	O-RING	$5.24
135	R1401-94670	BALL	$10.08
140	R1401-94650	O RING	$18.36
145	35999-22150	SEAT, CHECK	$61.43
150	35999-22140	O-RING ***	$5.24
160	35999-22130	BALL	$3.23
170	35999-22120	RETAINER, CHECK BALL	$4.22
180	35999-22080	O RING	$15.40
190	35999-22100	BEARING, RACE	$32.85
200	35999-22090	BEARING, THRUST NEEDLE	$54.01
210	35999-22040	O RING	$12.87
220	35999-22110	SEAL, DUST ***	$38.48
230	35999-22050	SEAL, OIL	$46.79
240	35999-22070	RING, RETAINING	$10.40
250	35999-22060	BUSH, GROUND SEAL	$106.07
260	68841-93770	KIT SEAL	$49.85
260	68841-93600	KIT, SEAL (BODY)	$175.66
270	68841-93020	ASSY. SPOOL HSG.	$1,340.46
280	68841-93530	SPRING,CNTRL	$33.30
290	68841-93540	PLUG,SPOOL ***	$84.95
300	68841-93550	BALL, PS	$5.49
310	68841-93560	GUIDE,BALL	$33.30
320	68841-93570	SPRING,RELIEF	$34.30
330	68841-93580	PLUG,RELIEF	$65.36
340	68841-93590	SCREW ADJ	$50.90
350	68841-93610	NUT,LOCK	$5.24
360	68841-93620	NUT,CAP	$53.55
370	68841-93630	SCREW,SET	$69.60
380	68841-93640	SPRING,RELIEF	$37.08
390	68841-93650	GUIDE,BALL	$16.73
400	68841-93660	BALL	$10.28
410	68841-93670	BALL	$10.28
420	68841-93030	ASSY PLUG RETAINER	$93.95
430	68841-93040	ASSY PLUG RETAINER	$163.09
440	68841-93050	VALVE, CHECK ASSY ***	$105.40
450	68841-93680	O-RING	$6.76
460	68841-93690	O-RING	$11.65
470	68841-93710	RING, BACK-UP	$16.38
480	68841-93720	O-RING	$9.89
490	68841-93730	O-RING	$11.65
500	68841-93740	O-RING	$12.01
510	35999-22320	O-RING	$10.20
520	68841-93750	BOLT	$14.17
530	68841-93700	KIT SEAL (VALVE)	$33.51

Ref: 010 Part #: 68841-34500 Price: $3,081.64

Item: CONTROL,STEERING

QTY:

Ref: 010 Part #: 68841-34503 Price: $3,081.64

Item: CONTROLLER STEERING ***

QTY:

Ref: 020 Part #: 68817-94510 Price: $8.57

Item: SCREW

QTY:

Ref: 030 Part #: 35999-22250 Price: $379.67

Item: CAP, END

QTY:

Ref: 040 Part #: 68841-93510 Price: $1,428.94

Item: GEROTOR

QTY:

Ref: 045 Part #: R1401-94540 Price: $46.61

Item: ASSY SCREW

QTY:

Ref: 050 Part #: 68841-93520 Price: $45.00

Item: SPACER

QTY:

Ref: 060 Part #: 35999-22230 Price: $94.45

Item: PLATE, SPACER

QTY:

Ref: 070 Part #: 35999-22220 Price: $322.93

Item: DRIVE

QTY:

Ref: 080 Part #: 68841-93010 Price: $3,141.51

Item: PARTS, CONTROL ASSY

QTY:

Ref: 080 Part #: 68841-93760 Price: $1,174.16

Item: ASSY VALVE CONTROL

QTY:

Ref: 090 Part #: 35999-22200 Price: $7.59

Item: SPRING, CENTER RING

QTY:

Ref: 100 Part #: 35999-22190 Price: $10.64

Item: SPRING, FLAT

QTY:

Ref: 110 Part #: 35999-22180 Price: $12.85

Item: PIN

QTY:

Ref: 120 Part #: 35999-22170 Price: $25.74

Item: SCREW, SET

QTY:

Ref: 125 Part #: R1401-94660 Price: $26.58

Item: SCREW

QTY:

Ref: 130 Part #: 35999-22160 Price: $5.24

Item: O-RING

QTY:

Ref: 135 Part #: R1401-94670 Price: $10.08

Item: BALL

QTY:

Ref: 140 Part #: R1401-94650 Price: $18.36

Item: O RING

QTY:

Ref: 145 Part #: 35999-22150 Price: $61.43

Item: SEAT, CHECK

QTY:

Ref: 150 Part #: 35999-22140 Price: $5.24

Item: O-RING ***

QTY:

Ref: 160 Part #: 35999-22130 Price: $3.23

Item: BALL

QTY:

Ref: 170 Part #: 35999-22120 Price: $4.22

Item: RETAINER, CHECK BALL

QTY:

Ref: 180 Part #: 35999-22080 Price: $15.40

Item: O RING

QTY:

Ref: 190 Part #: 35999-22100 Price: $32.85

Item: BEARING, RACE

QTY:

Ref: 200 Part #: 35999-22090 Price: $54.01

Item: BEARING, THRUST NEEDLE

QTY:

Ref: 210 Part #: 35999-22040 Price: $12.87

Item: O RING

QTY:

Ref: 220 Part #: 35999-22110 Price: $38.48

Item: SEAL, DUST ***

QTY:

Ref: 230 Part #: 35999-22050 Price: $46.79

Item: SEAL, OIL

QTY:

Ref: 240 Part #: 35999-22070 Price: $10.40

Item: RING, RETAINING

QTY:

Ref: 250 Part #: 35999-22060 Price: $106.07

Item: BUSH, GROUND SEAL

QTY:

Ref: 260 Part #: 68841-93770 Price: $49.85

Item: KIT SEAL

QTY:

Ref: 260 Part #: 68841-93600 Price: $175.66

Item: KIT, SEAL (BODY)

QTY:

Ref: 270 Part #: 68841-93020 Price: $1,340.46

Item: ASSY. SPOOL HSG.

QTY:

Ref: 280 Part #: 68841-93530 Price: $33.30

Item: SPRING,CNTRL

QTY:

Ref: 290 Part #: 68841-93540 Price: $84.95

Item: PLUG,SPOOL ***

QTY:

Ref: 300 Part #: 68841-93550 Price: $5.49

Item: BALL, PS

QTY:

Ref: 310 Part #: 68841-93560 Price: $33.30

Item: GUIDE,BALL

QTY:

Ref: 320 Part #: 68841-93570 Price: $34.30

Item: SPRING,RELIEF

QTY:

Ref: 330 Part #: 68841-93580 Price: $65.36

Item: PLUG,RELIEF

QTY:

Ref: 340 Part #: 68841-93590 Price: $50.90

Item: SCREW ADJ

QTY:

Ref: 350 Part #: 68841-93610 Price: $5.24

Item: NUT,LOCK

QTY:

Ref: 360 Part #: 68841-93620 Price: $53.55

Item: NUT,CAP

QTY:

Ref: 370 Part #: 68841-93630 Price: $69.60

Item: SCREW,SET

QTY:

Ref: 380 Part #: 68841-93640 Price: $37.08

Item: SPRING,RELIEF

QTY:

Ref: 390 Part #: 68841-93650 Price: $16.73

Item: GUIDE,BALL

QTY:

Ref: 400 Part #: 68841-93660 Price: $10.28

Item: BALL

QTY:

Ref: 410 Part #: 68841-93670 Price: $10.28

Item: BALL

QTY:

Ref: 420 Part #: 68841-93030 Price: $93.95

Item: ASSY PLUG RETAINER

QTY:

Ref: 430 Part #: 68841-93040 Price: $163.09

Item: ASSY PLUG RETAINER

QTY:

Ref: 440 Part #: 68841-93050 Price: $105.40

Item: VALVE, CHECK ASSY ***

QTY:

Ref: 450 Part #: 68841-93680 Price: $6.76

Item: O-RING

QTY:

Ref: 460 Part #: 68841-93690 Price: $11.65

Item: O-RING

QTY:

Ref: 470 Part #: 68841-93710 Price: $16.38

Item: RING, BACK-UP

QTY:

Ref: 480 Part #: 68841-93720 Price: $9.89

Item: O-RING

QTY:

Ref: 490 Part #: 68841-93730 Price: $11.65

Item: O-RING

QTY:

Ref: 500 Part #: 68841-93740 Price: $12.01

Item: O-RING

QTY:

Ref: 510 Part #: 35999-22320 Price: $10.20

Item: O-RING

QTY:

Ref: 520 Part #: 68841-93750 Price: $14.17

Item: BOLT

QTY:

Ref: 530 Part #: 68841-93700 Price: $33.51

Item: KIT SEAL (VALVE)

QTY:

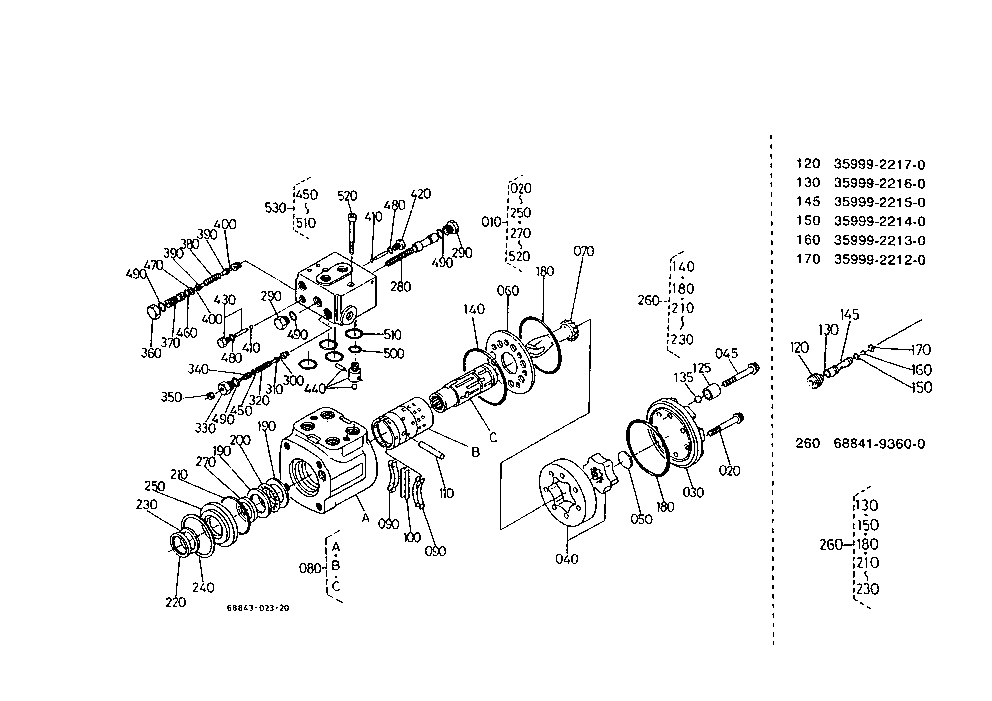

KUBOTA R310(OLD TYPE) PARTS STEERING S04500 STEERING CONTROLLER(COMPONENT PARTS)
