Ref	Part #	Item	Price
010	R2401-41312	FRAME, REAR	$10,167.28
010	R2401-41315	FRAME REAR S/N >=10195	Call for price
020	08511-11050	BUSHING	$82.78
030	R1401-41230	COLLAR	$39.26
040	06616-25010	NIPPLE , GREASE 1/8-27 NPTF ***	$1.72
050	R1401-41330	CUSHION	$51.03
060	01370-11225	BOLT M12x1.25x25 mm	$2.59
070	R2401-41360	STEP LH ***	$178.94
080	R2401-41370	STEP RH	$178.94
090	01135-71025	BOLT M10x1.25x25 mm *	$1.63
100	R1401-41690	COVER,FILTER	$37.36
110	01133-71020	BOLT M10x1.25x20 mm	$1.31
120	R1401-41400	KIT,COVER	$115.67
120	R1401-41400	KIT,COVER	$115.67
130	R1401-41400	KIT,COVER	$115.67
130	R1401-41400	KIT,COVER	$115.67
140	R1401-41440	NUT	$12.47
150	34070-45580	SCREW, CR-REC-BD-HD	$0.99
160	R1401-41450	WASHER, PLAIN	$1.00

Ref: 010 Part #: R2401-41312 Price: $10,167.28

Item: FRAME, REAR

QTY:

Ref: 010 Part #: R2401-41315 Price: Call for price

Item: FRAME REAR S/N >=10195

QTY:

Ref: 020 Part #: 08511-11050 Price: $82.78

Item: BUSHING

QTY:

Ref: 030 Part #: R1401-41230 Price: $39.26

Item: COLLAR

QTY:

Ref: 040 Part #: 06616-25010 Price: $1.72

Item: NIPPLE , GREASE 1/8-27 NPTF ***

QTY:

Ref: 050 Part #: R1401-41330 Price: $51.03

Item: CUSHION

QTY:

Ref: 060 Part #: 01370-11225 Price: $2.59

Item: BOLT M12x1.25x25 mm

QTY:

Ref: 070 Part #: R2401-41360 Price: $178.94

Item: STEP LH ***

QTY:

Ref: 080 Part #: R2401-41370 Price: $178.94

Item: STEP RH

QTY:

Ref: 090 Part #: 01135-71025 Price: $1.63

Item: BOLT M10x1.25x25 mm *

QTY:

Ref: 100 Part #: R1401-41690 Price: $37.36

Item: COVER,FILTER

QTY:

Ref: 110 Part #: 01133-71020 Price: $1.31

Item: BOLT M10x1.25x20 mm

QTY:

Ref: 120 Part #: R1401-41400 Price: $115.67

Item: KIT,COVER

QTY:

Ref: 120 Part #: R1401-41400 Price: $115.67

Item: KIT,COVER

QTY:

Ref: 130 Part #: R1401-41400 Price: $115.67

Item: KIT,COVER

QTY:

Ref: 130 Part #: R1401-41400 Price: $115.67

Item: KIT,COVER

QTY:

Ref: 140 Part #: R1401-41440 Price: $12.47

Item: NUT

QTY:

Ref: 150 Part #: 34070-45580 Price: $0.99

Item: SCREW, CR-REC-BD-HD

QTY:

Ref: 160 Part #: R1401-41450 Price: $1.00

Item: WASHER, PLAIN

QTY:

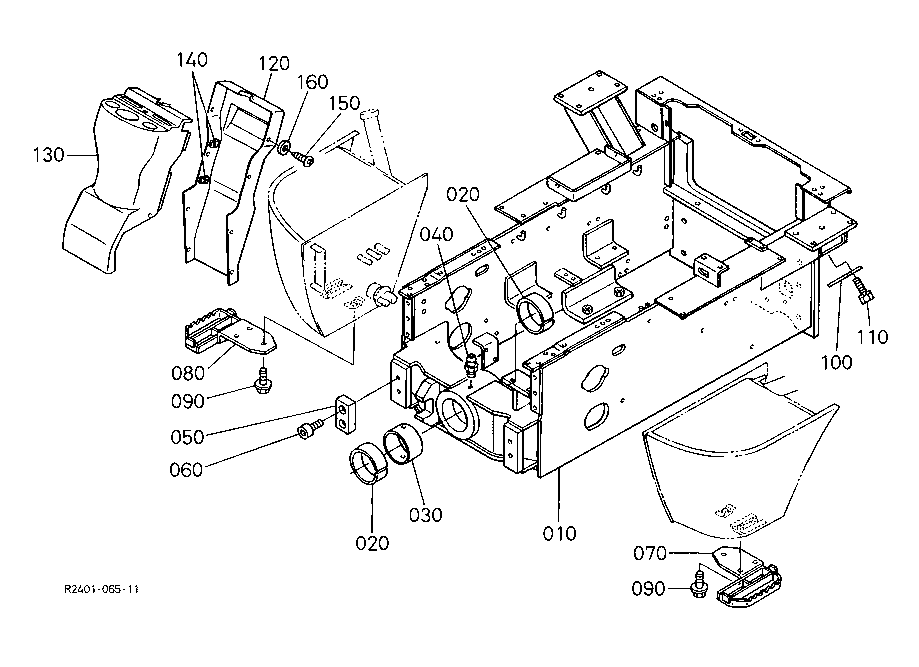

KUBOTA R420 PARTS CHASSIS S14800 REAR FRAME
