KUBOTA | Buy Direct | Order Online

Ref	Part #	Item	Price
010	HR150-42470	PIPE, MUFFLER	$64.70
010	HR150-42470	PIPE, MUFFLER	$64.70
020	T0070-16420	GASKET, MUFFLER NA	$4.53
030	01123-70825	BOLT M8x1.25x25 mm	$1.04
040	HR150-42480	PIPE	$268.39
050, 110	68493-42490	PIPE BAND	$22.81
060	01153-50875	BOLT M8x1.25x75 mm ***	$2.33
070, 130, 240	04013-70080	WASHER, PLAIN *	$0.99
080, 140, 250	04512-70080	WASHER,SPRING	$0.99
090, 150, 260	02114-70080	NUT	$0.99
100	R1401-42412	MUFFLER	$622.39
100	R1401-42412	MUFFLER	$622.39
120, 230	01153-70880	BOLT M8x1.25x80 mm	$1.17
160	R1401-42420	BRACKET,MUFFLER ***	$141.16
160	R2401-42420	BRACKET, MUFFLER	$124.01
170	01133-71020	BOLT M10x1.25x20 mm	$1.31
180	69284-42420	BAND, MUFFLER	$21.66
190	01133-51016	BOLT M10x1.25x16 mm ***	$1.31
200	02118-70100	NUT	$0.99
210	R1401-42490	PIPE, MUFFLER	$53.42
220	68271-42540	BAND PIPE	$10.14
270	R2401-92900	KIT, BRACKET	$532.26

Ref: 010 Part #: HR150-42470 Price: $64.70

Item: PIPE, MUFFLER

QTY:

Ref: 010 Part #: HR150-42470 Price: $64.70

Item: PIPE, MUFFLER

QTY:

Ref: 020 Part #: T0070-16420 Price: $4.53

Item: GASKET, MUFFLER NA

QTY:

Ref: 030 Part #: 01123-70825 Price: $1.04

Item: BOLT M8x1.25x25 mm

QTY:

Ref: 040 Part #: HR150-42480 Price: $268.39

Item: PIPE

QTY:

Ref: 050110 Part #: 68493-42490 Price: $22.81

Item: PIPE BAND

QTY:

Ref: 060 Part #: 01153-50875 Price: $2.33

Item: BOLT M8x1.25x75 mm ***

QTY:

Ref: 070130240 Part #: 04013-70080 Price: $0.99

Item: WASHER, PLAIN *

QTY:

Ref: 080140250 Part #: 04512-70080 Price: $0.99

Item: WASHER,SPRING

QTY:

Ref: 090150260 Part #: 02114-70080 Price: $0.99

Item: NUT

QTY:

Ref: 100 Part #: R1401-42412 Price: $622.39

Item: MUFFLER

QTY:

Ref: 100 Part #: R1401-42412 Price: $622.39

Item: MUFFLER

QTY:

Ref: 120230 Part #: 01153-70880 Price: $1.17

Item: BOLT M8x1.25x80 mm

QTY:

Ref: 160 Part #: R1401-42420 Price: $141.16

Item: BRACKET,MUFFLER ***

QTY:

Ref: 160 Part #: R2401-42420 Price: $124.01

Item: BRACKET, MUFFLER

QTY:

Ref: 170 Part #: 01133-71020 Price: $1.31

Item: BOLT M10x1.25x20 mm

QTY:

Ref: 180 Part #: 69284-42420 Price: $21.66

Item: BAND, MUFFLER

QTY:

Ref: 190 Part #: 01133-51016 Price: $1.31

Item: BOLT M10x1.25x16 mm ***

QTY:

Ref: 200 Part #: 02118-70100 Price: $0.99

Item: NUT

QTY:

Ref: 210 Part #: R1401-42490 Price: $53.42

Item: PIPE, MUFFLER

QTY:

Ref: 220 Part #: 68271-42540 Price: $10.14

Item: BAND PIPE

QTY:

Ref: 270 Part #: R2401-92900 Price: $532.26

Item: KIT, BRACKET

QTY:

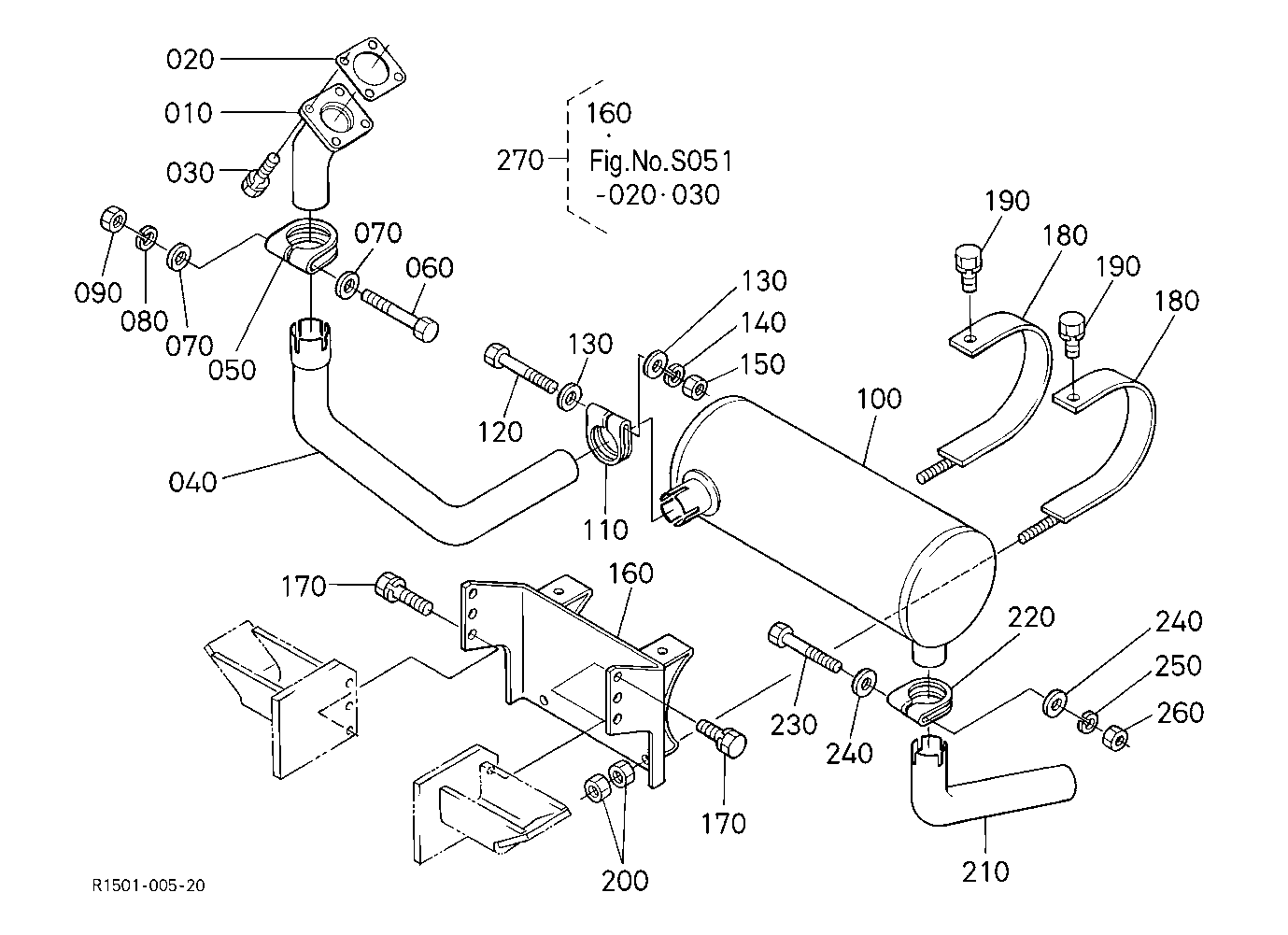

KUBOTA R420 PARTS ENGINE S053-1 MUFFLER
