Ref	Part #	Item	Price
010	R1431-49560	HOSE(PRESSURE,A/C)	$1,224.43
015, 115	33760-56960	O-RING	$10.20
016	33770-96290	ASSY SWITCH, PRESSURE *	$182.93
017	T1415-72360	CAP (H)	$4.94
018	01754-50620	BOLT M6x1.0x20 mm ***	$1.95
020	R1411-49570	HOSE	$881.42
030	R1411-49580	INSULATION	$60.93
040	R1431-49592	COVER(A/C,HOSE)	$137.88
050	03034-50512	SCREW	$0.99
060	R1411-49610	TRIM	$67.43
065	R1411-49870	TRIM(COVER,HOSE,UPPE	$13.19
090	R1431-49210	HOSE(DISCHARGE,A/C)	$1,028.94
095	33760-56970	O-RING	$10.20
100, 116, 117, 150	01754-50625	BOLT,FLANGE M6x1.0x25 mm ***	$2.13
110	R1431-49220	HOSE(LIQUID,A/C)	$523.99
120	R1411-49230	HOSE	$734.53
140	R1431-49240	HOSE(SUCTION,A/C)	$673.35
145	33760-56980	O-RING	$10.20
147	T1855-72350	CAP (L)	$4.94
160	R1431-46870	CLIP(30)	$7.24
170	03034-50816	SCREW	$0.99

Ref: 010 Part #: R1431-49560 Price: $1,224.43

Item: HOSE(PRESSURE,A/C)

QTY:

Ref: 015115 Part #: 33760-56960 Price: $10.20

Item: O-RING

QTY:

Ref: 016 Part #: 33770-96290 Price: $182.93

Item: ASSY SWITCH, PRESSURE *

QTY:

Ref: 017 Part #: T1415-72360 Price: $4.94

Item: CAP (H)

QTY:

Ref: 018 Part #: 01754-50620 Price: $1.95

Item: BOLT M6x1.0x20 mm ***

QTY:

Ref: 020 Part #: R1411-49570 Price: $881.42

Item: HOSE

QTY:

Ref: 030 Part #: R1411-49580 Price: $60.93

Item: INSULATION

QTY:

Ref: 040 Part #: R1431-49592 Price: $137.88

Item: COVER(A/C,HOSE)

QTY:

Ref: 050 Part #: 03034-50512 Price: $0.99

Item: SCREW

QTY:

Ref: 060 Part #: R1411-49610 Price: $67.43

Item: TRIM

QTY:

Ref: 065 Part #: R1411-49870 Price: $13.19

Item: TRIM(COVER,HOSE,UPPE

QTY:

Ref: 090 Part #: R1431-49210 Price: $1,028.94

Item: HOSE(DISCHARGE,A/C)

QTY:

Ref: 095 Part #: 33760-56970 Price: $10.20

Item: O-RING

QTY:

Ref: 100116117150 Part #: 01754-50625 Price: $2.13

Item: BOLT,FLANGE M6x1.0x25 mm ***

QTY:

Ref: 110 Part #: R1431-49220 Price: $523.99

Item: HOSE(LIQUID,A/C)

QTY:

Ref: 120 Part #: R1411-49230 Price: $734.53

Item: HOSE

QTY:

Ref: 140 Part #: R1431-49240 Price: $673.35

Item: HOSE(SUCTION,A/C)

QTY:

Ref: 145 Part #: 33760-56980 Price: $10.20

Item: O-RING

QTY:

Ref: 147 Part #: T1855-72350 Price: $4.94

Item: CAP (L)

QTY:

Ref: 160 Part #: R1431-46870 Price: $7.24

Item: CLIP(30)

QTY:

Ref: 170 Part #: 03034-50816 Price: $0.99

Item: SCREW

QTY:

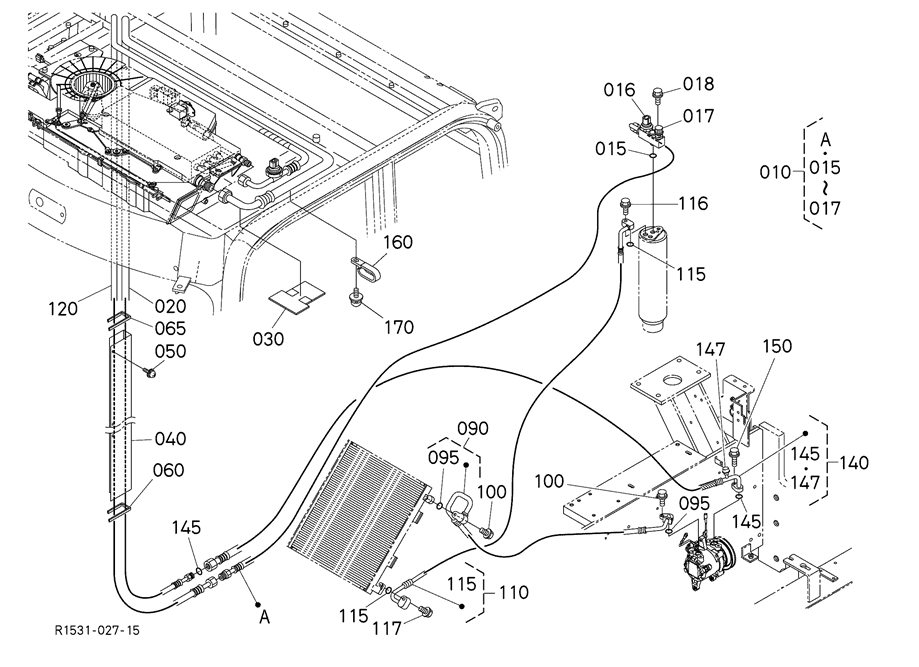

KUBOTA R430 PARTS OPERATORS PLATFORM N04100 CABIN (AIR CONDITIONER CONDENSER HOSE)
