Ref	Part #	Item	Price
010	09505-07212	SEAL, OIL	$10.79
020	68881-15210	COVER,BRAKE **	$892.78
020	68881-15210	COVER,BRAKE **	$892.78
030	68881-15653	GASKET, BRAKE NA	$8.47
040	01173-71285	BOLT M12x1.25x85 mm	$1.95
050, 150	04512-70120	WASHER,SPRING	$0.99
060	68881-15230	PLATE, BRAKE	$47.95
070	68881-15240	DISK, FRICTION ***	$169.10
080	68881-15250	PISTON	$52.28
090	68881-15260	SEAL,BRAKE	$17.32
100	68881-15270	SEAL,BRAKE	$17.32
110	68881-15610	PISTON	$109.13
120	68881-15600	KIT COVER, PISTON ***	$311.56
130	68881-15222	GASKET, BRAKE NA	$11.12
140	01173-71240	BOLT M12x1.25x40 mm	$1.68
160	05012-01025	PIN, STRAIGHT	$1.00
170	05012-00820	PIN, STRAIGHT	$0.99
180	68841-15632	SPRING, BRAKE 1	$4.55
190	68841-15640	SPRING, BRAKE 2	$4.36
200	68881-15630	RING, SEAL PISTON	$20.61
200	04811-51350	O-RING	$13.05
210	04811-51000	O RING	$4.45
210	68881-15640	RING, BRAKE PISTON	$13.91
220	68881-15660	PIN	$7.22
230	04811-10050	O-RING	$1.91
240	01173-71220	BOLT M12x1.25x20 mm	$1.31
250	04013-70120	WASHER,PLAIN	$0.99
260	06312-10010	PLUG ***	$2.72
260	68551-32280	CONNECTOR	$33.48
270	68551-24450	BLEEDER, AIR	$4.94
280	06111-52023	JOINT, PIPE	$6.94

Ref: 010 Part #: 09505-07212 Price: $10.79

Item: SEAL, OIL

QTY:

Ref: 020 Part #: 68881-15210 Price: $892.78

Item: COVER,BRAKE **

QTY:

Ref: 020 Part #: 68881-15210 Price: $892.78

Item: COVER,BRAKE **

QTY:

Ref: 030 Part #: 68881-15653 Price: $8.47

Item: GASKET, BRAKE NA

QTY:

Ref: 040 Part #: 01173-71285 Price: $1.95

Item: BOLT M12x1.25x85 mm

QTY:

Ref: 050150 Part #: 04512-70120 Price: $0.99

Item: WASHER,SPRING

QTY:

Ref: 060 Part #: 68881-15230 Price: $47.95

Item: PLATE, BRAKE

QTY:

Ref: 070 Part #: 68881-15240 Price: $169.10

Item: DISK, FRICTION ***

QTY:

Ref: 080 Part #: 68881-15250 Price: $52.28

Item: PISTON

QTY:

Ref: 090 Part #: 68881-15260 Price: $17.32

Item: SEAL,BRAKE

QTY:

Ref: 100 Part #: 68881-15270 Price: $17.32

Item: SEAL,BRAKE

QTY:

Ref: 110 Part #: 68881-15610 Price: $109.13

Item: PISTON

QTY:

Ref: 120 Part #: 68881-15600 Price: $311.56

Item: KIT COVER, PISTON ***

QTY:

Ref: 130 Part #: 68881-15222 Price: $11.12

Item: GASKET, BRAKE NA

QTY:

Ref: 140 Part #: 01173-71240 Price: $1.68

Item: BOLT M12x1.25x40 mm

QTY:

Ref: 160 Part #: 05012-01025 Price: $1.00

Item: PIN, STRAIGHT

QTY:

Ref: 170 Part #: 05012-00820 Price: $0.99

Item: PIN, STRAIGHT

QTY:

Ref: 180 Part #: 68841-15632 Price: $4.55

Item: SPRING, BRAKE 1

QTY:

Ref: 190 Part #: 68841-15640 Price: $4.36

Item: SPRING, BRAKE 2

QTY:

Ref: 200 Part #: 68881-15630 Price: $20.61

Item: RING, SEAL PISTON

QTY:

Ref: 200 Part #: 04811-51350 Price: $13.05

Item: O-RING

QTY:

Ref: 210 Part #: 04811-51000 Price: $4.45

Item: O RING

QTY:

Ref: 210 Part #: 68881-15640 Price: $13.91

Item: RING, BRAKE PISTON

QTY:

Ref: 220 Part #: 68881-15660 Price: $7.22

Item: PIN

QTY:

Ref: 230 Part #: 04811-10050 Price: $1.91

Item: O-RING

QTY:

Ref: 240 Part #: 01173-71220 Price: $1.31

Item: BOLT M12x1.25x20 mm

QTY:

Ref: 250 Part #: 04013-70120 Price: $0.99

Item: WASHER,PLAIN

QTY:

Ref: 260 Part #: 06312-10010 Price: $2.72

Item: PLUG ***

QTY:

Ref: 260 Part #: 68551-32280 Price: $33.48

Item: CONNECTOR

QTY:

Ref: 270 Part #: 68551-24450 Price: $4.94

Item: BLEEDER, AIR

QTY:

Ref: 280 Part #: 06111-52023 Price: $6.94

Item: JOINT, PIPE

QTY:

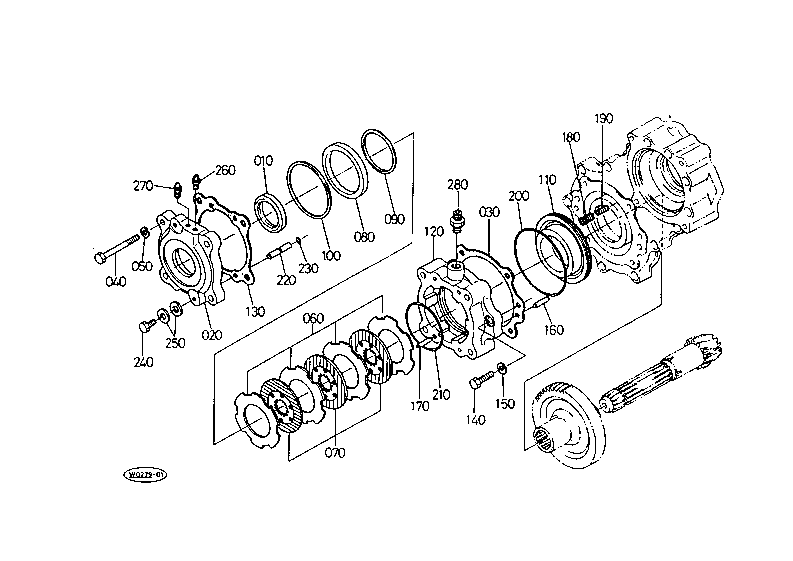

KUBOTA R510 OLD TYPE PARTS BRAKE S05100 BRAKE
