Ref	Part #	Item	Price
010	68841-38012	LGAT ASSY	$1,114.31
010	68881-38010	ASSY SEAT ***	$1,035.37
020	68841-38112	SEAT, COMP	$812.66
030	68841-38120	RAIL,SLIDE A	$89.43
040	68841-38130	RAIL,SLIDE B	$93.95
050	01123-70816	BOLT M8x1.25x16 mm	$0.99
060	04512-70080	WASHER,SPRING	$0.99
070	02114-70080	NUT	$0.99
080	68817-43390	ASSY BELT,SEAT ***	$287.67
080	68891-43390	BELT, SEAT ASSY	$592.49
090	68859-43380	NUT (UNIFAI)	$3.10
100	68817-43482	BRACKET, SMV	$18.35
110	01123-70820	BOLT M8x1.25x20 mm	$0.99

Ref: 010 Part #: 68841-38012 Price: $1,114.31

Item: LGAT ASSY

QTY:

Ref: 010 Part #: 68881-38010 Price: $1,035.37

Item: ASSY SEAT ***

QTY:

Ref: 020 Part #: 68841-38112 Price: $812.66

Item: SEAT, COMP

QTY:

Ref: 030 Part #: 68841-38120 Price: $89.43

Item: RAIL,SLIDE A

QTY:

Ref: 040 Part #: 68841-38130 Price: $93.95

Item: RAIL,SLIDE B

QTY:

Ref: 050 Part #: 01123-70816 Price: $0.99

Item: BOLT M8x1.25x16 mm

QTY:

Ref: 060 Part #: 04512-70080 Price: $0.99

Item: WASHER,SPRING

QTY:

Ref: 070 Part #: 02114-70080 Price: $0.99

Item: NUT

QTY:

Ref: 080 Part #: 68817-43390 Price: $287.67

Item: ASSY BELT,SEAT ***

QTY:

Ref: 080 Part #: 68891-43390 Price: $592.49

Item: BELT, SEAT ASSY

QTY:

Ref: 090 Part #: 68859-43380 Price: $3.10

Item: NUT (UNIFAI)

QTY:

Ref: 100 Part #: 68817-43482 Price: $18.35

Item: BRACKET, SMV

QTY:

Ref: 110 Part #: 01123-70820 Price: $0.99

Item: BOLT M8x1.25x20 mm

QTY:

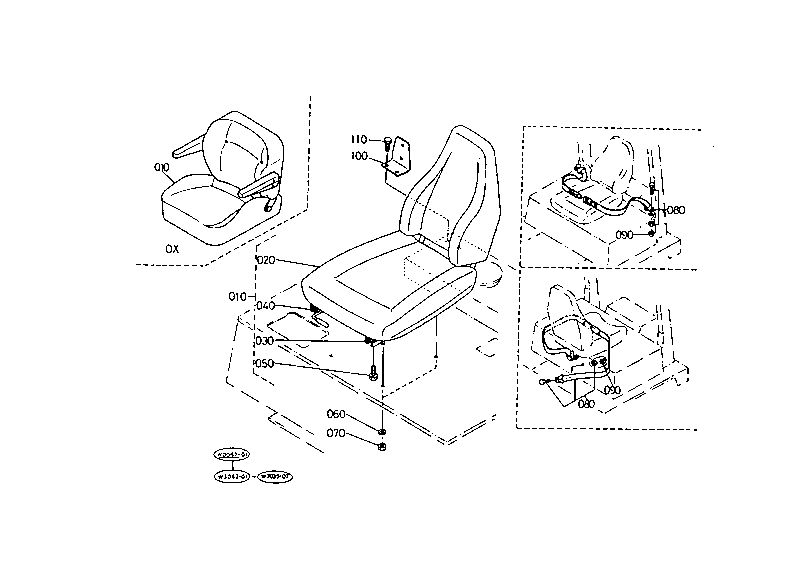

KUBOTA R510 OLD TYPE PARTS OPERATORS PLATFORM S09900 SEAT
