Ref	Part #	Item	Price
010	R2501-77310	BUCKET, 0.57 w/COUPLER ***	$14,898.04
020	R2501-77100	ASSY COUPLER	$8,282.78
040	90214-71132	PIN	$180.29
050	90214-71142	FORK	$219.23
060	05411-01022	PIN, SPRING	$2.37
070	05411-01032	PIN, SPRING	$2.60
080	90214-71163	ROD	$69.70
090	02174-50160	NUT,HEX M16x2 4T JIS ***	$1.49
100	90214-71182	SPRING	$32.74
110	R2401-71030	LINK	$39.26
120	R2401-71045	LEVER	$296.42
130	04011-50100	WASHER, PLAIN ***	$0.99
140	05511-50320	PIN, SPLIT ***	$0.99
150	68811-71262	PIN (40-133)	$81.55
160	68881-71282	PIN (45-133) *	$95.54
170	06611-15010	NIPPLE,GREASE	$2.34
180	68811-71240	KEY PLATE (RETAINING TAB) 40mm	$23.74
190	01133-71020	BOLT M10x1.25x20 mm	$1.31
200	68131-67720	SHIM 1	$7.45
210	68241-66923	SHIM (RL)	$4.26
220	70090-20713	KIT EDGE, AUX CUTTING (72Inch 6 Hole)	$835.91
230	68841-71423	BOLT	$9.78
240	02176-70140	NUT	$0.99
250, 300	04512-70140	WASHER,SPRING *	$0.99
260	RC201-66100	ASSY TEETH KTA 500MM	$146.38
270	RC101-66950	TOOTH (PAINTED BLUE) ***USE HENSLEY	$64.49
280	68131-66930	SHIM	$7.36
290	01176-61448	BOLT	$1.94
310	68131-66920	NUT	$24.00
320	69201-71390	SHIM	$7.52

Ref: 010 Part #: R2501-77310 Price: $14,898.04

Item: BUCKET, 0.57 w/COUPLER ***

QTY:

Ref: 020 Part #: R2501-77100 Price: $8,282.78

Item: ASSY COUPLER

QTY:

Ref: 040 Part #: 90214-71132 Price: $180.29

Item: PIN

QTY:

Ref: 050 Part #: 90214-71142 Price: $219.23

Item: FORK

QTY:

Ref: 060 Part #: 05411-01022 Price: $2.37

Item: PIN, SPRING

QTY:

Ref: 070 Part #: 05411-01032 Price: $2.60

Item: PIN, SPRING

QTY:

Ref: 080 Part #: 90214-71163 Price: $69.70

Item: ROD

QTY:

Ref: 090 Part #: 02174-50160 Price: $1.49

Item: NUT,HEX M16x2 4T JIS ***

QTY:

Ref: 100 Part #: 90214-71182 Price: $32.74

Item: SPRING

QTY:

Ref: 110 Part #: R2401-71030 Price: $39.26

Item: LINK

QTY:

Ref: 120 Part #: R2401-71045 Price: $296.42

Item: LEVER

QTY:

Ref: 130 Part #: 04011-50100 Price: $0.99

Item: WASHER, PLAIN ***

QTY:

Ref: 140 Part #: 05511-50320 Price: $0.99

Item: PIN, SPLIT ***

QTY:

Ref: 150 Part #: 68811-71262 Price: $81.55

Item: PIN (40-133)

QTY:

Ref: 160 Part #: 68881-71282 Price: $95.54

Item: PIN (45-133) *

QTY:

Ref: 170 Part #: 06611-15010 Price: $2.34

Item: NIPPLE,GREASE

QTY:

Ref: 180 Part #: 68811-71240 Price: $23.74

Item: KEY PLATE (RETAINING TAB) 40mm

QTY:

Ref: 190 Part #: 01133-71020 Price: $1.31

Item: BOLT M10x1.25x20 mm

QTY:

Ref: 200 Part #: 68131-67720 Price: $7.45

Item: SHIM 1

QTY:

Ref: 210 Part #: 68241-66923 Price: $4.26

Item: SHIM (RL)

QTY:

Ref: 220 Part #: 70090-20713 Price: $835.91

Item: KIT EDGE, AUX CUTTING (72Inch 6 Hole)

QTY:

Ref: 230 Part #: 68841-71423 Price: $9.78

Item: BOLT

QTY:

Ref: 240 Part #: 02176-70140 Price: $0.99

Item: NUT

QTY:

Ref: 250300 Part #: 04512-70140 Price: $0.99

Item: WASHER,SPRING *

QTY:

Ref: 260 Part #: RC201-66100 Price: $146.38

Item: ASSY TEETH KTA 500MM

QTY:

Ref: 270 Part #: RC101-66950 Price: $64.49

Item: TOOTH (PAINTED BLUE) ***USE HENSLEY

QTY:

Ref: 280 Part #: 68131-66930 Price: $7.36

Item: SHIM

QTY:

Ref: 290 Part #: 01176-61448 Price: $1.94

Item: BOLT

QTY:

Ref: 310 Part #: 68131-66920 Price: $24.00

Item: NUT

QTY:

Ref: 320 Part #: 69201-71390 Price: $7.52

Item: SHIM

QTY:

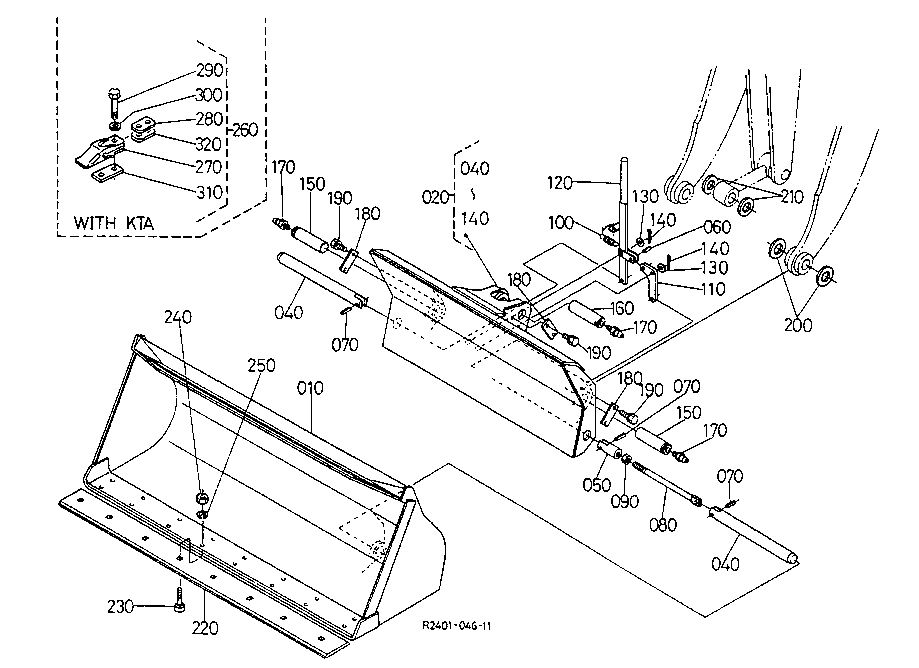

KUBOTA R520 PARTS FRONT ATTACHMENTS S133-3 BUCKET
