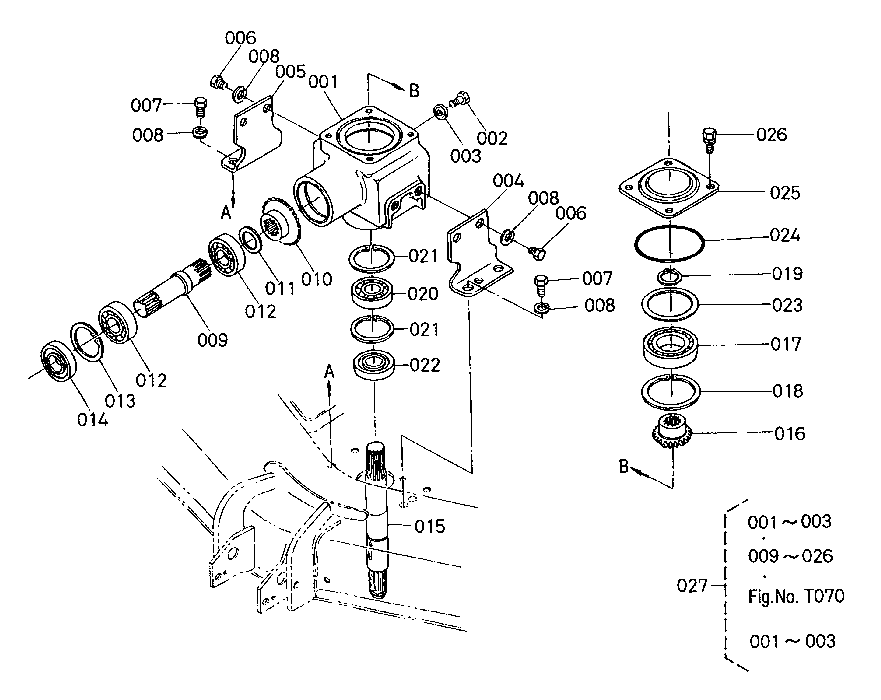

KUBOTA RC44 G(G3200) PARTS MOWER T06900 GEAR BOX

    KUBOTA >kubota-rc44-g-g3200-parts-mower-t06900-gear-box
    Ref: 001  Part #: 70712-33113  Price: $496.75

    Item: CASE,BEVEL

    QTY:
    Ref: 001  Part #: 70712-33113  Price: $496.75

    Item: CASE,BEVEL

    QTY:
    Ref: 002  Part #: 01173-51014  Price: $0.99

    Item: BOLT M10x1.25x14 mm ***

    QTY:
    Ref: 003  Part #: 04717-01000  Price: $1.49

    Item: WASHER, SEAL W/RUBBER

    QTY:
    Ref: 004  Part #: 76538-33130  Price: $30.43

    Item: LH BEVEL CASE STAY

    QTY:
    Ref: 005  Part #: 76538-33150  Price: $30.43

    Item: STAY, BEVEL CASE RH

    QTY:
    Ref: 006  Part #: 01173-51222  Price: $1.32

    Item: BOLT

    QTY:
    Ref: 007  Part #: 01173-51228  Price: $1.44

    Item: BOLT M12x1.25x28 mm

    QTY:
    Ref: 008  Part #: 04512-50120  Price: $1.70

    Item: WASHER, SPRING LOCK ***

    QTY:
    Ref: 009  Part #: 70712-33310  Price: $149.43

    Item: SHAFT, PINION

    QTY:
    Ref: 010  Part #: 70712-33320  Price: $281.62

    Item: KIT,BEVEL GEAR

    QTY:
    Ref: 011  Part #: 70720-33350  Price: $6.94

    Item: SHIM 1

    QTY:
    Ref: 011  Part #: 70720-33360  Price: $6.94

    Item: SHIM 2

    QTY:
    Ref: 012020  Part #: 08101-06205  Price: $9.97

    Item: BEARING,BALL RADIAL 25/52 ***

    QTY:
    Ref: 013021  Part #: 04611-00520  Price: $2.23

    Item: CIR-CLIP, INTERNAL

    QTY:
    Ref: 014022  Part #: 09502-55210  Price: $6.40

    Item: SEAL, OIL

    QTY:
    Ref: 014022  Part #: 76535-33440  Price: $23.54

    Item: SEAL, OIL

    QTY:
    Ref: 015  Part #: 70712-99723  Price: $299.05

    Item: ASSY PULLEY 2 CENTER

    QTY:
    Ref: 016  Part #: 70712-33320  Price: $281.62

    Item: KIT,BEVEL GEAR

    QTY:
    Ref: 017  Part #: 70712-33550  Price: $29.56

    Item: BEARING, BALL

    QTY:
    Ref: 018  Part #: 04611-00650  Price: $3.83

    Item: CIR-CLIP, INTERNAL

    QTY:
    Ref: 019  Part #: 04612-00220  Price: $0.99

    Item: CIR-CLIP, EXTERNAL

    QTY:
    Ref: 023  Part #: 70712-33570  Price: $2.37

    Item: SHIM, 0.1MM

    QTY:
    Ref: 023  Part #: 70712-33590  Price: $3.34

    Item: SHIM 0.3

    QTY:
    Ref: 024  Part #: 04811-10800  Price: $4.16

    Item: O-RING

    QTY:
    Ref: 025  Part #: 70712-33610  Price: $37.08

    Item: COVER, BEVEL CASE ***

    QTY:
    Ref: 026  Part #: 01123-50814  Price: $0.99

    Item: BOLT M8x1.25x14 mm ***

    QTY:
    Ref: 027  Part #: 70712-99513  Price: $1,312.27

    Item: ASSY GEARCASE, BEVEL *

    QTY:
    Ref: 027  Part #: 70712-99513  Price: $1,312.27

    Item: ASSY GEARCASE, BEVEL *

    QTY:
