KUBOTA | Buy Direct | Order Online

Ref	Part #	Item	Price
010	70712-33113	CASE,BEVEL	$496.75
010	70712-33113	CASE,BEVEL	$496.75
020	01173-51014	BOLT M10x1.25x14 mm ***	$0.99
030	04717-01000	WASHER, SEAL W/RUBBER	$1.49
040	76538-33130	LH BEVEL CASE STAY	$30.43
050	76538-33150	STAY, BEVEL CASE RH	$30.43
060	01173-51222	BOLT	$1.32
070	01173-51228	BOLT M12x1.25x28 mm	$1.44
080	04512-50120	WASHER, SPRING LOCK ***	$1.70
090	70712-33310	SHAFT, PINION	$149.43
100	70712-33320	KIT,BEVEL GEAR	$281.62
110	70720-33350	SHIM 1	$6.94
120	70720-33360	SHIM 2	$6.94
130, 200	08101-06205	BEARING,BALL RADIAL 25/52 ***	$9.97
140, 210	04611-00520	CIR-CLIP, INTERNAL	$2.23
150, 220	09502-55210	SEAL, OIL	$6.40
150, 220	76535-33440	SEAL, OIL	$23.54
160	70712-33320	KIT,BEVEL GEAR	$281.62
170	70712-33550	BEARING, BALL	$29.56
180	04611-00650	CIR-CLIP, INTERNAL	$3.83
190	04612-00220	CIR-CLIP, EXTERNAL	$0.99
230	70712-33570	SHIM, 0.1MM	$2.37
240	70712-33590	SHIM 0.3	$3.34
250	04811-10800	O-RING	$4.16
260	70712-33610	COVER, BEVEL CASE ***	$37.08
270	01123-50814	BOLT M8x1.25x14 mm ***	$0.99
280	70712-99513	ASSY GEARCASE, BEVEL *	$1,312.27

Ref: 010 Part #: 70712-33113 Price: $496.75

Item: CASE,BEVEL

QTY:

Ref: 010 Part #: 70712-33113 Price: $496.75

Item: CASE,BEVEL

QTY:

Ref: 020 Part #: 01173-51014 Price: $0.99

Item: BOLT M10x1.25x14 mm ***

QTY:

Ref: 030 Part #: 04717-01000 Price: $1.49

Item: WASHER, SEAL W/RUBBER

QTY:

Ref: 040 Part #: 76538-33130 Price: $30.43

Item: LH BEVEL CASE STAY

QTY:

Ref: 050 Part #: 76538-33150 Price: $30.43

Item: STAY, BEVEL CASE RH

QTY:

Ref: 060 Part #: 01173-51222 Price: $1.32

Item: BOLT

QTY:

Ref: 070 Part #: 01173-51228 Price: $1.44

Item: BOLT M12x1.25x28 mm

QTY:

Ref: 080 Part #: 04512-50120 Price: $1.70

Item: WASHER, SPRING LOCK ***

QTY:

Ref: 090 Part #: 70712-33310 Price: $149.43

Item: SHAFT, PINION

QTY:

Ref: 100 Part #: 70712-33320 Price: $281.62

Item: KIT,BEVEL GEAR

QTY:

Ref: 110 Part #: 70720-33350 Price: $6.94

Item: SHIM 1

QTY:

Ref: 120 Part #: 70720-33360 Price: $6.94

Item: SHIM 2

QTY:

Ref: 130200 Part #: 08101-06205 Price: $9.97

Item: BEARING,BALL RADIAL 25/52 ***

QTY:

Ref: 140210 Part #: 04611-00520 Price: $2.23

Item: CIR-CLIP, INTERNAL

QTY:

Ref: 150220 Part #: 09502-55210 Price: $6.40

Item: SEAL, OIL

QTY:

Ref: 150220 Part #: 76535-33440 Price: $23.54

Item: SEAL, OIL

QTY:

Ref: 160 Part #: 70712-33320 Price: $281.62

Item: KIT,BEVEL GEAR

QTY:

Ref: 170 Part #: 70712-33550 Price: $29.56

Item: BEARING, BALL

QTY:

Ref: 180 Part #: 04611-00650 Price: $3.83

Item: CIR-CLIP, INTERNAL

QTY:

Ref: 190 Part #: 04612-00220 Price: $0.99

Item: CIR-CLIP, EXTERNAL

QTY:

Ref: 230 Part #: 70712-33570 Price: $2.37

Item: SHIM, 0.1MM

QTY:

Ref: 240 Part #: 70712-33590 Price: $3.34

Item: SHIM 0.3

QTY:

Ref: 250 Part #: 04811-10800 Price: $4.16

Item: O-RING

QTY:

Ref: 260 Part #: 70712-33610 Price: $37.08

Item: COVER, BEVEL CASE ***

QTY:

Ref: 270 Part #: 01123-50814 Price: $0.99

Item: BOLT M8x1.25x14 mm ***

QTY:

Ref: 280 Part #: 70712-99513 Price: $1,312.27

Item: ASSY GEARCASE, BEVEL *

QTY:

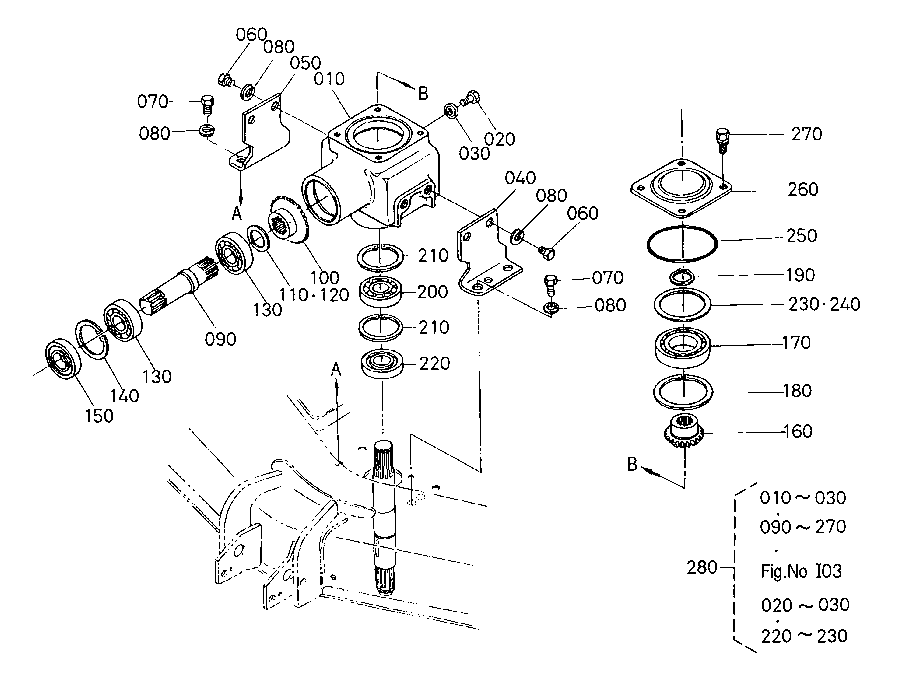

KUBOTA RC44 G(G6200H) PARTS MOWER I00200 GEAR BOX
