Ref	Part #	Item	Price
010	76543-41162	DECK, MOWER ***	$2,038.28
010	76543-41163	DECK MOWER ***	$5,064.24
020	76543-42230	ASSY WHEEL,GAUGE FRONT (Pneumatic) *	$104.11
020	76543-42230	ASSY WHEEL,GAUGE FRONT (Pneumatic) *	$104.11
020	76543-42230	ASSY WHEEL,GAUGE FRONT (Pneumatic) *	$104.11
025	70000-73666	TUBE, INNER ***	$16.58
030	76543-34220	COLLAR	$23.14
040	76543-34200	HOLDER, FRONT WHEEL	$201.80
050	07715-00803	BALL	$0.99
060	76543-43130	SPRING, FRONT WHEEL	$3.48
070	02172-50120	NUT ***	$0.99
078	01173-51225	BOLT M12x1.25x25 mm	$1.31
080	76543-34212	SHAFT,FRONT WHEEL	$72.56
090	04512-70140	WASHER,SPRING *	$0.99
100	02174-50140	NUT, HEX M14-1.5 ***	$1.00
110	70722-42190	BUSH 1	$22.22
120	06613-10675	NIPPLE, GREASE	$2.34
130	76543-43110	SHAFT, FRONT WHEEL ***	$332.95
140	70722-43130	COLLAR, FRONT WHEEL	$4.65
150	04612-00300	CIR-CLIP, EXTERNAL	$0.99
160	05122-51055	PIN ***	$2.23
170	70712-51140	RING, SNAP	$3.20
180	76543-90013	KIT SUPPORT WHEEL	$429.44
190	76543-34180	ASSY HOLDER,F-WHEEL	$504.75
200	76543-34192	IM - FRONT WHEEL HOLDER KIT ***NSS	$6.15
210	76543-99420	KIT, PULLEY TENSION ***	$411.90
220	76543-41190	SHAFT,TENSION	$73.34
230	76543-99430	KIT, PULLEY TENSION ***	$433.20

Ref: 010 Part #: 76543-41162 Price: $2,038.28

Item: DECK, MOWER ***

QTY:

Ref: 010 Part #: 76543-41163 Price: $5,064.24

Item: DECK MOWER ***

QTY:

Ref: 020 Part #: 76543-42230 Price: $104.11

Item: ASSY WHEEL,GAUGE FRONT (Pneumatic) *

QTY:

Ref: 020 Part #: 76543-42230 Price: $104.11

Item: ASSY WHEEL,GAUGE FRONT (Pneumatic) *

QTY:

Ref: 020 Part #: 76543-42230 Price: $104.11

Item: ASSY WHEEL,GAUGE FRONT (Pneumatic) *

QTY:

Ref: 025 Part #: 70000-73666 Price: $16.58

Item: TUBE, INNER ***

QTY:

Ref: 030 Part #: 76543-34220 Price: $23.14

Item: COLLAR

QTY:

Ref: 040 Part #: 76543-34200 Price: $201.80

Item: HOLDER, FRONT WHEEL

QTY:

Ref: 050 Part #: 07715-00803 Price: $0.99

Item: BALL

QTY:

Ref: 060 Part #: 76543-43130 Price: $3.48

Item: SPRING, FRONT WHEEL

QTY:

Ref: 070 Part #: 02172-50120 Price: $0.99

Item: NUT ***

QTY:

Ref: 078 Part #: 01173-51225 Price: $1.31

Item: BOLT M12x1.25x25 mm

QTY:

Ref: 080 Part #: 76543-34212 Price: $72.56

Item: SHAFT,FRONT WHEEL

QTY:

Ref: 090 Part #: 04512-70140 Price: $0.99

Item: WASHER,SPRING *

QTY:

Ref: 100 Part #: 02174-50140 Price: $1.00

Item: NUT, HEX M14-1.5 ***

QTY:

Ref: 110 Part #: 70722-42190 Price: $22.22

Item: BUSH 1

QTY:

Ref: 120 Part #: 06613-10675 Price: $2.34

Item: NIPPLE, GREASE

QTY:

Ref: 130 Part #: 76543-43110 Price: $332.95

Item: SHAFT, FRONT WHEEL ***

QTY:

Ref: 140 Part #: 70722-43130 Price: $4.65

Item: COLLAR, FRONT WHEEL

QTY:

Ref: 150 Part #: 04612-00300 Price: $0.99

Item: CIR-CLIP, EXTERNAL

QTY:

Ref: 160 Part #: 05122-51055 Price: $2.23

Item: PIN ***

QTY:

Ref: 170 Part #: 70712-51140 Price: $3.20

Item: RING, SNAP

QTY:

Ref: 180 Part #: 76543-90013 Price: $429.44

Item: KIT SUPPORT WHEEL

QTY:

Ref: 190 Part #: 76543-34180 Price: $504.75

Item: ASSY HOLDER,F-WHEEL

QTY:

Ref: 200 Part #: 76543-34192 Price: $6.15

Item: IM - FRONT WHEEL HOLDER KIT ***NSS

QTY:

Ref: 210 Part #: 76543-99420 Price: $411.90

Item: KIT, PULLEY TENSION ***

QTY:

Ref: 220 Part #: 76543-41190 Price: $73.34

Item: SHAFT,TENSION

QTY:

Ref: 230 Part #: 76543-99430 Price: $433.20

Item: KIT, PULLEY TENSION ***

QTY:

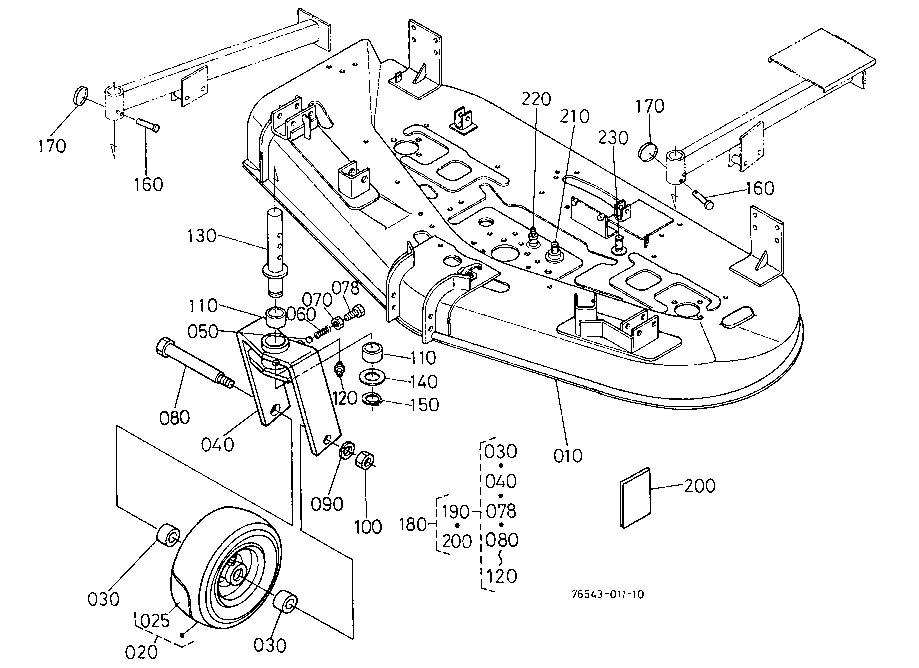

KUBOTA RC60 F20(F2100) PARTS MOWER G12800 MOWER DECK
