Ref	Part #	Item	Price
001	70050-00209	DECK W/DECALS ***	$2,654.88
002	70050-93889	PIN, AXLE ***	$44.82
003	70050-94470	ROLLER, ANTI-SCALP ***	$99.18
004	70080-01275	COLLET, HUB ***	$16.58
005	70050-94573	PULLEY, GEARBOX	$61.23
006	70050-94576	BRACKET, RH GEARBOX	$116.26
006	70050-94577	BRACKET, LH GEARBOX	$100.27
007	70050-94575	SHIELD, FRONT	$27.58
008	70050-93892	GEARBOX, ASSY ***	$727.60
009	70050-00210	CROSS,MEMBER (60 Inch Deck) ***	$275.77
010	70050-94574	SHIELD, REAR	$42.07
011	70091-00150	PIN,LINCH 7/16x1 1/2 LOCKING	$23.62
012	70050-00211	FORK FRONT GAUGE WHEEL ***	$158.17
013	76543-42230	ASSY WHEEL,GAUGE FRONT (Pneumatic) *	$104.11
014	70050-93178	BUSHING ***	$2.88
015	70050-93961	KIT, WHEEL BEARING ***	$11.48
016	70050-94578	SHIELD, DRIVESHAFT	$17.62
017	70050-00213	SPACER ***	$3.17
018	70050-00214	WASHER, 1-1/4" ***	$1.42
019	70050-00212	SPANNER,BEARING ***	$20.12
020	70050-00215	STRUT, LH ***	$264.01
020	70050-00835	WELDMENT, STRUT LH WHEEL	$399.62
021	70050-94615	BRACKET, LH REAR RLR	$82.72
021	70050-94616	BRACKET, RH REAR RLR	$85.03
022	76700-40451	BUSHING ***	$2.36
023	70050-93938	ROLLER, A/S ***	$92.14
024	70050-94582	COLLAR, SPCL LIFTING	$54.89
025	31351-29270	CUSHION, LOWER	$6.53
026	70050-94583	LINK, REAR LIFT	$70.62
027	70050-94593	ASSEMBLY	Call for price
027	70050-94594	ASSEMBLY	Call for price
028	70050-01397	PLATE, 0250 X 2.00 X 4.25	$13.25
029	75599-31013	NUT,3/8-16UNC FIN HEX G5 PTD * *	$0.99
030	75599-33013	WASHER LOCK 3/8" PTD Std Coil Spg -B *	$0.99
031	75599-31933	NUT, CENTERLOCK 3/8-16 NC PTD	$0.99

Ref: 001 Part #: 70050-00209 Price: $2,654.88

Item: DECK W/DECALS ***

QTY:

Ref: 002 Part #: 70050-93889 Price: $44.82

Item: PIN, AXLE ***

QTY:

Ref: 003 Part #: 70050-94470 Price: $99.18

Item: ROLLER, ANTI-SCALP ***

QTY:

Ref: 004 Part #: 70080-01275 Price: $16.58

Item: COLLET, HUB ***

QTY:

Ref: 005 Part #: 70050-94573 Price: $61.23

Item: PULLEY, GEARBOX

QTY:

Ref: 006 Part #: 70050-94576 Price: $116.26

Item: BRACKET, RH GEARBOX

QTY:

Ref: 006 Part #: 70050-94577 Price: $100.27

Item: BRACKET, LH GEARBOX

QTY:

Ref: 007 Part #: 70050-94575 Price: $27.58

Item: SHIELD, FRONT

QTY:

Ref: 008 Part #: 70050-93892 Price: $727.60

Item: GEARBOX, ASSY ***

QTY:

Ref: 009 Part #: 70050-00210 Price: $275.77

Item: CROSS,MEMBER (60 Inch Deck) ***

QTY:

Ref: 010 Part #: 70050-94574 Price: $42.07

Item: SHIELD, REAR

QTY:

Ref: 011 Part #: 70091-00150 Price: $23.62

Item: PIN,LINCH 7/16x1 1/2 LOCKING

QTY:

Ref: 012 Part #: 70050-00211 Price: $158.17

Item: FORK FRONT GAUGE WHEEL ***

QTY:

Ref: 013 Part #: 76543-42230 Price: $104.11

Item: ASSY WHEEL,GAUGE FRONT (Pneumatic) *

QTY:

Ref: 014 Part #: 70050-93178 Price: $2.88

Item: BUSHING ***

QTY:

Ref: 015 Part #: 70050-93961 Price: $11.48

Item: KIT, WHEEL BEARING ***

QTY:

Ref: 016 Part #: 70050-94578 Price: $17.62

Item: SHIELD, DRIVESHAFT

QTY:

Ref: 017 Part #: 70050-00213 Price: $3.17

Item: SPACER ***

QTY:

Ref: 018 Part #: 70050-00214 Price: $1.42

Item: WASHER, 1-1/4" ***

QTY:

Ref: 019 Part #: 70050-00212 Price: $20.12

Item: SPANNER,BEARING ***

QTY:

Ref: 020 Part #: 70050-00215 Price: $264.01

Item: STRUT, LH ***

QTY:

Ref: 020 Part #: 70050-00835 Price: $399.62

Item: WELDMENT, STRUT LH WHEEL

QTY:

Ref: 021 Part #: 70050-94615 Price: $82.72

Item: BRACKET, LH REAR RLR

QTY:

Ref: 021 Part #: 70050-94616 Price: $85.03

Item: BRACKET, RH REAR RLR

QTY:

Ref: 022 Part #: 76700-40451 Price: $2.36

Item: BUSHING ***

QTY:

Ref: 023 Part #: 70050-93938 Price: $92.14

Item: ROLLER, A/S ***

QTY:

Ref: 024 Part #: 70050-94582 Price: $54.89

Item: COLLAR, SPCL LIFTING

QTY:

Ref: 025 Part #: 31351-29270 Price: $6.53

Item: CUSHION, LOWER

QTY:

Ref: 026 Part #: 70050-94583 Price: $70.62

Item: LINK, REAR LIFT

QTY:

Ref: 027 Part #: 70050-94593 Price: Call for price

Item: ASSEMBLY

QTY:

Ref: 027 Part #: 70050-94594 Price: Call for price

Item: ASSEMBLY

QTY:

Ref: 028 Part #: 70050-01397 Price: $13.25

Item: PLATE, 0250 X 2.00 X 4.25

QTY:

Ref: 029 Part #: 75599-31013 Price: $0.99

Item: NUT,3/8-16UNC FIN HEX G5 PTD *** ***

QTY:

Ref: 030 Part #: 75599-33013 Price: $0.99

Item: WASHER LOCK 3/8" PTD Std Coil Spg -B *

QTY:

Ref: 031 Part #: 75599-31933 Price: $0.99

Item: NUT, CENTERLOCK 3/8-16 NC PTD

QTY:

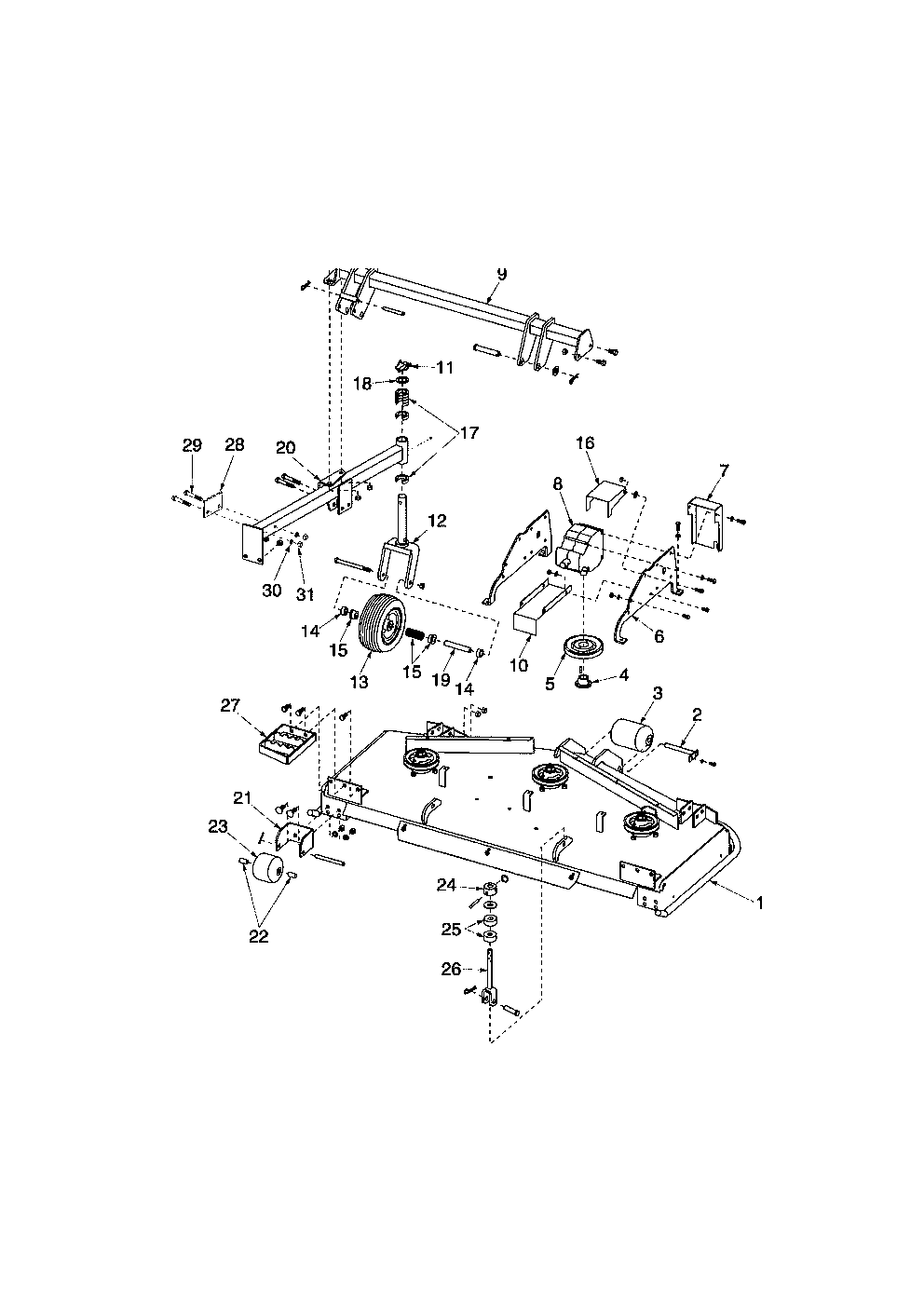

KUBOTA RC60R F30B AND RC72R F30B PARTS I00200 RC60R-F30B DECK COMPONENTS
