Ref	Part #	Item	Price
010	76544-41120	LH FRONT WHEEL STAY ***	$241.89
020	76544-41130	STAY,FRONT WHEEL RH ***	$189.35
030	01173-51270	BOLT M12x1.25x70 mm ***	$2.47
040	04512-50120	WASHER, SPRING LOCK ***	$1.70
050	02176-50120	NUT, HEX M12x1.25 ***	$0.99
060	01173-51225	BOLT M12x1.25x25 mm	$1.31
070	76544-41180	LH COVER	$124.38
080	76544-41203	COVER, RH ***	$316.59
090	66204-51160	CAP, BLIND 1	$6.15
100	01123-70816	BOLT M8x1.25x16 mm	$0.99
110	01123-50820	BOLT M8x1.25x20 mm ***	$0.99
120	04013-50080	WASHER, M8 PLAIN ***	$0.99
130	76550-34570	BLADE LABEL	$5.66
130	76550-11340	NAME PLATE BLADE	$18.48
140	36200-98160	MARK, FRONT ***	$4.42
150	70720-47154	LABEL, CAUTION 1	$5.66
160	70712-41142	DECAL, DANGER-SHIELD	$3.34
160	66071-61790	LABEL, CAUTION	$3.34
160	76530-11420	LABEL,CAUTION	$5.66
170	76611-47682	LABEL, ANSI	$5.66
170	76611-47682	LABEL, ANSI	$5.66
180	76544-41140	LABEL,CUTTING HEIGHT ***	$8.35
180	76544-42170	LABEL,CUTTING HEIGHT	$7.36
180	76544-42140	LABEL CUTTING FR	$7.22
190	76539-34830	LABEL, GREASE UP	$5.66
190	76539-34840	LABEL, GREASE UP	$5.49

Ref: 010 Part #: 76544-41120 Price: $241.89

Item: LH FRONT WHEEL STAY ***

QTY:

Ref: 020 Part #: 76544-41130 Price: $189.35

Item: STAY,FRONT WHEEL RH ***

QTY:

Ref: 030 Part #: 01173-51270 Price: $2.47

Item: BOLT M12x1.25x70 mm ***

QTY:

Ref: 040 Part #: 04512-50120 Price: $1.70

Item: WASHER, SPRING LOCK ***

QTY:

Ref: 050 Part #: 02176-50120 Price: $0.99

Item: NUT, HEX M12x1.25 ***

QTY:

Ref: 060 Part #: 01173-51225 Price: $1.31

Item: BOLT M12x1.25x25 mm

QTY:

Ref: 070 Part #: 76544-41180 Price: $124.38

Item: LH COVER

QTY:

Ref: 080 Part #: 76544-41203 Price: $316.59

Item: COVER, RH ***

QTY:

Ref: 090 Part #: 66204-51160 Price: $6.15

Item: CAP, BLIND 1

QTY:

Ref: 100 Part #: 01123-70816 Price: $0.99

Item: BOLT M8x1.25x16 mm

QTY:

Ref: 110 Part #: 01123-50820 Price: $0.99

Item: BOLT M8x1.25x20 mm ***

QTY:

Ref: 120 Part #: 04013-50080 Price: $0.99

Item: WASHER, M8 PLAIN ***

QTY:

Ref: 130 Part #: 76550-34570 Price: $5.66

Item: BLADE LABEL

QTY:

Ref: 130 Part #: 76550-11340 Price: $18.48

Item: NAME PLATE BLADE

QTY:

Ref: 140 Part #: 36200-98160 Price: $4.42

Item: MARK, FRONT ***

QTY:

Ref: 150 Part #: 70720-47154 Price: $5.66

Item: LABEL, CAUTION 1

QTY:

Ref: 160 Part #: 70712-41142 Price: $3.34

Item: DECAL, DANGER-SHIELD

QTY:

Ref: 160 Part #: 66071-61790 Price: $3.34

Item: LABEL, CAUTION

QTY:

Ref: 160 Part #: 76530-11420 Price: $5.66

Item: LABEL,CAUTION

QTY:

Ref: 170 Part #: 76611-47682 Price: $5.66

Item: LABEL, ANSI

QTY:

Ref: 170 Part #: 76611-47682 Price: $5.66

Item: LABEL, ANSI

QTY:

Ref: 180 Part #: 76544-41140 Price: $8.35

Item: LABEL,CUTTING HEIGHT ***

QTY:

Ref: 180 Part #: 76544-42170 Price: $7.36

Item: LABEL,CUTTING HEIGHT

QTY:

Ref: 180 Part #: 76544-42140 Price: $7.22

Item: LABEL CUTTING FR

QTY:

Ref: 190 Part #: 76539-34830 Price: $5.66

Item: LABEL, GREASE UP

QTY:

Ref: 190 Part #: 76539-34840 Price: $5.49

Item: LABEL, GREASE UP

QTY:

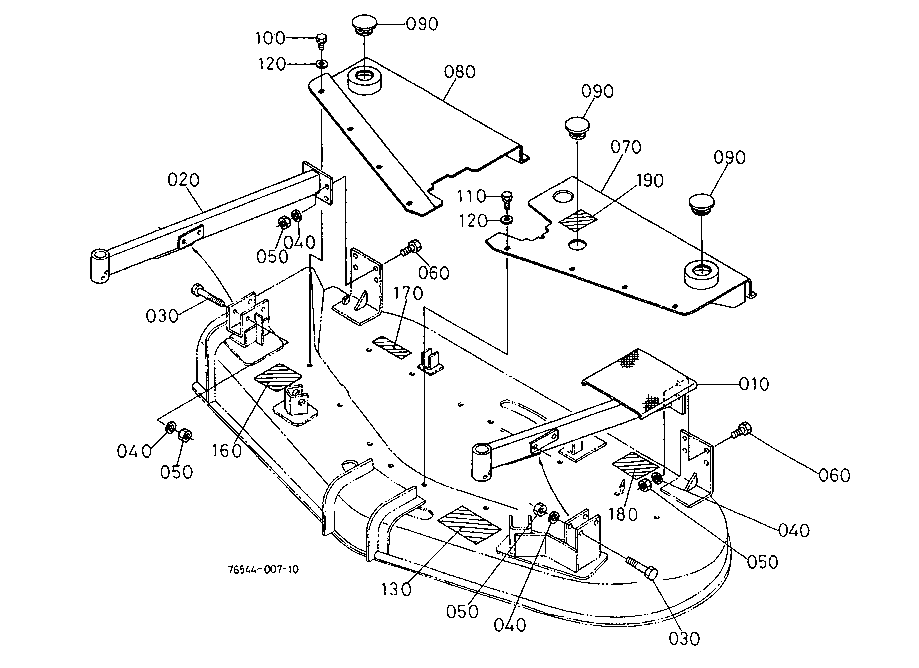

KUBOTA RC72 F20(F2400) PARTS MOWER G13900 WHEEL STAY
