KUBOTA | Buy Direct | Order Online

Ref	Part #	Item	Price
010	76559-61110	KIT, LIFT SPRING	$200.41
020	70050-94080	STAY, SPRING	$34.23
030	01133-51230	BOLT M12x1.25x30 mm ***	$1.55
040	01123-51025	BOLT M10x1.5x25 mm ***	$1.11
050	K3311-61190	SPRING, LIFT	$97.29
060	K3311-61170	ROD,SPRING	$28.35
070	02174-50140	NUT, HEX M14-1.5 ***	$1.00
080	76577-65212	ROD LIFT ***	$55.77
090	76577-65260	BRACKET	$275.58
100	02172-50160	NUT, 149400 ***	$1.49
110	08511-02030	BUSHING	$5.66
120	04011-50200	WASHER, PLAIN ***	$0.99
130	05511-50530	PIN, SPLIT ***	$0.99
140	05122-51240	PIN, JOINT ***	$3.20
150	76559-62110	PLATE	$12.98
160, 200	05511-50425	PIN, SPLIT ***	$0.99
170	70712-51140	RING, SNAP	$3.20
180	05122-51260	PIN, JOINT	$2.60
190	04011-50120	WASHER, PLAIN ***	$0.99
210	76611-51583	STAY, LIFTING	$24.90
220	01774-71020	BOLT M10x1.25x20 mm	$1.31
230	76611-47670	LABEL ***	$8.35
240	02118-50100	NUT, HEX 4T M10X1.25 (CRP SPD KIT) ***	$0.99

Ref: 010 Part #: 76559-61110 Price: $200.41

Item: KIT, LIFT SPRING

QTY:

Ref: 020 Part #: 70050-94080 Price: $34.23

Item: STAY, SPRING

QTY:

Ref: 030 Part #: 01133-51230 Price: $1.55

Item: BOLT M12x1.25x30 mm ***

QTY:

Ref: 040 Part #: 01123-51025 Price: $1.11

Item: BOLT M10x1.5x25 mm ***

QTY:

Ref: 050 Part #: K3311-61190 Price: $97.29

Item: SPRING, LIFT

QTY:

Ref: 060 Part #: K3311-61170 Price: $28.35

Item: ROD,SPRING

QTY:

Ref: 070 Part #: 02174-50140 Price: $1.00

Item: NUT, HEX M14-1.5 ***

QTY:

Ref: 080 Part #: 76577-65212 Price: $55.77

Item: ROD LIFT ***

QTY:

Ref: 090 Part #: 76577-65260 Price: $275.58

Item: BRACKET

QTY:

Ref: 100 Part #: 02172-50160 Price: $1.49

Item: NUT, 149400 ***

QTY:

Ref: 110 Part #: 08511-02030 Price: $5.66

Item: BUSHING

QTY:

Ref: 120 Part #: 04011-50200 Price: $0.99

Item: WASHER, PLAIN ***

QTY:

Ref: 130 Part #: 05511-50530 Price: $0.99

Item: PIN, SPLIT ***

QTY:

Ref: 140 Part #: 05122-51240 Price: $3.20

Item: PIN, JOINT ***

QTY:

Ref: 150 Part #: 76559-62110 Price: $12.98

Item: PLATE

QTY:

Ref: 160200 Part #: 05511-50425 Price: $0.99

Item: PIN, SPLIT ***

QTY:

Ref: 170 Part #: 70712-51140 Price: $3.20

Item: RING, SNAP

QTY:

Ref: 180 Part #: 05122-51260 Price: $2.60

Item: PIN, JOINT

QTY:

Ref: 190 Part #: 04011-50120 Price: $0.99

Item: WASHER, PLAIN ***

QTY:

Ref: 210 Part #: 76611-51583 Price: $24.90

Item: STAY, LIFTING

QTY:

Ref: 220 Part #: 01774-71020 Price: $1.31

Item: BOLT M10x1.25x20 mm

QTY:

Ref: 230 Part #: 76611-47670 Price: $8.35

Item: LABEL ***

QTY:

Ref: 240 Part #: 02118-50100 Price: $0.99

Item: NUT, HEX 4T M10X1.25 (CRP SPD KIT) ***

QTY:

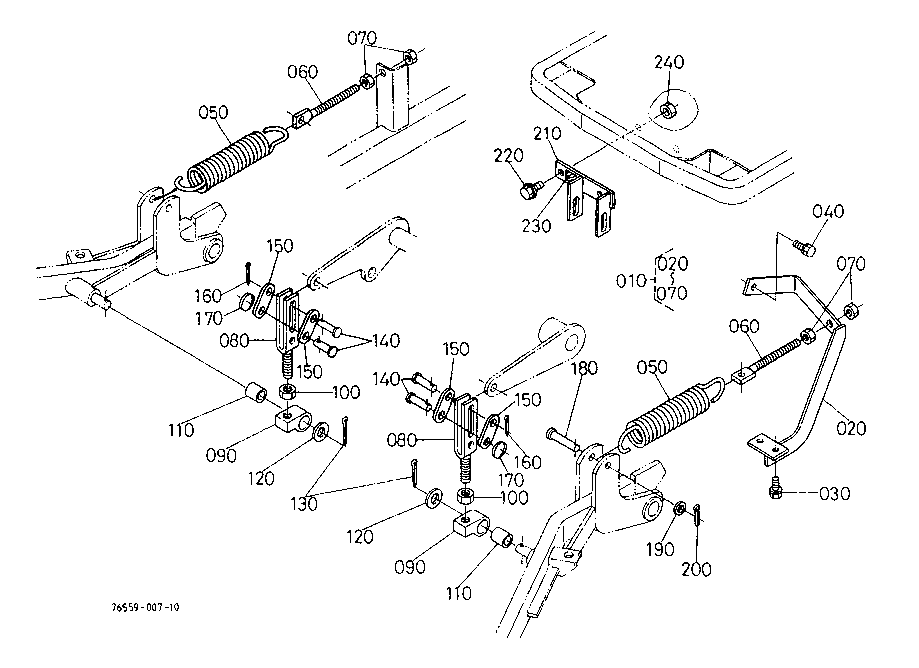

KUBOTA RC72 FZ21 PARTS MOWER G10502 LIFT ROD
