Ref	Part #	Item	Price
010	K7731-87610	CONDENSER *	$889.19
020	K7711-89640	GROMMET, CONDENSER	$6.53
030	K7711-89650	COLLAR, THRUST CONDEN	$11.97
040	01754-50830	BOLT M8x1.25x30 mm ***	$3.87
050, 080	02751-50080	NUT,HEX M8X1.25 FLANGE 4T	$3.05
060	K7731-87622	SUPPORT(CONDENSER) * ***	$158.15
070	K1122-91320	BOLT, M8x1.25 SHORT SQ NECK	$2.60
090	K7731-87650	NET(CONDENSER) *	$57.12
100	K7731-87690	SEAL(CONDENSER,LOWER)	$3.09
110	K1211-84560	RIVET,1/4 PUSH *	$1.94

Ref: 010 Part #: K7731-87610 Price: $889.19

Item: CONDENSER *

QTY:

Ref: 020 Part #: K7711-89640 Price: $6.53

Item: GROMMET, CONDENSER

QTY:

Ref: 030 Part #: K7711-89650 Price: $11.97

Item: COLLAR, THRUST CONDEN

QTY:

Ref: 040 Part #: 01754-50830 Price: $3.87

Item: BOLT M8x1.25x30 mm ***

QTY:

Ref: 050080 Part #: 02751-50080 Price: $3.05

Item: NUT,HEX M8X1.25 FLANGE 4T

QTY:

Ref: 060 Part #: K7731-87622 Price: $158.15

Item: SUPPORT(CONDENSER) * ***

QTY:

Ref: 070 Part #: K1122-91320 Price: $2.60

Item: BOLT, M8x1.25 SHORT SQ NECK

QTY:

Ref: 090 Part #: K7731-87650 Price: $57.12

Item: NET(CONDENSER) *

QTY:

Ref: 100 Part #: K7731-87690 Price: $3.09

Item: SEAL(CONDENSER,LOWER)

QTY:

Ref: 110 Part #: K1211-84560 Price: $1.94

Item: RIVET,1/4 PUSH *

QTY:

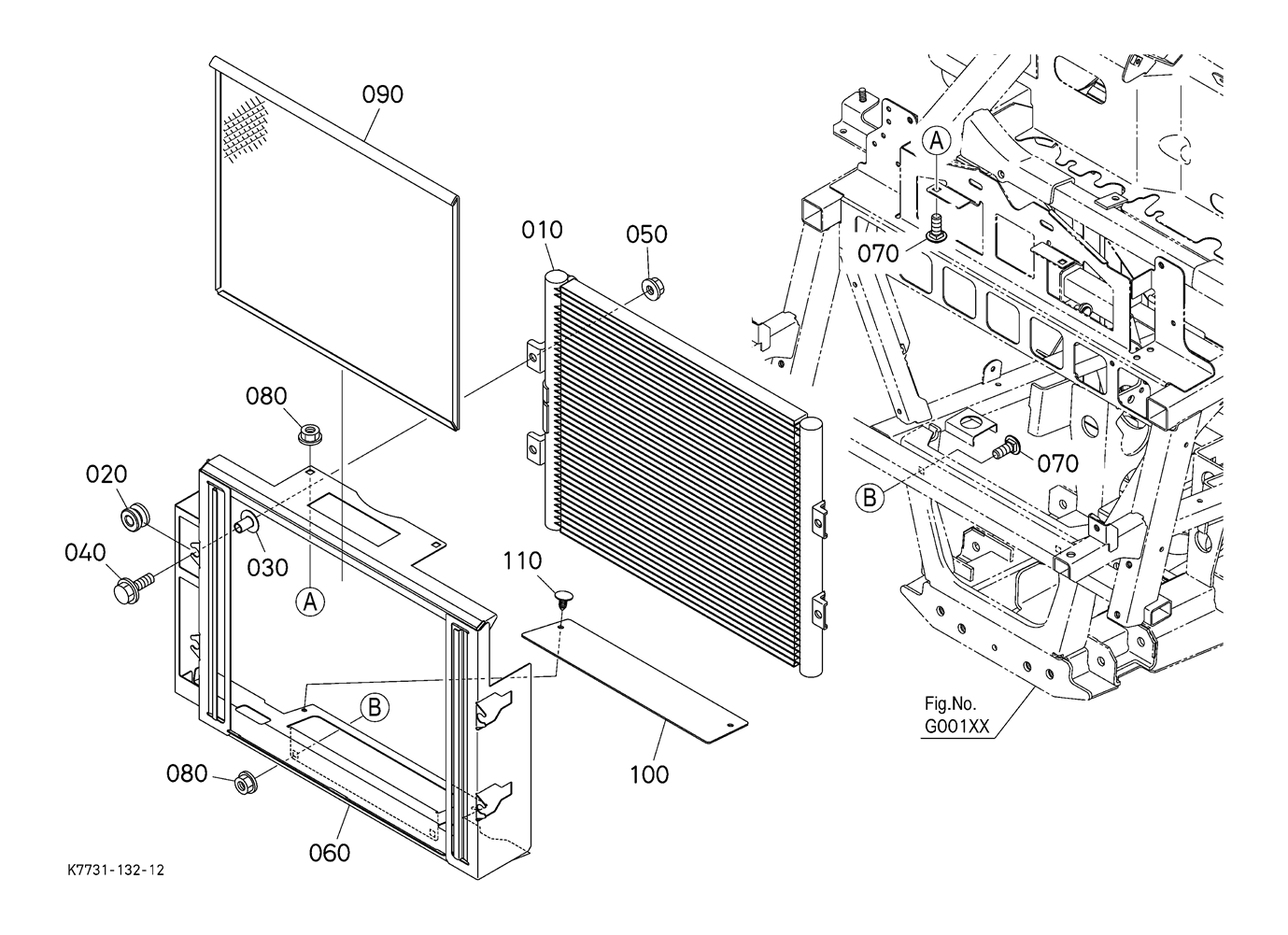

KUBOTA RTV X1100CR PARTS AIR CONDITIONER P13000 CONDENSER
