Ref	Part #	Item	Price
005	K7591-10220	TRANSAXLE,ASSY(GP) S/N <=41038	Call for price
005	K7591-10235	TRANSAXLE,ASSY(GP) ***	$6,866.23
010	K7591-11116	COVER,FRONT * ***	$410.41
010	K7591-11116	COVER,FRONT * ***	$410.41
010	K7591-11116	COVER,FRONT * ***	$410.41
010	K7591-11116	COVER,FRONT * ***	$410.41
020	K7591-11030	COVER,FLYWHEEL *	$346.42
030	05012-00614	PIN, STRAIGHT	$0.99
040	01133-51040	BOLT M10x1.25x40 mm ***	$1.90
050	01774-51004	BOLT M10x1.25x120 mm ***	$5.37
060	01519-51030	STUD ***	$1.32
070	K7591-11070	NUT,M10x1.25 S/W *	$2.86
080	04817-06470	O RING	$5.72
090	04811-06670	O-RING	$4.80
100	01754-50812	BOLT M8x1.25x12 mm ***	$2.59
110	04717-00810	WASHER, SEAL	$2.08
120	37410-13124	PLUG	$5.98
120	63313-35420	CAP	$8.30
130	K7311-11060	PLUG, HOLE SENSOR	$15.23
160	05012-00810	PIN, STRAIGHT	$0.99
165	05012-00820	PIN, STRAIGHT	$0.99
165	05012-00816	PIN, STRAIGHT REAR	$0.99
170, 190	01123-50825	BOLT M8x1.25x25 mm *	$0.99
180	01123-50840	BOLT M8x1.25x40 mm ***	$1.17

Ref: 005 Part #: K7591-10220 Price: Call for price

Item: TRANSAXLE,ASSY(GP) S/N <=41038

QTY:

Ref: 005 Part #: K7591-10235 Price: $6,866.23

Item: TRANSAXLE,ASSY(GP) ***

QTY:

Ref: 010 Part #: K7591-11116 Price: $410.41

Item: COVER,FRONT * ***

QTY:

Ref: 010 Part #: K7591-11116 Price: $410.41

Item: COVER,FRONT * ***

QTY:

Ref: 010 Part #: K7591-11116 Price: $410.41

Item: COVER,FRONT * ***

QTY:

Ref: 010 Part #: K7591-11116 Price: $410.41

Item: COVER,FRONT * ***

QTY:

Ref: 020 Part #: K7591-11030 Price: $346.42

Item: COVER,FLYWHEEL *

QTY:

Ref: 030 Part #: 05012-00614 Price: $0.99

Item: PIN, STRAIGHT

QTY:

Ref: 040 Part #: 01133-51040 Price: $1.90

Item: BOLT M10x1.25x40 mm ***

QTY:

Ref: 050 Part #: 01774-51004 Price: $5.37

Item: BOLT M10x1.25x120 mm ***

QTY:

Ref: 060 Part #: 01519-51030 Price: $1.32

Item: STUD ***

QTY:

Ref: 070 Part #: K7591-11070 Price: $2.86

Item: NUT,M10x1.25 S/W *

QTY:

Ref: 080 Part #: 04817-06470 Price: $5.72

Item: O RING

QTY:

Ref: 090 Part #: 04811-06670 Price: $4.80

Item: O-RING

QTY:

Ref: 100 Part #: 01754-50812 Price: $2.59

Item: BOLT M8x1.25x12 mm ***

QTY:

Ref: 110 Part #: 04717-00810 Price: $2.08

Item: WASHER, SEAL

QTY:

Ref: 120 Part #: 37410-13124 Price: $5.98

Item: PLUG

QTY:

Ref: 120 Part #: 63313-35420 Price: $8.30

Item: CAP

QTY:

Ref: 130 Part #: K7311-11060 Price: $15.23

Item: PLUG, HOLE SENSOR

QTY:

Ref: 160 Part #: 05012-00810 Price: $0.99

Item: PIN, STRAIGHT

QTY:

Ref: 165 Part #: 05012-00820 Price: $0.99

Item: PIN, STRAIGHT

QTY:

Ref: 165 Part #: 05012-00816 Price: $0.99

Item: PIN, STRAIGHT REAR

QTY:

Ref: 170190 Part #: 01123-50825 Price: $0.99

Item: BOLT M8x1.25x25 mm *

QTY:

Ref: 180 Part #: 01123-50840 Price: $1.17

Item: BOLT M8x1.25x40 mm ***

QTY:

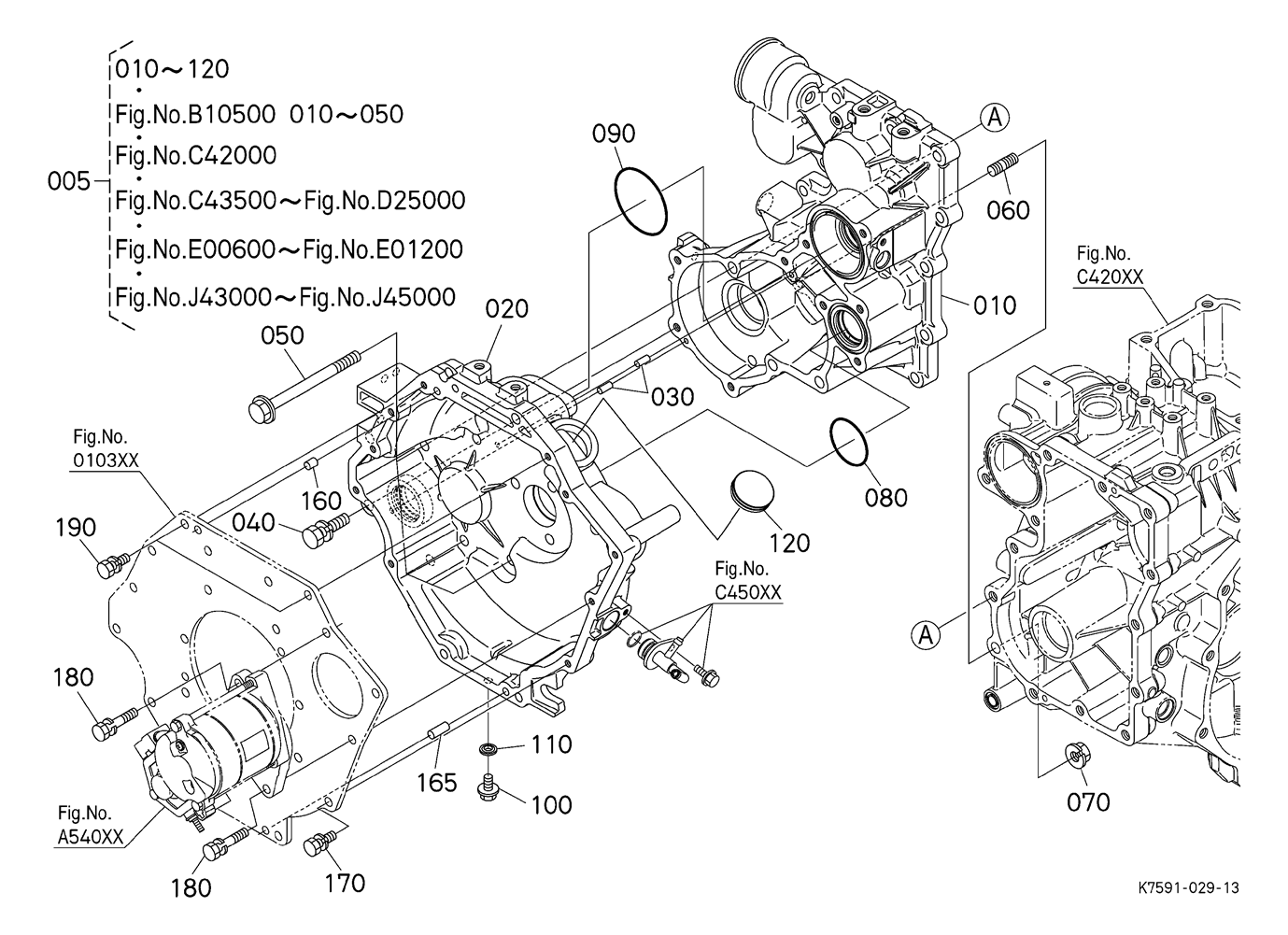

KUBOTA RTV X900G PARTS TRANSMISSION C41501 FRONT CASE
