KUBOTA | Buy Direct | Order Online

Ref	Part #	Item	Price
010	K7711-28113	GLASS, FRONT (WINDOW) *	$500.35
020	K7711-28213	WEATHERSTRIP, FRONT G	$91.81
030	K7711-28354	HINGE, GLASS LH ***	$41.52
040, 060	01754-70816	BOLT M8x1.25x16 mm *	$2.65
040, 060	01754-70812	BOLT M8x1.25x12 mm	$2.59
050	K7711-28523	HINGE, GLASS RH	$41.52
070	K7711-28660	GASKET, FRONT GLASS ***	$1.14
080	K7711-28670	GASKET, HINGE 2 ***	$1.13
090	K7711-28682	WASHER, HINGE 2	$2.17
090	K7711-28682	WASHER, HINGE 2	$2.17
100, 250	34070-71060	NUT, CAP	$1.65
110	T0270-84500	COMP. HANDLE	$124.93
110	T3685-84500	COMP HANDLE	$58.05
120	T0180-83510	HANDLE	$108.93
120	T3685-84510	ASSY HANDLE REARLOCK	$38.73
130	T0180-83520	COVER, HANDLE	$38.73
130	T3685-84520	COVER, REARLOCK	$11.85
140	T0270-71090	BRACKET	$8.52
140	T3685-84530	BRACKET, REARLOCK	$14.90
150	T0270-61770	Packing	$2.08
160	T0180-83610	SCREW	$0.99
170	T0180-83560	SCREW	$0.99
180	T0270-71070	BRACKET	$8.52
180	K7711-28150	PLATE,REAR LOCK *	$5.58
190	K7711-28203	DAMPER, FRONT GLASS * ***	$15.90
200	K7711-28260	HOLDER, DAMPER FRONT	$6.95
210	K7711-28270	PACKING, DAMPER FRONT ***	$8.13
220	K7711-28280	PLATE, DAMPER	$7.50
230	34070-75630	SEAL	$3.20
240	36919-54080	SCREW	$1.32

Ref: 010 Part #: K7711-28113 Price: $500.35

Item: GLASS, FRONT (WINDOW) *

QTY:

Ref: 020 Part #: K7711-28213 Price: $91.81

Item: WEATHERSTRIP, FRONT G

QTY:

Ref: 030 Part #: K7711-28354 Price: $41.52

Item: HINGE, GLASS LH ***

QTY:

Ref: 040060 Part #: 01754-70816 Price: $2.65

Item: BOLT M8x1.25x16 mm *

QTY:

Ref: 040060 Part #: 01754-70812 Price: $2.59

Item: BOLT M8x1.25x12 mm

QTY:

Ref: 050 Part #: K7711-28523 Price: $41.52

Item: HINGE, GLASS RH

QTY:

Ref: 070 Part #: K7711-28660 Price: $1.14

Item: GASKET, FRONT GLASS ***

QTY:

Ref: 080 Part #: K7711-28670 Price: $1.13

Item: GASKET, HINGE 2 ***

QTY:

Ref: 090 Part #: K7711-28682 Price: $2.17

Item: WASHER, HINGE 2

QTY:

Ref: 090 Part #: K7711-28682 Price: $2.17

Item: WASHER, HINGE 2

QTY:

Ref: 100250 Part #: 34070-71060 Price: $1.65

Item: NUT, CAP

QTY:

Ref: 110 Part #: T0270-84500 Price: $124.93

Item: COMP. HANDLE

QTY:

Ref: 110 Part #: T3685-84500 Price: $58.05

Item: COMP HANDLE

QTY:

Ref: 120 Part #: T0180-83510 Price: $108.93

Item: HANDLE

QTY:

Ref: 120 Part #: T3685-84510 Price: $38.73

Item: ASSY HANDLE REARLOCK

QTY:

Ref: 130 Part #: T0180-83520 Price: $38.73

Item: COVER, HANDLE

QTY:

Ref: 130 Part #: T3685-84520 Price: $11.85

Item: COVER, REARLOCK

QTY:

Ref: 140 Part #: T0270-71090 Price: $8.52

Item: BRACKET

QTY:

Ref: 140 Part #: T3685-84530 Price: $14.90

Item: BRACKET, REARLOCK

QTY:

Ref: 150 Part #: T0270-61770 Price: $2.08

Item: Packing

QTY:

Ref: 160 Part #: T0180-83610 Price: $0.99

Item: SCREW

QTY:

Ref: 170 Part #: T0180-83560 Price: $0.99

Item: SCREW

QTY:

Ref: 180 Part #: T0270-71070 Price: $8.52

Item: BRACKET

QTY:

Ref: 180 Part #: K7711-28150 Price: $5.58

Item: PLATE,REAR LOCK *

QTY:

Ref: 190 Part #: K7711-28203 Price: $15.90

Item: DAMPER, FRONT GLASS * ***

QTY:

Ref: 200 Part #: K7711-28260 Price: $6.95

Item: HOLDER, DAMPER FRONT

QTY:

Ref: 210 Part #: K7711-28270 Price: $8.13

Item: PACKING, DAMPER FRONT ***

QTY:

Ref: 220 Part #: K7711-28280 Price: $7.50

Item: PLATE, DAMPER

QTY:

Ref: 230 Part #: 34070-75630 Price: $3.20

Item: SEAL

QTY:

Ref: 240 Part #: 36919-54080 Price: $1.32

Item: SCREW

QTY:

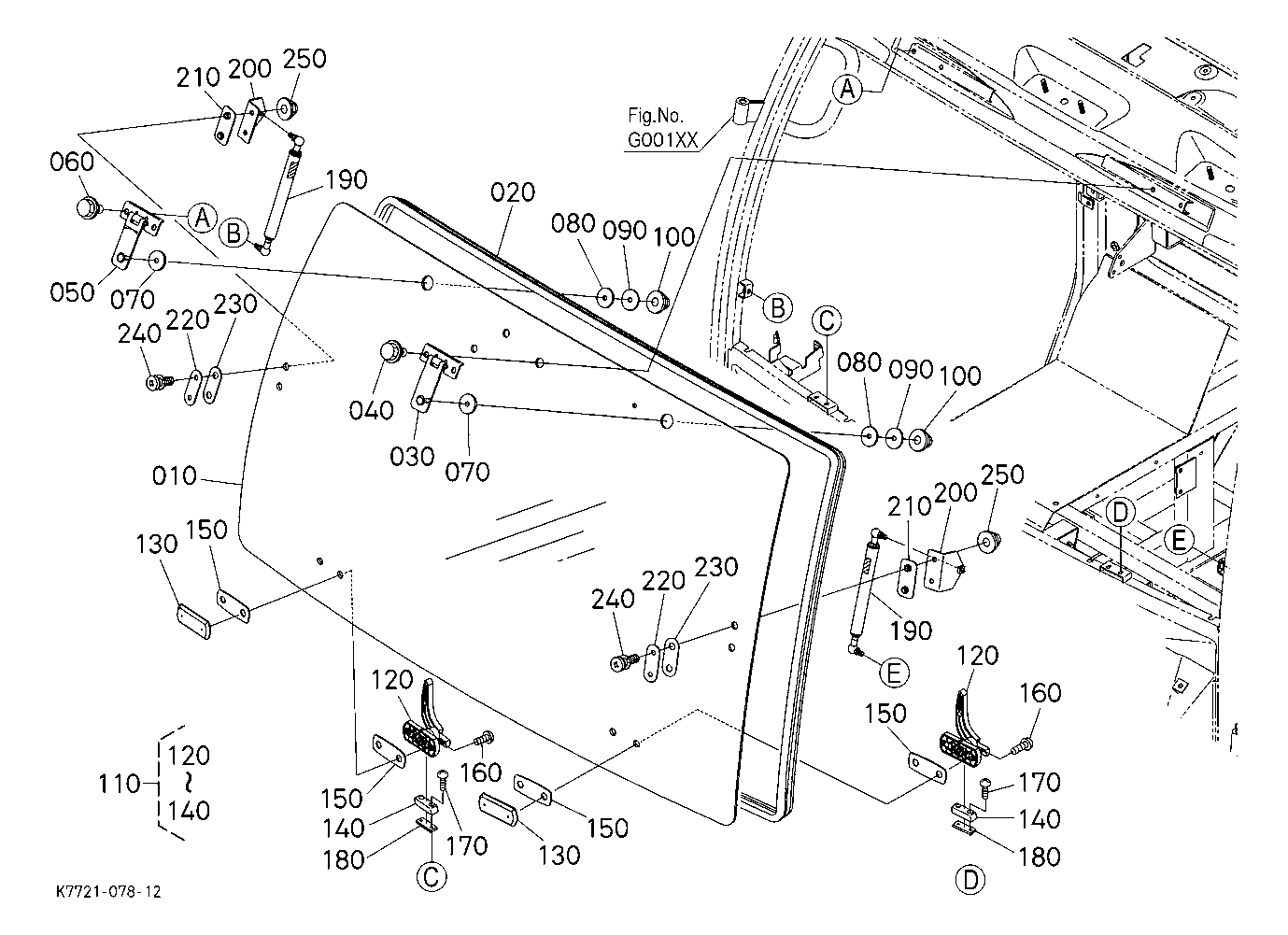

KUBOTA RTV1100CR9 PARTS CABIN N20100 FRONT GLASS
