Ref	Part #	Item	Price
010	1J770-59760	BUSHING	$20.35
020	11233-91500	STUD	$1.98
030	1J775-33360	BOLT,CONNECT.	$11.63
040	15021-33660	GASKET, COPPER *	$0.99
050	1J770-59660	SENSOR (NE)	$134.71
060	1J574-96760	O RING	$11.11
070, 190	01754-50616	BOLT M6x1.0x16 mm ***	$1.55
080	1J574-59710	SENSOR (G)	$217.89
090	1J574-96750	O-RING	$11.11
100	02751-50060	NUT, FLANGE	$0.99
110	5H601-41940	SENSOR, WATER TEMPERATURE	$72.65
120	04717-01200	WASHER, w/RUBBER ***	$1.49
130	T1850-39010	SWITCH, OIL	$46.70
140	1J500-59670	SENSOR,BOOST	$159.99
150	1J776-18612	BRACKET(P.SENSOR)	$55.39
160	01754-50612	BOLT M6x1.0x12 mm ***	$1.17
170	1J770-54560	TUBE,BOOST	$14.91
180	09318-88095	CLAMP, HOSE (BAND)	$3.08
200	1J574-59680	SENSOR	$165.51
210	04724-00160	GASKET, COPPER	$1.32

Ref: 010 Part #: 1J770-59760 Price: $20.35

Item: BUSHING

QTY:

Ref: 020 Part #: 11233-91500 Price: $1.98

Item: STUD

QTY:

Ref: 030 Part #: 1J775-33360 Price: $11.63

Item: BOLT,CONNECT.

QTY:

Ref: 040 Part #: 15021-33660 Price: $0.99

Item: GASKET, COPPER *

QTY:

Ref: 050 Part #: 1J770-59660 Price: $134.71

Item: SENSOR (NE)

QTY:

Ref: 060 Part #: 1J574-96760 Price: $11.11

Item: O RING

QTY:

Ref: 070190 Part #: 01754-50616 Price: $1.55

Item: BOLT M6x1.0x16 mm ***

QTY:

Ref: 080 Part #: 1J574-59710 Price: $217.89

Item: SENSOR (G)

QTY:

Ref: 090 Part #: 1J574-96750 Price: $11.11

Item: O-RING

QTY:

Ref: 100 Part #: 02751-50060 Price: $0.99

Item: NUT, FLANGE

QTY:

Ref: 110 Part #: 5H601-41940 Price: $72.65

Item: SENSOR, WATER TEMPERATURE

QTY:

Ref: 120 Part #: 04717-01200 Price: $1.49

Item: WASHER, w/RUBBER ***

QTY:

Ref: 130 Part #: T1850-39010 Price: $46.70

Item: SWITCH, OIL

QTY:

Ref: 140 Part #: 1J500-59670 Price: $159.99

Item: SENSOR,BOOST

QTY:

Ref: 150 Part #: 1J776-18612 Price: $55.39

Item: BRACKET(P.SENSOR)

QTY:

Ref: 160 Part #: 01754-50612 Price: $1.17

Item: BOLT M6x1.0x12 mm ***

QTY:

Ref: 170 Part #: 1J770-54560 Price: $14.91

Item: TUBE,BOOST

QTY:

Ref: 180 Part #: 09318-88095 Price: $3.08

Item: CLAMP, HOSE (BAND)

QTY:

Ref: 200 Part #: 1J574-59680 Price: $165.51

Item: SENSOR

QTY:

Ref: 210 Part #: 04724-00160 Price: $1.32

Item: GASKET, COPPER

QTY:

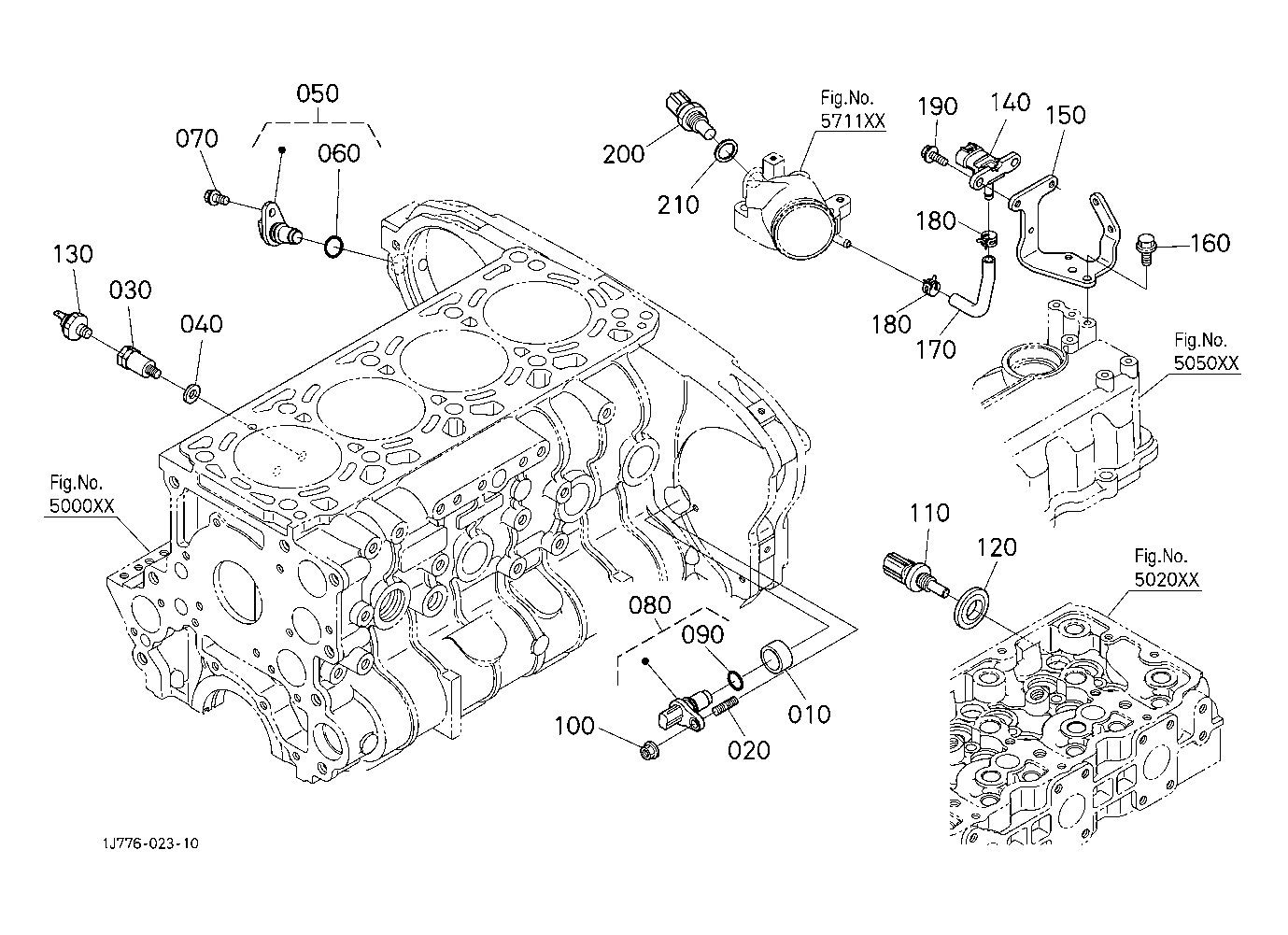

KUBOTA SSV75(S N;50001 ) PARTS ELECTRICAL SYSTEM B39000 OIL SWITCH THERMOMETER
