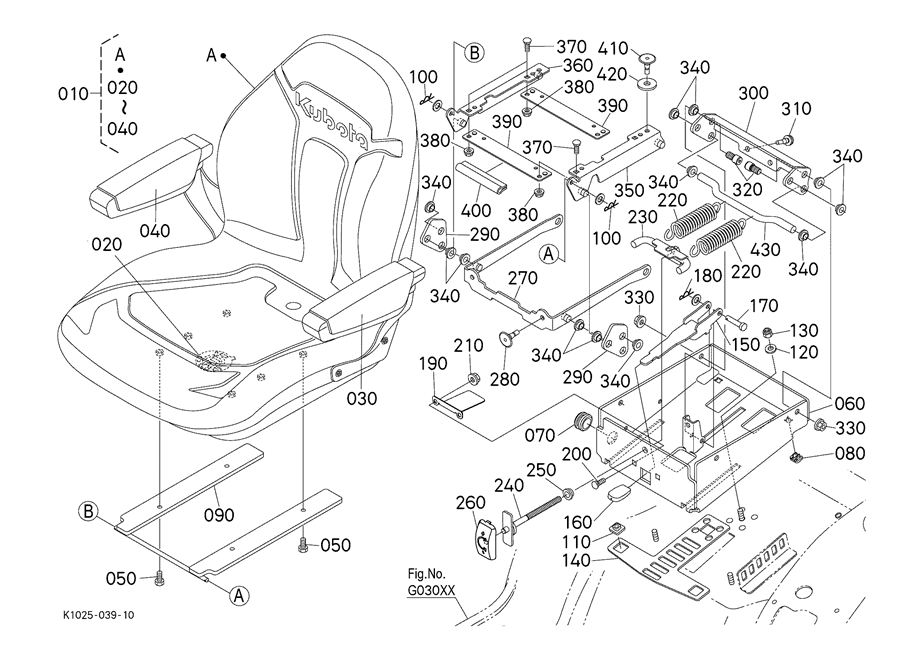

KUBOTA T2290KW PARTS SEAT G04002 SEAT

    KUBOTA >kubota-t2290kw-parts-seat-g04002-seat
    Ref: 010  Part #: K1035-56013  Price: $474.30

    Item: SEAT,ASSY(21,ARMREST

    QTY:
    Ref: 020  Part #: K1025-56910  Price: $110.47

    Item: SWITCH(SEAT)

    QTY:
    Ref: 030  Part #: K1035-56810  Price: $168.60

    Item: ARMREST(LH)

    QTY:
    Ref: 040  Part #: K1035-56820  Price: $168.60

    Item: ARMREST(RH)

    QTY:
    Ref: 050  Part #: 01153-50820  Price: $0.99

    Item: BOLT M8x1.25x20 mm ***

    QTY:
    Ref: 060  Part #: K1035-56112  Price: $38.76

    Item: BASE SEAT(GRAY)

    QTY:
    Ref: 070  Part #: K1035-56330  Price: $1.08

    Item: GROMMET(SEAT)

    QTY:
    Ref: 080  Part #: K1035-56150  Price: $2.01

    Item: BUSHING,SEAT *

    QTY:
    Ref: 090  Part #: K1035-56132  Price: $73.91

    Item: PLATE(PIVOT,SEAT) ***

    QTY:
    Ref: 095  Part #: K1035-56390  Price: $14.78

    Item: COVER(SUSPENSION)

    QTY:
    Ref: 096  Part #: K1211-84560  Price: $1.94

    Item: RIVET,1/4 PUSH *

    QTY:
    Ref: 100  Part #: K1211-91122  Price: $0.99

    Item: COTTER, RUE RING

    QTY:
    Ref: 110  Part #: K1035-56140  Price: $3.21

    Item: COLLAR(SEAT,SLIDE)

    QTY:
    Ref: 120  Part #: 04013-50080  Price: $0.99

    Item: WASHER, M8 PLAIN ***

    QTY:
    Ref: 130  Part #: K5112-72842  Price: $0.99

    Item: NUT,HEX M8x1.25 LOCK

    QTY:
    Ref: 140  Part #: K1035-56190  Price: $16.90

    Item: BRACKET(LOCK)

    QTY:
    Ref: 150  Part #: K1035-56172  Price: $24.99

    Item: LEVER(LOCK)

    QTY:
    Ref: 160  Part #: K2563-37370  Price: $1.03

    Item: GRIP, LEVER AUX ***

    QTY:
    Ref: 170  Part #: 05122-50840  Price: $1.49

    Item: PIN, JOINT ***

    QTY:
    Ref: 180  Part #: K1211-91132  Price: $0.99

    Item: COTTER, RUE RING

    QTY:
    Ref: 190  Part #: K1035-56180  Price: $10.29

    Item: SPRING,LOCK *

    QTY:
    Ref: 200370  Part #: K1122-91312  Price: $0.99

    Item: BOLT,M8x1.25 SHORT SQU NECK

    QTY:
    Ref: 210380  Part #: 02751-50080  Price: $3.05

    Item: NUT,HEX M8X1.25 FLANGE 4T

    QTY:
    Ref: 220  Part #: K1035-56270  Price: $58.35

    Item: SPRING,SUSPENSION

    QTY:
    Ref: 230  Part #: K1035-56230  Price: $23.57

    Item: BRACKET,SPRING *

    QTY:
    Ref: 240  Part #: K1035-56220  Price: $17.86

    Item: ROD(M10) *

    QTY:
    Ref: 250  Part #: K1035-56320  Price: $3.57

    Item: BUSHING(FLANGE,8*7)

    QTY:
    Ref: 260  Part #: K1035-56310  Price: $4.57

    Item: HANDLE,SUSPENSION *

    QTY:
    Ref: 270  Part #: K1035-56260  Price: $22.81

    Item: LINK(SIDE) ***

    QTY:
    Ref: 280410  Part #: K3211-53190  Price: $0.99

    Item: CUSHION, STEP * ***

    QTY:
    Ref: 290  Part #: K1035-56342  Price: $6.78

    Item: LINK

    QTY:
    Ref: 300  Part #: K1035-56360  Price: $27.53

    Item: LINK(2)

    QTY:
    Ref: 310  Part #: K3181-56460  Price: $1.06

    Item: CUSHION

    QTY:
    Ref: 320  Part #: K1035-56250  Price: $4.37

    Item: BOLT(SHOULDER)

    QTY:
    Ref: 330  Part #: 02771-50100  Price: $1.94

    Item: NUT, FLANGE M10X1.25 4T ***

    QTY:
    Ref: 340  Part #: K1035-56240  Price: $2.37

    Item: BUSHING(FLANGE,1/2*1 ***

    QTY:
    Ref: 350  Part #: K1035-56200  Price: $24.75

    Item: LINK,TOP,LH *

    QTY:
    Ref: 360  Part #: K1035-56210  Price: $24.75

    Item: LINK,TOP,RH *

    QTY:
    Ref: 390  Part #: K1035-56370  Price: $5.52

    Item: BRACKET,TOP

    QTY:
    Ref: 400  Part #: K7711-41332  Price: $2.72

    Item: TRIM, STEERING POST

    QTY:
    Ref: 420  Part #: 04015-50100  Price: $0.99

    Item: WASHER, PLAIN *** ***

    QTY:
    Ref: 430  Part #: K1035-56290  Price: $6.51

    Item: ROD(SUSPENSION)
