KUBOTA | Buy Direct | Order Online

Ref	Part #	Item	Price
010	RH418-42330	HOSE,WP,UPPER	$44.88
050	RH418-42340	HOSE,WP,LOWER	$69.02
060	69741-72824	HOSE,CLAMP 25-40 MM	$5.87
070	RH418-42360	HOSE,WP,DRAIN	$20.58
080	69741-72873	HOSE, CLAMP	$5.31
090	RH418-42390	BASE,DRAIN	$37.60
100	04717-01000	WASHER, SEAL W/RUBBER	$1.49
110	06331-45010	PLUG	$2.23
120	01135-51020	BOLT M10x1.25x20 mm ***	$1.31
130	RH418-92240	PLATE(PARTITION,UPPER,KIT,A)	$31.72
140	RH418-42572	ABSORBER,SOUND,PARTI	$17.81
150	01025-50616	BOLT M6x1.0x16 mm ***	$0.99
160	RH418-41420	GROMMET,ARCH	$8.37
170	RB411-42660	ASSY TANK, RESERVE	$118.35
180	15531-72410	BODY, TANK	$78.68
190	RB411-42670	ASSY CAP	$42.92
200	15531-72422	CAP *	$4.77
210	15531-72432	GASKET NA	$3.63
220	RC301-47480	TUBE, OVERFLOW	$9.09
230	3A111-17330	TUBE, WATER	$46.17
240	15501-72470	CLIP, PIPE	$3.04
250	69481-11190	BAND, INLET BLACK ***	$2.42
260	RH418-42530	STAY,RESERVE TANK	$95.70
270	RH418-42540	LOCK,TANK STAY	$12.51
280	09664-80040	TUBE, FUEL	$1.52
290	04011-50140	WASHER, PLAIN-CREEP SPD KIT ***	$0.99
300	05525-51400	PIN, SNAP ***	$1.49
310	RH418-58240	LABEL,CAUTION,BURN	$3.67

Ref: 010 Part #: RH418-42330 Price: $44.88

Item: HOSE,WP,UPPER

QTY:

Ref: 050 Part #: RH418-42340 Price: $69.02

Item: HOSE,WP,LOWER

QTY:

Ref: 060 Part #: 69741-72824 Price: $5.87

Item: HOSE,CLAMP 25-40 MM

QTY:

Ref: 070 Part #: RH418-42360 Price: $20.58

Item: HOSE,WP,DRAIN

QTY:

Ref: 080 Part #: 69741-72873 Price: $5.31

Item: HOSE, CLAMP

QTY:

Ref: 090 Part #: RH418-42390 Price: $37.60

Item: BASE,DRAIN

QTY:

Ref: 100 Part #: 04717-01000 Price: $1.49

Item: WASHER, SEAL W/RUBBER

QTY:

Ref: 110 Part #: 06331-45010 Price: $2.23

Item: PLUG

QTY:

Ref: 120 Part #: 01135-51020 Price: $1.31

Item: BOLT M10x1.25x20 mm ***

QTY:

Ref: 130 Part #: RH418-92240 Price: $31.72

Item: PLATE(PARTITION,UPPER,KIT,A)

QTY:

Ref: 140 Part #: RH418-42572 Price: $17.81

Item: ABSORBER,SOUND,PARTI

QTY:

Ref: 150 Part #: 01025-50616 Price: $0.99

Item: BOLT M6x1.0x16 mm ***

QTY:

Ref: 160 Part #: RH418-41420 Price: $8.37

Item: GROMMET,ARCH

QTY:

Ref: 170 Part #: RB411-42660 Price: $118.35

Item: ASSY TANK, RESERVE

QTY:

Ref: 180 Part #: 15531-72410 Price: $78.68

Item: BODY, TANK

QTY:

Ref: 190 Part #: RB411-42670 Price: $42.92

Item: ASSY CAP

QTY:

Ref: 200 Part #: 15531-72422 Price: $4.77

Item: CAP *

QTY:

Ref: 210 Part #: 15531-72432 Price: $3.63

Item: GASKET NA

QTY:

Ref: 220 Part #: RC301-47480 Price: $9.09

Item: TUBE, OVERFLOW

QTY:

Ref: 230 Part #: 3A111-17330 Price: $46.17

Item: TUBE, WATER

QTY:

Ref: 240 Part #: 15501-72470 Price: $3.04

Item: CLIP, PIPE

QTY:

Ref: 250 Part #: 69481-11190 Price: $2.42

Item: BAND, INLET BLACK ***

QTY:

Ref: 260 Part #: RH418-42530 Price: $95.70

Item: STAY,RESERVE TANK

QTY:

Ref: 270 Part #: RH418-42540 Price: $12.51

Item: LOCK,TANK STAY

QTY:

Ref: 280 Part #: 09664-80040 Price: $1.52

Item: TUBE, FUEL

QTY:

Ref: 290 Part #: 04011-50140 Price: $0.99

Item: WASHER, PLAIN-CREEP SPD KIT ***

QTY:

Ref: 300 Part #: 05525-51400 Price: $1.49

Item: PIN, SNAP ***

QTY:

Ref: 310 Part #: RH418-58240 Price: $3.67

Item: LABEL,CAUTION,BURN

QTY:

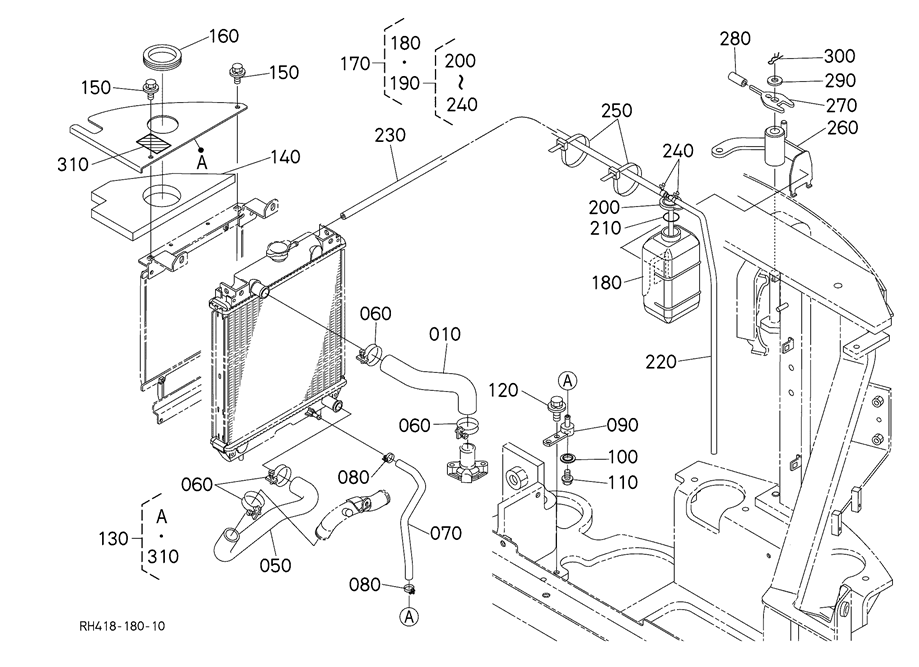

KUBOTA U27 4 PARTS ENGINE 051301 WATER PIPE AND RESERVE TANK
