Ref	Part #	Item	Price
001	RC418-92890	KIT BONNET REAR(B)	Call for price
001	RC448-92890	KIT BONNET REAR(B)	Call for price
002	RC418-58250	LABEL	$39.25
003	RC108-57140	LABEL, WARNING *	$5.55
010	RC448-91210	BONNET, KIT (A, REAR)	$1,338.84
010	RC418-91210	BONNET KIT, REAR (A) ***	$1,219.87
011	RC418-57250	LABEL, WARNING *	$6.81
012	RC108-57140	LABEL, WARNING *	$5.55
020	RC411-43452	STAY 1, LOCK	$27.47
030	01754-50816	BOLT M8x1.25x16 mm ***	$2.86
040	RB101-43420	HOOK	$104.84
050	01754-50616	BOLT M6x1.0x16 mm ***	$1.55
060	RC411-43544	ASSY LOCK, CYLINDER	$41.29
070	RC411-43550	ASSY COVER, LOCK	$13.12
080	RC411-43580	PLATE, LOCK	$19.62
090	RC411-43600	SCREW, TAPING	$15.51
100	RC418-91280	KIT, SUPPORT GAS DAMPER	$50.54
105	RC418-57382	LABEL, MUFFLER ***	$2.10
110	HRC40-43400	DAMPER(GAS)	$315.28
120	02751-70080	NUT, FLANGE	$3.05
130	RC411-43480	SUPPORT 3, BONNET	$20.20
140	01123-70820	BOLT M8x1.25x20 mm	$0.99
150	RC411-43467	STAY 2, LOCK	$22.68
160, 210	01135-71020	BOLT M10x1.25x20 mm	$1.31
170	RC441-43510	KIT LOCK, BONNET	$233.82
180	RD411-43542	ASSY LOCK, BONNET	$167.15
190	RC441-43453	BRACKET LOCK	$27.41
200	RD411-43460	STAY 2, LOCK	$17.54

Ref: 001 Part #: RC418-92890 Price: Call for price

Item: KIT BONNET REAR(B)

QTY:

Ref: 001 Part #: RC448-92890 Price: Call for price

Item: KIT BONNET REAR(B)

QTY:

Ref: 002 Part #: RC418-58250 Price: $39.25

Item: LABEL

QTY:

Ref: 003 Part #: RC108-57140 Price: $5.55

Item: LABEL, WARNING *

QTY:

Ref: 010 Part #: RC448-91210 Price: $1,338.84

Item: BONNET, KIT (A, REAR)

QTY:

Ref: 010 Part #: RC418-91210 Price: $1,219.87

Item: BONNET KIT, REAR (A) ***

QTY:

Ref: 011 Part #: RC418-57250 Price: $6.81

Item: LABEL, WARNING *

QTY:

Ref: 012 Part #: RC108-57140 Price: $5.55

Item: LABEL, WARNING *

QTY:

Ref: 020 Part #: RC411-43452 Price: $27.47

Item: STAY 1, LOCK

QTY:

Ref: 030 Part #: 01754-50816 Price: $2.86

Item: BOLT M8x1.25x16 mm ***

QTY:

Ref: 040 Part #: RB101-43420 Price: $104.84

Item: HOOK

QTY:

Ref: 050 Part #: 01754-50616 Price: $1.55

Item: BOLT M6x1.0x16 mm ***

QTY:

Ref: 060 Part #: RC411-43544 Price: $41.29

Item: ASSY LOCK, CYLINDER

QTY:

Ref: 070 Part #: RC411-43550 Price: $13.12

Item: ASSY COVER, LOCK

QTY:

Ref: 080 Part #: RC411-43580 Price: $19.62

Item: PLATE, LOCK

QTY:

Ref: 090 Part #: RC411-43600 Price: $15.51

Item: SCREW, TAPING

QTY:

Ref: 100 Part #: RC418-91280 Price: $50.54

Item: KIT, SUPPORT GAS DAMPER

QTY:

Ref: 105 Part #: RC418-57382 Price: $2.10

Item: LABEL, MUFFLER ***

QTY:

Ref: 110 Part #: HRC40-43400 Price: $315.28

Item: DAMPER(GAS)

QTY:

Ref: 120 Part #: 02751-70080 Price: $3.05

Item: NUT, FLANGE

QTY:

Ref: 130 Part #: RC411-43480 Price: $20.20

Item: SUPPORT 3, BONNET

QTY:

Ref: 140 Part #: 01123-70820 Price: $0.99

Item: BOLT M8x1.25x20 mm

QTY:

Ref: 150 Part #: RC411-43467 Price: $22.68

Item: STAY 2, LOCK

QTY:

Ref: 160210 Part #: 01135-71020 Price: $1.31

Item: BOLT M10x1.25x20 mm

QTY:

Ref: 170 Part #: RC441-43510 Price: $233.82

Item: KIT LOCK, BONNET

QTY:

Ref: 180 Part #: RD411-43542 Price: $167.15

Item: ASSY LOCK, BONNET

QTY:

Ref: 190 Part #: RC441-43453 Price: $27.41

Item: BRACKET LOCK

QTY:

Ref: 200 Part #: RD411-43460 Price: $17.54

Item: STAY 2, LOCK

QTY:

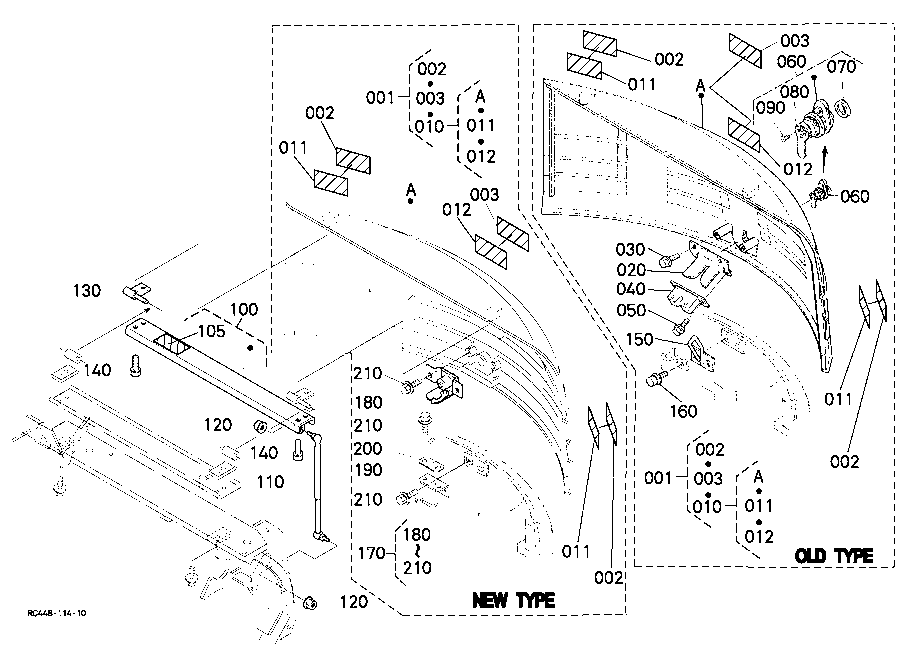

KUBOTA U35 PARTS SWIVEL FRAME K10300 BONNET REAR
