KUBOTA | Buy Direct | Order Online

Ref	Part #	Item	Price
010	RD451-21302	ASSY WHEEL, IDLER	$1,489.07
010	RD461-21300	IDLER,ASSY	$1,444.65
020	RD411-21332	SHAFT,IDLER	$83.63
030	RD451-21372	BRACKET, RH	$252.74
040	RD451-21340	WHEEL, IDLER	$1,085.82
040	RD461-91340	IDLER	$1,051.32
050	68221-14630	SEAL, FLOATING	$66.14
060	RD411-22360	BUSHING *	$86.71
070	04612-00450	CIR-CLIP, EXTERNAL 45mm	$1.49
080	04816-50400	O RING	$2.23
090	RD451-21320	BRACKET, LH	$274.21
100	RD461-21410	PLATE(YOKE)	$203.54
100	RD451-21412	PLATE, YOKE	$198.33
110	01133-51240	BOLT M12x1.25x40 mm ***	$1.68
120	RA111-62470	PLUG, R1/8	$3.34
130	05411-01390	PIN, SPRING	$5.72
140	RD451-21500	ASSY CYLINDER LH	$950.40
150, 250	RD451-21570	ROD	$229.45
160, 260	68271-21550	SEAL,ROD	$21.26
170, 270	04810-00600	O-RING,5.7x59.6	$5.93
180, 280	68271-21560	RING,BACK UP	$10.64
190, 290	RC461-21550	ASSY NIPPLE, IDLER	$58.12
200, 300	68371-21572	SPRING	$3.28
210, 310	RC101-21590	BALL	$1.70
220, 320	68541-21610	PLUG	$5.55
230, 330	06611-15010	NIPPLE,GREASE	$2.34
240	RD451-21550	ASSY CYLINDER RH	$950.40
340	RD451-21453	ASSY SPRING,STEEL	$821.78
340	RD451-21403	ASSY SPRING *	$687.35
350	RD451-21443	BOLT,SPRING *	$192.85
360	RD411-21420	SPRING	$283.37
370	RD451-21430	RETAINER, SPRING	$111.86
380	RD451-21460	NUT	$43.71
390	05511-50655	PIN SPLIT	$0.99

Ref: 010 Part #: RD451-21302 Price: $1,489.07

Item: ASSY WHEEL, IDLER

QTY:

Ref: 010 Part #: RD461-21300 Price: $1,444.65

Item: IDLER,ASSY

QTY:

Ref: 020 Part #: RD411-21332 Price: $83.63

Item: SHAFT,IDLER

QTY:

Ref: 030 Part #: RD451-21372 Price: $252.74

Item: BRACKET, RH

QTY:

Ref: 040 Part #: RD451-21340 Price: $1,085.82

Item: WHEEL, IDLER

QTY:

Ref: 040 Part #: RD461-91340 Price: $1,051.32

Item: IDLER

QTY:

Ref: 050 Part #: 68221-14630 Price: $66.14

Item: SEAL, FLOATING

QTY:

Ref: 060 Part #: RD411-22360 Price: $86.71

Item: BUSHING *

QTY:

Ref: 070 Part #: 04612-00450 Price: $1.49

Item: CIR-CLIP, EXTERNAL 45mm

QTY:

Ref: 080 Part #: 04816-50400 Price: $2.23

Item: O RING

QTY:

Ref: 090 Part #: RD451-21320 Price: $274.21

Item: BRACKET, LH

QTY:

Ref: 100 Part #: RD461-21410 Price: $203.54

Item: PLATE(YOKE)

QTY:

Ref: 100 Part #: RD451-21412 Price: $198.33

Item: PLATE, YOKE

QTY:

Ref: 110 Part #: 01133-51240 Price: $1.68

Item: BOLT M12x1.25x40 mm ***

QTY:

Ref: 120 Part #: RA111-62470 Price: $3.34

Item: PLUG, R1/8

QTY:

Ref: 130 Part #: 05411-01390 Price: $5.72

Item: PIN, SPRING

QTY:

Ref: 140 Part #: RD451-21500 Price: $950.40

Item: ASSY CYLINDER LH

QTY:

Ref: 150250 Part #: RD451-21570 Price: $229.45

Item: ROD

QTY:

Ref: 160260 Part #: 68271-21550 Price: $21.26

Item: SEAL,ROD

QTY:

Ref: 170270 Part #: 04810-00600 Price: $5.93

Item: O-RING,5.7x59.6

QTY:

Ref: 180280 Part #: 68271-21560 Price: $10.64

Item: RING,BACK UP

QTY:

Ref: 190290 Part #: RC461-21550 Price: $58.12

Item: ASSY NIPPLE, IDLER

QTY:

Ref: 200300 Part #: 68371-21572 Price: $3.28

Item: SPRING

QTY:

Ref: 210310 Part #: RC101-21590 Price: $1.70

Item: BALL

QTY:

Ref: 220320 Part #: 68541-21610 Price: $5.55

Item: PLUG

QTY:

Ref: 230330 Part #: 06611-15010 Price: $2.34

Item: NIPPLE,GREASE

QTY:

Ref: 240 Part #: RD451-21550 Price: $950.40

Item: ASSY CYLINDER RH

QTY:

Ref: 340 Part #: RD451-21453 Price: $821.78

Item: ASSY SPRING,STEEL

QTY:

Ref: 340 Part #: RD451-21403 Price: $687.35

Item: ASSY SPRING *

QTY:

Ref: 350 Part #: RD451-21443 Price: $192.85

Item: BOLT,SPRING *

QTY:

Ref: 360 Part #: RD411-21420 Price: $283.37

Item: SPRING

QTY:

Ref: 370 Part #: RD451-21430 Price: $111.86

Item: RETAINER, SPRING

QTY:

Ref: 380 Part #: RD451-21460 Price: $43.71

Item: NUT

QTY:

Ref: 390 Part #: 05511-50655 Price: $0.99

Item: PIN SPLIT

QTY:

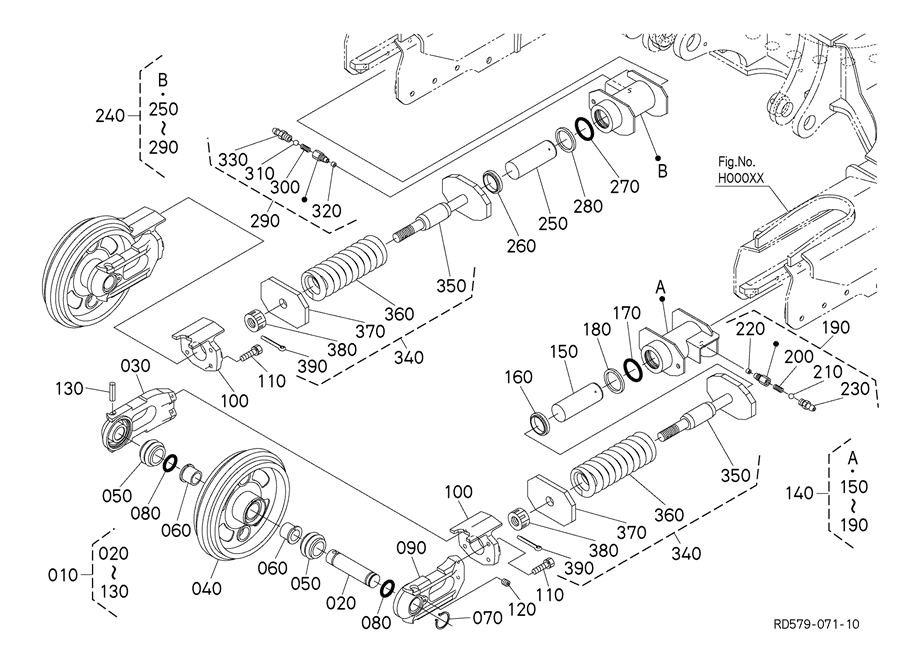

KUBOTA U55 5 PARTS TRACK FRAME H10000 IDLER
