Ref	Part #	Item	Price
001	E7173-00551	CRANKCASE,ASSY	Call for price
010	E7185-36550	PIN, LOCATING ***	$6.91
020	E7185-36510	SEAL, OIL (HELIX LIP) ***	$8.60
030	E7192-21330	RETAINER, PISTON PIN ***	$5.21
040	E7182-00060	RING SET,+0.50	$191.45
040	E7182-00030	RING SET,STD 1.2mm Tp THICK	$91.18
040	E7182-00050	RING SET,+0.25	$48.54
040	E7182-00040	RING SET,+0.08 (1.2mm Tp THICK) ***	$51.48
050	E7173-00030	KIT PISTON,w/RINGS (B,0.08) 725CC	$501.87
050	E7173-00040	KIT PISTON,725CC (+0.25)	$501.87
050	E7173-00020	KIT PISTON,725CC (STD)	$388.64
050	E7173-00050	KIT PISTON,725CC (+0.50)	$501.87
060	E7185-30040	ASSY ROD, CONNECTING (STD)	$106.88
060	E7176-00030	ASSY ROD, CONNECTING-USE 24 06 ***	$91.45
070	E7192-19110	RETAINER, RING	$5.21
080	E7192-56160	WASHER, PLAIN 1/4	$5.21
090	E7192-56180	SEAL, GOVERNOR CROSS SHAFT ***	$7.25
100	E7192-56170	SHAFT, GOVERNOR CROSS	$102.41
110	E7192-56190	WASHER, 9mm PLAIN ***	$5.21
120	E7176-00220	SCREW, THREAD FORMING	$5.82
130	E7172-00060	O-RING ***	$5.21
140	E7187-30100	O-RING	$7.35
150	E7159-10090	DIP STICK	$18.94
150	E7159-10090	DIP STICK	$18.94
160	E7172-00080	ASSY TUBE,OIL FILL	$13.77
170	E7172-00090	ASSY CAMSHAFT	$227.60
170	E7172-10010	CAMSHAFT ASSEMBLY	$102.68
180	E7172-00100	SCREW,HEX FLANGE w/PATCH DOG POINT	$3.87

Ref: 001 Part #: E7173-00551 Price: Call for price

Item: CRANKCASE,ASSY

QTY:

Ref: 010 Part #: E7185-36550 Price: $6.91

Item: PIN, LOCATING ***

QTY:

Ref: 020 Part #: E7185-36510 Price: $8.60

Item: SEAL, OIL (HELIX LIP) ***

QTY:

Ref: 030 Part #: E7192-21330 Price: $5.21

Item: RETAINER, PISTON PIN ***

QTY:

Ref: 040 Part #: E7182-00060 Price: $191.45

Item: RING SET,+0.50

QTY:

Ref: 040 Part #: E7182-00030 Price: $91.18

Item: RING SET,STD 1.2mm Tp THICK

QTY:

Ref: 040 Part #: E7182-00050 Price: $48.54

Item: RING SET,+0.25

QTY:

Ref: 040 Part #: E7182-00040 Price: $51.48

Item: RING SET,+0.08 (1.2mm Tp THICK) ***

QTY:

Ref: 050 Part #: E7173-00030 Price: $501.87

Item: KIT PISTON,w/RINGS (B,0.08) 725CC

QTY:

Ref: 050 Part #: E7173-00040 Price: $501.87

Item: KIT PISTON,725CC (+0.25)

QTY:

Ref: 050 Part #: E7173-00020 Price: $388.64

Item: KIT PISTON,725CC (STD)

QTY:

Ref: 050 Part #: E7173-00050 Price: $501.87

Item: KIT PISTON,725CC (+0.50)

QTY:

Ref: 060 Part #: E7185-30040 Price: $106.88

Item: ASSY ROD, CONNECTING (STD)

QTY:

Ref: 060 Part #: E7176-00030 Price: $91.45

Item: ASSY ROD, CONNECTING-USE 24 06 ***

QTY:

Ref: 070 Part #: E7192-19110 Price: $5.21

Item: RETAINER, RING

QTY:

Ref: 080 Part #: E7192-56160 Price: $5.21

Item: WASHER, PLAIN 1/4

QTY:

Ref: 090 Part #: E7192-56180 Price: $7.25

Item: SEAL, GOVERNOR CROSS SHAFT ***

QTY:

Ref: 100 Part #: E7192-56170 Price: $102.41

Item: SHAFT, GOVERNOR CROSS

QTY:

Ref: 110 Part #: E7192-56190 Price: $5.21

Item: WASHER, 9mm PLAIN ***

QTY:

Ref: 120 Part #: E7176-00220 Price: $5.82

Item: SCREW, THREAD FORMING

QTY:

Ref: 130 Part #: E7172-00060 Price: $5.21

Item: O-RING ***

QTY:

Ref: 140 Part #: E7187-30100 Price: $7.35

Item: O-RING

QTY:

Ref: 150 Part #: E7159-10090 Price: $18.94

Item: DIP STICK

QTY:

Ref: 150 Part #: E7159-10090 Price: $18.94

Item: DIP STICK

QTY:

Ref: 160 Part #: E7172-00080 Price: $13.77

Item: ASSY TUBE,OIL FILL

QTY:

Ref: 170 Part #: E7172-00090 Price: $227.60

Item: ASSY CAMSHAFT

QTY:

Ref: 170 Part #: E7172-10010 Price: $102.68

Item: CAMSHAFT ASSEMBLY

QTY:

Ref: 180 Part #: E7172-00100 Price: $3.87

Item: SCREW,HEX FLANGE w/PATCH DOG POINT

QTY:

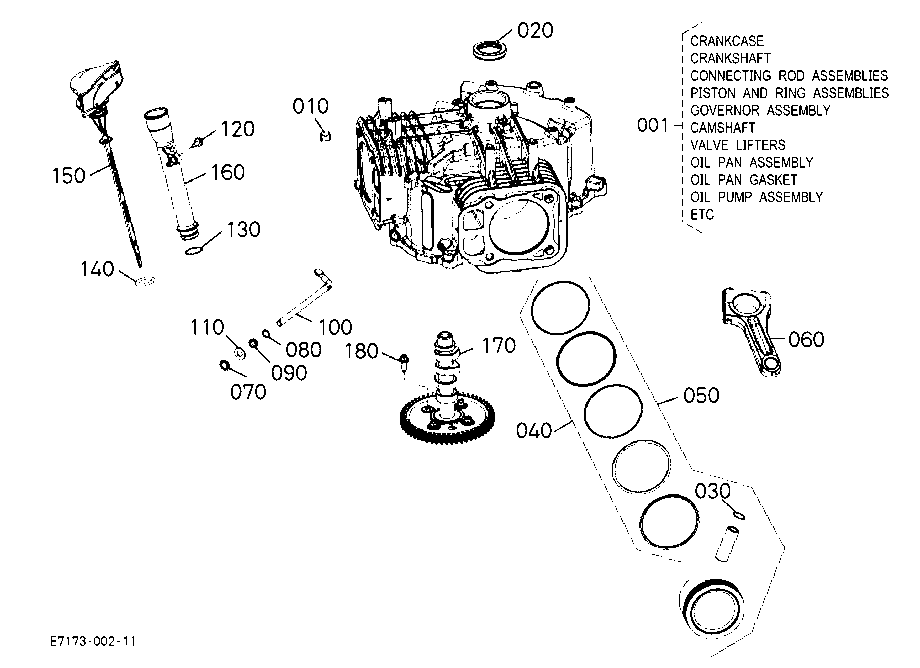

KUBOTA Z121SKH PARTS ENGINE 100200 CRANKCASE
