Ref	Part #	Item	Price
010	K3811-56270	ASSY SUSPENSION, SEAT	$389.66
020	K3181-56610	KIT KNOB, SUSPENSION	$33.55
030	K3181-56620	KIT BUSHING, SUSPENSION	$77.25
040	K3181-56710	KIT BUMPER ***	$16.71
050	02751-50080	NUT,HEX M8X1.25 FLANGE 4T	$3.05
060	K3021-56310	BASE(SEAT, S)	$134.32
070	K1122-91320	BOLT, M8x1.25 SHORT SQ NECK	$2.60
075	K1122-91332	BOLT,M8x1.25 SHORT SQ NECK ***	$0.99
080	K2511-55582	NUT, LOCK FLANGE	$0.99
090	K3211-53190	CUSHION, STEP * ***	$0.99
100	K3071-56412	LOCK, SEAT * ***	$17.19
110	K1211-91132	COTTER, RUE RING	$0.99
120	K3011-56460	SPRING, SEAT,LATCH	$1.56

Ref: 010 Part #: K3811-56270 Price: $389.66

Item: ASSY SUSPENSION, SEAT

QTY:

Ref: 020 Part #: K3181-56610 Price: $33.55

Item: KIT KNOB, SUSPENSION

QTY:

Ref: 030 Part #: K3181-56620 Price: $77.25

Item: KIT BUSHING, SUSPENSION

QTY:

Ref: 040 Part #: K3181-56710 Price: $16.71

Item: KIT BUMPER ***

QTY:

Ref: 050 Part #: 02751-50080 Price: $3.05

Item: NUT,HEX M8X1.25 FLANGE 4T

QTY:

Ref: 060 Part #: K3021-56310 Price: $134.32

Item: BASE(SEAT, S)

QTY:

Ref: 070 Part #: K1122-91320 Price: $2.60

Item: BOLT, M8x1.25 SHORT SQ NECK

QTY:

Ref: 075 Part #: K1122-91332 Price: $0.99

Item: BOLT,M8x1.25 SHORT SQ NECK ***

QTY:

Ref: 080 Part #: K2511-55582 Price: $0.99

Item: NUT, LOCK FLANGE

QTY:

Ref: 090 Part #: K3211-53190 Price: $0.99

Item: CUSHION, STEP * ***

QTY:

Ref: 100 Part #: K3071-56412 Price: $17.19

Item: LOCK, SEAT * ***

QTY:

Ref: 110 Part #: K1211-91132 Price: $0.99

Item: COTTER, RUE RING

QTY:

Ref: 120 Part #: K3011-56460 Price: $1.56

Item: SPRING, SEAT,LATCH

QTY:

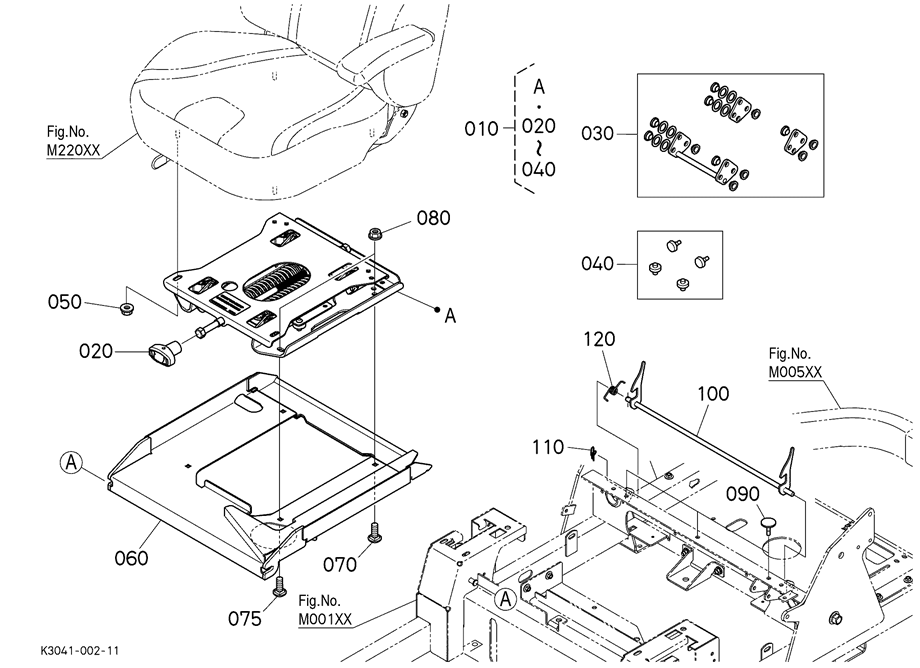

KUBOTA Z231KH PARTS BONNET M22102 SEAT SUSPENSION
