Ref	Part #	Item	Price
001	K3011-96200	KIT SWITCH,STARTER ***	$105.86
010	K3011-62160	ASSY SWITCH,STARTER ***	$2.20
020	K3011-62170	SWITCH(STARTER)	$15.54
025	K3011-62180	ASSY KEY, STARTER	$6.29
035	K3011-62180	ASSY KEY, STARTER	$6.29
040	K3011-62410	SWITCH NO,NC COVER	$27.19
041	K3011-62210	SWITCH, NO NC	$19.59
042	K3011-62410	SWITCH NO,NC COVER	$27.19
050	K3011-62270	SWITCH(NO)	$15.37
060	K3011-62320	SWITCH(PTO) *	$47.71
065	K1310-57150	CAP	$1.35
070	K3181-62330	RELAY * *	$15.46
080	03024-50516	SCREW, M5x0.8x16 w/WASHER ***	$0.99
090	02761-50050	NUT,M5 FLANGE ***	$0.99
100	K3011-62510	METER, HOUR	$29.79
110	K3011-55184	PLATE,CONTROL	$21.57
120	02552-50050	NUT, LOCK	$0.99

Ref: 001 Part #: K3011-96200 Price: $105.86

Item: KIT SWITCH,STARTER ***

QTY:

Ref: 010 Part #: K3011-62160 Price: $2.20

Item: ASSY SWITCH,STARTER ***

QTY:

Ref: 020 Part #: K3011-62170 Price: $15.54

Item: SWITCH(STARTER)

QTY:

Ref: 025 Part #: K3011-62180 Price: $6.29

Item: ASSY KEY, STARTER

QTY:

Ref: 035 Part #: K3011-62180 Price: $6.29

Item: ASSY KEY, STARTER

QTY:

Ref: 040 Part #: K3011-62410 Price: $27.19

Item: SWITCH NO,NC COVER

QTY:

Ref: 041 Part #: K3011-62210 Price: $19.59

Item: SWITCH, NO NC

QTY:

Ref: 042 Part #: K3011-62410 Price: $27.19

Item: SWITCH NO,NC COVER

QTY:

Ref: 050 Part #: K3011-62270 Price: $15.37

Item: SWITCH(NO)

QTY:

Ref: 060 Part #: K3011-62320 Price: $47.71

Item: SWITCH(PTO) *

QTY:

Ref: 065 Part #: K1310-57150 Price: $1.35

Item: CAP

QTY:

Ref: 070 Part #: K3181-62330 Price: $15.46

Item: RELAY *** ***

QTY:

Ref: 080 Part #: 03024-50516 Price: $0.99

Item: SCREW, M5x0.8x16 w/WASHER ***

QTY:

Ref: 090 Part #: 02761-50050 Price: $0.99

Item: NUT,M5 FLANGE ***

QTY:

Ref: 100 Part #: K3011-62510 Price: $29.79

Item: METER, HOUR

QTY:

Ref: 110 Part #: K3011-55184 Price: $21.57

Item: PLATE,CONTROL

QTY:

Ref: 120 Part #: 02552-50050 Price: $0.99

Item: NUT, LOCK

QTY:

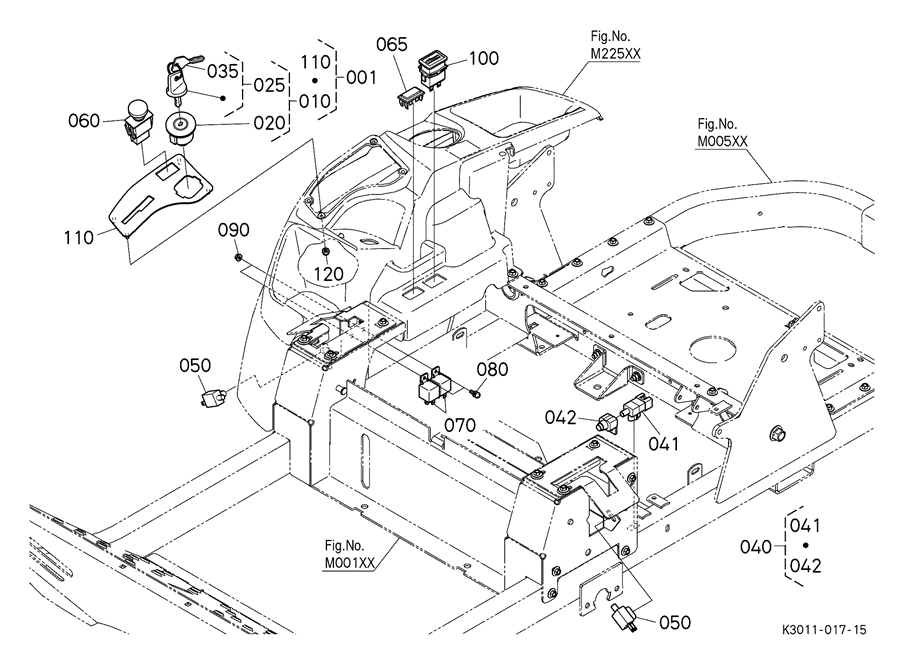

KUBOTA Z251BR PARTS ELECTRICAL SYSTEM B10101 SWITCH METER RELAY
