Ref	Part #	Item	Price
010	K3071-44112	SHAFT,COMP(LIFT,FRON	$205.10
020	K3071-44122	SHAFT,COMP(LIFT,REAR ***	$227.59
030, 080	K1122-91332	BOLT,M8x1.25 SHORT SQ NECK ***	$0.99
040, 090	02751-50080	NUT,HEX M8X1.25 FLANGE 4T	$3.05
050	K3071-44132	LINK MOWER	$19.82
060	K1211-91142	COTTER, RUE RING 1/2	$0.99
070	K3071-44200	PEDAL, LIFT	$10.76
100	05122-71045	PIN,JOINT	$3.19
110	K5142-72732	RING,SNAP, 2	$0.99
120	K3011-44450	ASSY STOPPER, LINK	$90.75
130	05122-50850	PIN, JOINT	$1.94
140	K1211-91122	COTTER, RUE RING	$0.99
150	05122-51025	PIN, JOINT ***	$1.94
160	K1211-91132	COTTER, RUE RING	$0.99

Ref: 010 Part #: K3071-44112 Price: $205.10

Item: SHAFT,COMP(LIFT,FRON

QTY:

Ref: 020 Part #: K3071-44122 Price: $227.59

Item: SHAFT,COMP(LIFT,REAR ***

QTY:

Ref: 030080 Part #: K1122-91332 Price: $0.99

Item: BOLT,M8x1.25 SHORT SQ NECK ***

QTY:

Ref: 040090 Part #: 02751-50080 Price: $3.05

Item: NUT,HEX M8X1.25 FLANGE 4T

QTY:

Ref: 050 Part #: K3071-44132 Price: $19.82

Item: LINK MOWER

QTY:

Ref: 060 Part #: K1211-91142 Price: $0.99

Item: COTTER, RUE RING 1/2

QTY:

Ref: 070 Part #: K3071-44200 Price: $10.76

Item: PEDAL, LIFT

QTY:

Ref: 100 Part #: 05122-71045 Price: $3.19

Item: PIN,JOINT

QTY:

Ref: 110 Part #: K5142-72732 Price: $0.99

Item: RING,SNAP, 2

QTY:

Ref: 120 Part #: K3011-44450 Price: $90.75

Item: ASSY STOPPER, LINK

QTY:

Ref: 130 Part #: 05122-50850 Price: $1.94

Item: PIN, JOINT

QTY:

Ref: 140 Part #: K1211-91122 Price: $0.99

Item: COTTER, RUE RING

QTY:

Ref: 150 Part #: 05122-51025 Price: $1.94

Item: PIN, JOINT ***

QTY:

Ref: 160 Part #: K1211-91132 Price: $0.99

Item: COTTER, RUE RING

QTY:

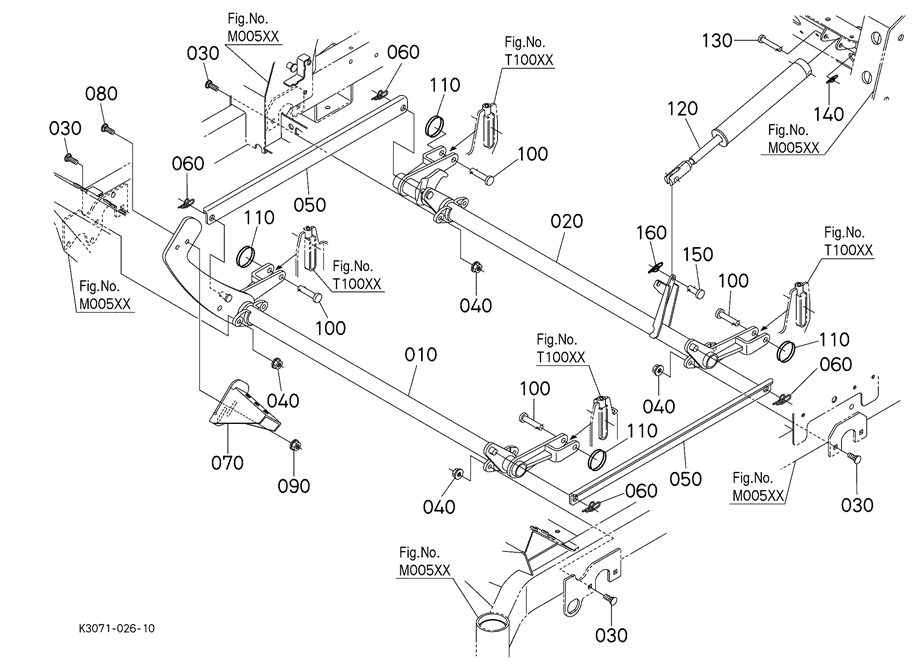

KUBOTA Z411KW PARTS LIFT ROD LOWER LINK L10301 MOWER LIFT ARM
